SAIL-M12W-4-5.0V
SAIL-M12W-4-5.0V
Dimensioned drawing
Male, angled
SAIL-M12W-4-5.0V
Pole scheme
M12 = A-coded
SAIL-M12W-4-5.0V
Wiring diagram

SAIL-M12W-4-5.0V

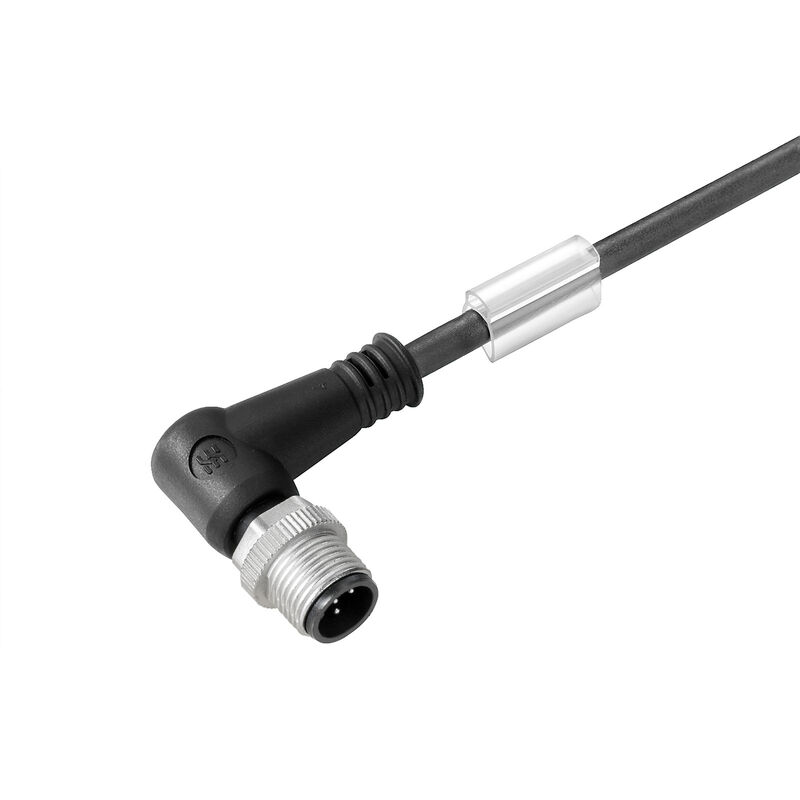

Sensor/actuator line, One end without connector, M12, Number of poles : 4, 5 m, pin, 90°, Shielded: No, LED: No, Sheath material: PVC, Halogen: Yes

Produkt ID 1925520500
Download datablad Engineering-support Produktdownloads
Tilbehør 7 Anvendte produkter 4
Approvals General ordering data Dimensions and weights Environmental Product Compliance Datos técnicos del cable Dati tecnici generali Proprietà elettriche Normes générales Normes Plug, left Plug, right Product images Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Č. osvědčení (cULus)
E307231

General ordering data

Version
Sensor/actuator line, One end without connector, M12, Number of poles : 4, 5 m, pin, 90°, Shielded: No, LED: No, Sheath material: PVC, Halogen: Yes
Číslo objednávky
1925520500
Type
SAIL-M12W-4-5.0V
GTIN (EAN)
4032248570218
Qty.
1 Styk

Dimensions and weights

Net weight
204 g

Environmental Product Compliance

Stav souladu se směrnicí RoHS
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Datos técnicos del cable

Cable length
5 m
Colour coding
brun
blanc
bleu
noir
Configurable cable length
Non
Core cross-section
0,34 mm²
Halogen
Sì
Insulation
PVC
Irradiation crosslinked
아니요
Number of poles
4
Outer cladding in accordance with UL AWM style
2464 (80 °C / 300 V)
Outside diameter
5.3 mm ± 0.2 mm
Resistant to welding beads
No
Sheath material
PVC
Sheathing colour
black
Shielded
No
Suitable for cable carriers
No
Temperature range, moving
-5...80 °C
Temperature range, stationary
-30...80 °C
Torsion resistance
0 °/m
Welding spark resistance
No

Dati tecnici generali

Cykly zapojování
≥ 100
Hlavní materiál krytu
PUR
Jmenovité napětí
250 V
Jmenovitý proud
4 A
Kódování
A-coded
LED
No
Materiál kroužku se závitem
Diecast zinc
Odpor izolace
108 Ω
Povrch kontaktu
Gold-plated
propojeno můstkem
No
Připojovací závit
M12
Rozsah teplot krytu
-25…+85 °C
Stupeň krytí
IP67
IP68
when screwed in
IP65
IP66
Utahovací moment
M12: 0.8 - 1.2 Nm
Verze
pin, 90°
Závažnost znečištění
3

Proprietà elettriche

Insulation resistance
108 Ω
Nominal voltage
250 V

Normes générales

Certificate no. (cULus)
E307231
Connector standard
IEC 61076-2-101

Normes

Connector standard
IEC 61076-2-101

Plug, left

Zástrčka vlevo
M12, A-coded, IP69, male contact, angled 90°, Plastic, unshielded

Plug, right

Zástrčka vpravo
free conductor end

Product images

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
