SAIL-M8BG-4-1.5V
SAIL-M8BG-4-1.5V
Dimensioned drawing
Male, straight
SAIL-M8BG-4-1.5V
Pole scheme
Socket
SAIL-M8BG-4-1.5V
Wiring diagram

SAIL-M8BG-4-1.5V

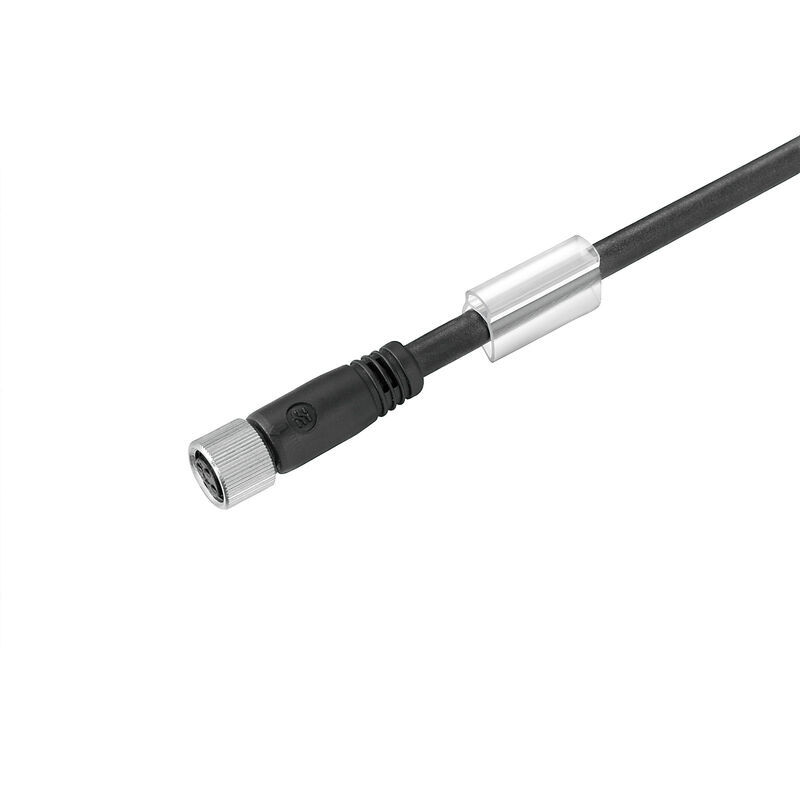

Sensor/actuator line, One end without connector, M8, Number of poles : 4, 1.5 m, Female socket, straight, Shielded: No, LED: No, Sheath material: PVC, Halogen: Yes

Référence produit 1927260150
Fiche technique Soporte técnico
Toebehoren 7 Verwante producten 7
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Electrical properties General standards Standards Plug, left Plug, right Product images Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E307231

General ordering data

Version
Sensor/actuator line, One end without connector, M8, Number of poles : 4, 1.5 m, Female socket, straight, Shielded: No, LED: No, Sheath material: PVC, Halogen: Yes
Order No.
1927260150
Type
SAIL-M8BG-4-1.5V
GTIN (EAN)
4032248574964
Qty.
1 Styk

Dimensions and weights

Net weight
56 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Technical specifications for cable

A következő kábeltartókhoz:
No
Configurable cable length
No
Halogener
Yes
Isolering
PVC
Kodowanie kolorami
brown
white
blue
black
Köpeny színe
black
Lunghezza del cavo
1,5 m
Number of poles
4
Odporność na iskry spawalnicze
No
Outside diameter
4.8 mm ± 0.2 mm
Przekrój żyły
0,25 mm²
Schermato
No
Sheath material
PVC
Säker mot svetsstänk
No
Temperaturområde, rörligt
-5...80 °C
UL AWM 방식 규격 외부 클래딩
2464 (80 °C / 300 V)
Диапазон температур, стацион.
-30...80 °C
Прочность при кручении
0 °/m
조사 교차결합
No

General technical data

Coding
A-coded
Connection thread
M8
Contact surface
Gold-plated
Housing main material
PUR
Insulation resistance
108 Ω
jumpered
No
LED
No
Nominal current
4 A
Nominal voltage
30 V
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP65
IP66
IP67
IP68
IP69
when screwed in
Temperature range of housing
-25…+85 °C
Threaded ring material
Brass, nickel-plated
Tightening torque
M8: 0.5 - 0.6 Nm
Version
Female socket, straight

Electrical properties

Insulation resistance
108 Ω
Nominal voltage
30 V

General standards

Certificate no. (cULus)
E307231
Conector norma
IEC 61076-2-104

Standards

Connector standard
IEC 61076-2-104

Plug, left

Plug left
M8, IP69, female contact, straight, Plastic, unshielded

Plug, right

Plug right
free conductor end

Product images

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
