THM MT30X 26/10 SI
THM MT30X 26/10 SI

THM MT30X 26/10 SI

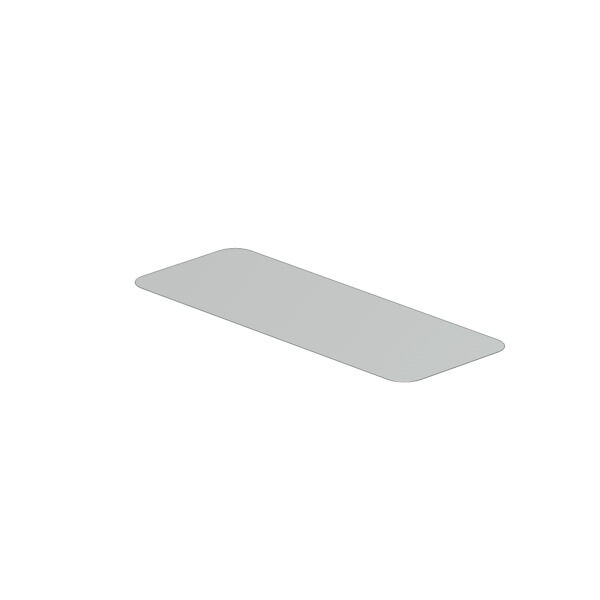

THM, Device markers, 10 x 26 mm, silver

Ürün No. 1751760001
Veri sayfasını indir Mühendislik desteği Ürün İndirmleri
Aksesuarlar 1 İlgili ürünler 29
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Device markers Classifications

Approvals

ROHS
Conform

General ordering data

Version
THM, Device markers, 10 x 26 mm, silver
Order No.
1751760001
Type
THM MT30X 26/10 SI
GTIN (EAN)
4032248001446
Qty.
1 adet

Dimensions and weights

Depth
0,08 mm
Depth (inches)
0,003 inch
Height
10 mm
Height (inches)
0,394 inch
Width
26 mm
Width (inches)
1,024 inch
Net weight
514 g

Temperatures

Operating temperature range
-40...150 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General data

Adhesive
Klej akrylanowy
Barevný
silver
Halogen
No
kompatibilní tiskárna
[THM MULTIMARK](~/p/2599430000)
[THM MULTIMARK PLUS](~/p/2599440000)
Operating temperature range, max.
150 °C
Počet na roli
10000
Počet značek na kombinaci
1 Label reel = Device markers
Počet značek v balení
  • Form of supply:

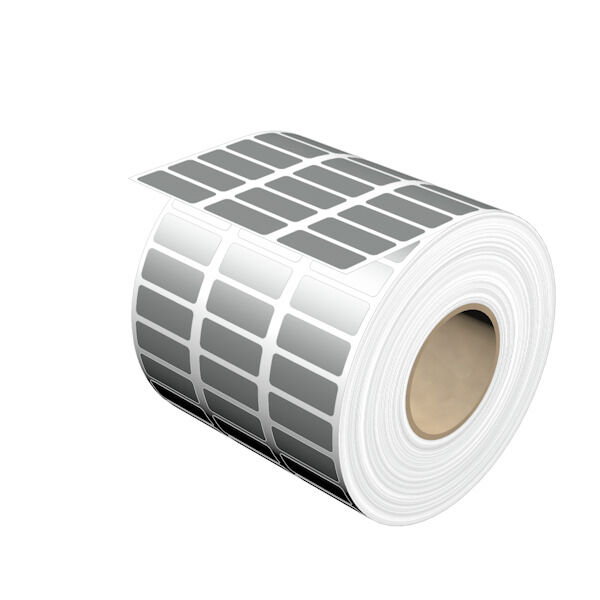

    Label reel
Printing method
Thermal transfer
Rozsah provozní teploty
-40...150 °C
Rozsah provozní teploty, min.
-40 °C
Schválení podle UL 969
Yes
Tištěné znaky
without
UL 94 flammability rating
V-0
Version
Self-adhesive
halogen-free
Width
26 mm
Základní materiál
Polyester

Device markers

Halogen
No

Classifications

ETIM 8.0
EC001288
ETIM 9.0
EC001288
ETIM 10.0
EC001288
ECLASS 14.0
27-28-11-04
ECLASS 15.0
27-28-11-04
