Properties

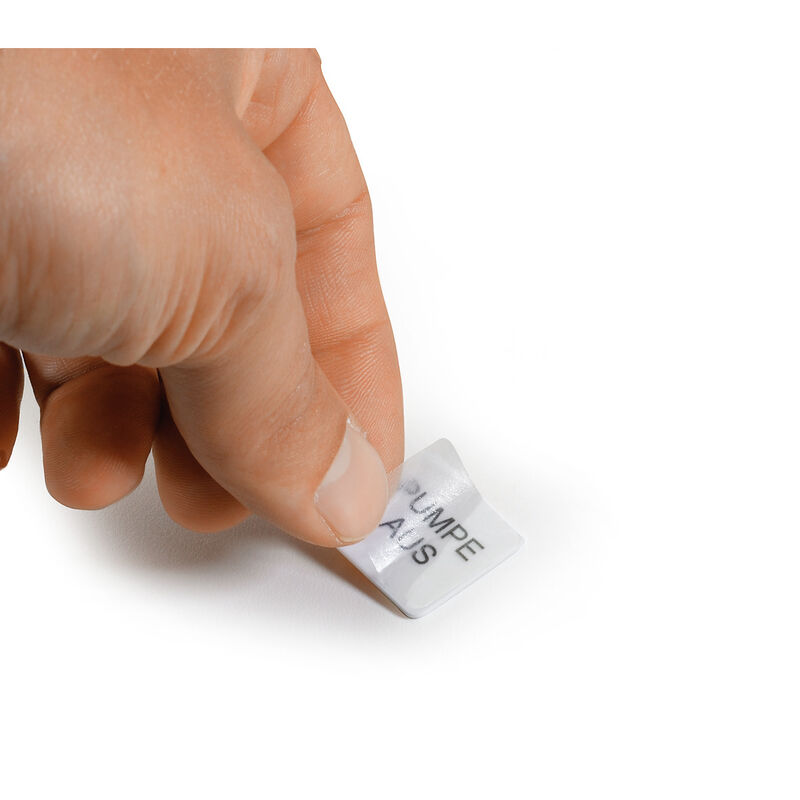

| Version | SwitchMark, Protective cap, 27 x 27 mm, Transparent |
| Order No. | 1805840000 |
| Type | ETO SM 27/27 |
| GTIN (EAN) | 4032248273577 |
| Qty. | 10 items |
| Depth | 0.2 mm |
| Depth (inches) | 0.008 inch |
| Height | 27 mm |
| Height (inches) | 1.063 inch |
| Width | 27 mm |
| Width (inches) | 1.063 inch |
| Net weight | 11.8 g |
| Operating temperature range | -20...80 °C |
| Adhesive | Permanent acrylic copolymer |
| Colour | Transparent |
| Halogen | No |
| Material | Polyester film |
| Number of markers per combination | 1 MultiCard = Protective cap |
| Number of markers per packaging unit |
|
| Number per sheet | 70 |
| Operating temperature range | -20...80 °C |
| Operating temperature range, max. | 80 °C |
| Operating temperature range, min. | -20 °C |
| UL 94 flammability rating | HB |
| Width | 27 mm |
| Halogen | No |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_304643) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1805840000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1805840000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1805840000&norm=0) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001288 |
| ETIM 7.0 | EC001288 |
| ETIM 8.0 | EC001288 |
| ETIM 9.0 | EC001288 |
| ECLASS 9.0 | 27-40-06-29 |
| ECLASS 9.1 | 27-40-06-29 |
| ECLASS 10.0 | 27-40-06-29 |
| ECLASS 11.0 | 27-28-11-04 |
| ECLASS 12.0 | 27-28-11-04 |
| ECLASS 13.0 | 27-28-11-04 |
| ROHS | Conform |
Is accessory of
-
-
Item No.:1131800000Packaging unit:60 PC
SwitchMark, Device markers, 27 x 27 mm, yellow
-
Item No.:1079520000Packaging unit:60 PC
SwitchMark, Device markers, 27 x 27 mm, grey
-
Item No.:1783000000Packaging unit:60 PC
SwitchMark, Device markers, 27 x 27 mm, white
-
Item No.:1782990000Packaging unit:60 PC
SwitchMark, Device markers, 27 x 27 mm, silver
-
Item No.:1773220000Packaging unit:60 PC
SwitchMark, Device markers, 27 x 27 mm, SwitchMark holder, white
-
Item No.:1131840000Packaging unit:60 PC
SwitchMark, Device markers, 27 x 27 mm, SwitchMark holder, yellow
-
Item No.:1079510000Packaging unit:60 PC
SwitchMark, Device markers, 27 x 27 mm, SwitchMark holder, grey
-
Item No.:1773230000Packaging unit:60 PC
SwitchMark, Device markers, 27 x 27 mm, SwitchMark holder, silver
-
Item No.:1783010000Packaging unit:12 PC
SwitchMark, Device markers, 27 x 27 mm, To customer specification
-
Item No.:1773240000Packaging unit:12 PC
SwitchMark, Device markers, 27 x 27 mm, SwitchMark holder, To customer specification
