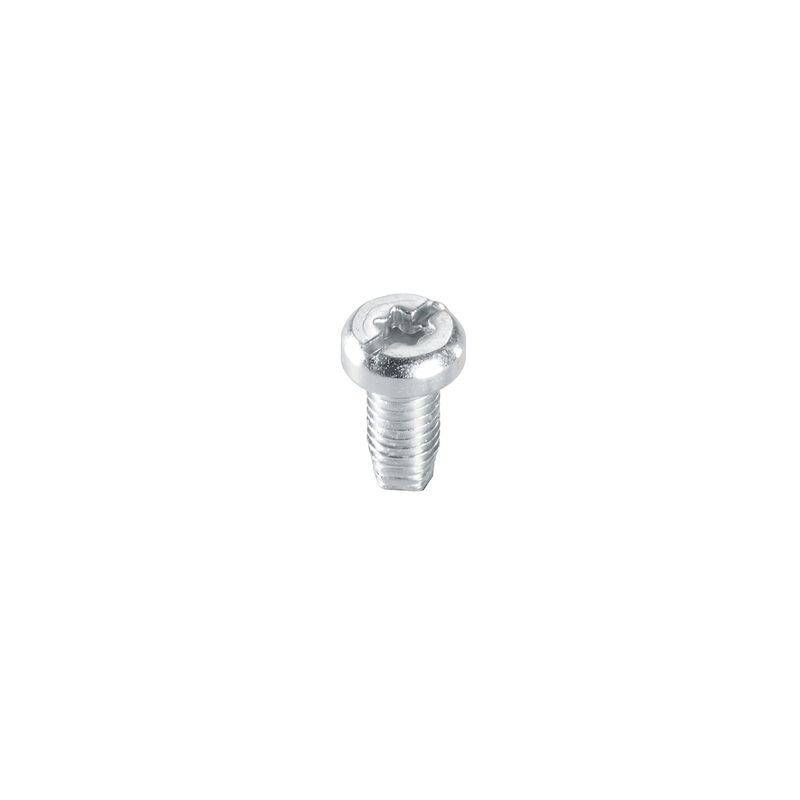

GFSC M5X10 TX20 SET — Similar to illustration

Download data sheet Related products

GFSC M5X10 TX20 SET

Klippon EB (Essential Box), Mounting screw, Height: 13.3 mm, Width: 8.5 mm, Depth: 8.5 mm, Material: Steel, galvanized, galvanic zinc plated and passivated, silver

Item No. 1274150000

Properties

General ordering data

Version	Klippon EB (Essential Box), Mounting screw, Height: 13.3 mm, Width: 8.5 mm, Depth: 8.5 mm, Material: Steel, galvanized, galvanic zinc plated and passivated, silver
Order No.	1274150000
Type	GFSC M5X10 TX20 SET
GTIN (EAN)	4050118063820
Qty.	1 items

Dimensions and weights

Depth	8.5 mm
Depth (inches)	0.335 inch
Height	13.3 mm
Height (inches)	0.524 inch
Width	8.5 mm
Width (inches)	0.335 inch
Net weight	45 g

Environmental Product Compliance

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

General information

Material	Steel, galvanized
Surface finish	galvanic zinc plated and passivated

Product information

packing unit (PU) = 20 pcs., sufficient for 10 fixtures

Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_54049)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.1274150000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1274150000)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC002625
ETIM 7.0	EC002625
ETIM 8.0	EC002625
ETIM 9.0	EC002625
ECLASS 9.0	27-18-28-07
ECLASS 9.1	27-18-92-90
ECLASS 10.0	27-18-28-07
ECLASS 11.0	27-18-28-07
ECLASS 12.0	27-18-28-07
ECLASS 13.0	27-18-28-07
ECLASS 14.0	27-18-28-07

ROHS

Conform
