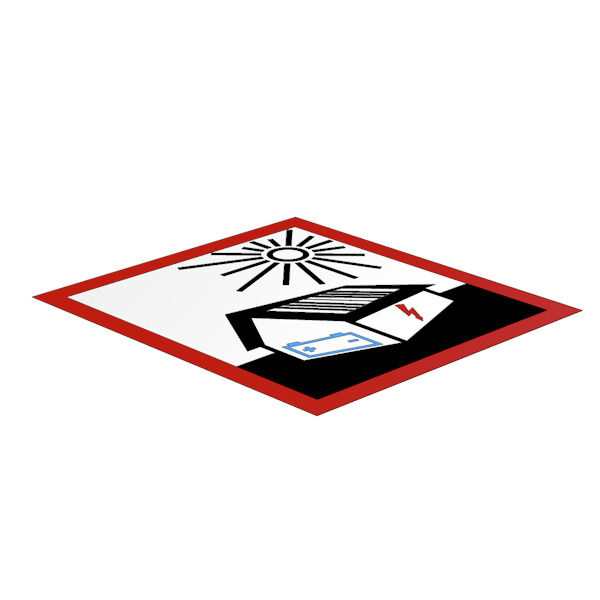

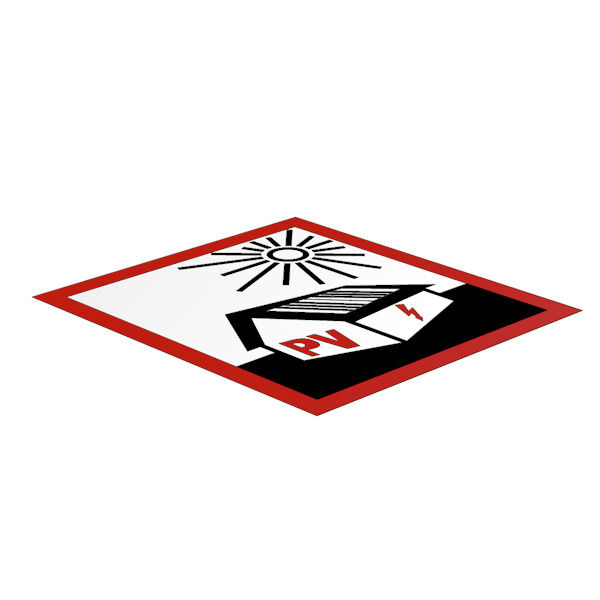

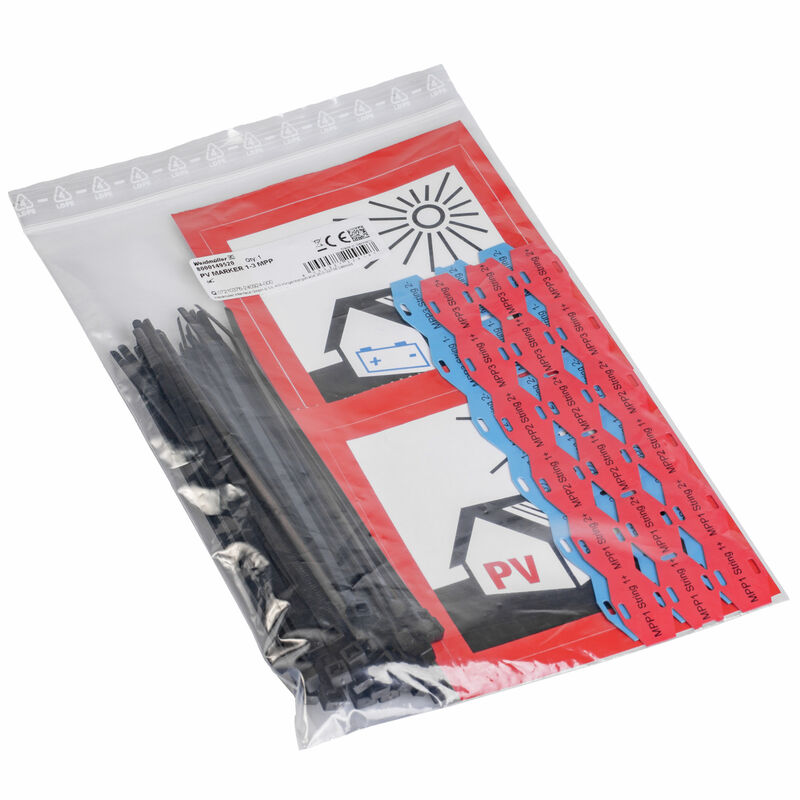

PV MARKER 1-3 MPP

Photovoltaics, Device markers, Accessories, Conductor and cable markers, Cable ties, Marking set, Warning label, Cable marker

Item No. 8000149520

Properties

General ordering data

Version	Photovoltaics, Device markers, Accessories, Conductor and cable markers, Cable ties, Marking set, Warning label, Cable marker
Order No.	8000149520
Type	PV MARKER 1-3 MPP
GTIN (EAN)	4099987229197
Qty.	1 items
Packaging	Plastic bag

Dimensions and weights

Depth	10 mm
Depth (inches)	0.394 inch
Height	150 mm
Height (inches)	5.905 inch
Width	70 mm
Width (inches)	2.756 inch
Net weight	40 g

Markers

Adhesive	Polyacrylate adhesive
Colour	red / blue
Halogen	Yes
Magnetic	No
Material	Vinyl film Polyolefine Polyurethane
Colour of printing	black
Number of markers per combination	36
Packaging	Plastic bag
Recommended industries	Energy
Type of printing	Symbols

Downloads

Catalogues

[Catalogues in PDF-format](https://www.weidmueller.com/int/service/technical_product_catalogues.jsp)

Classifications

ETIM 6.0	EC001288
ETIM 7.0	EC001288
ETIM 8.0	EC001288
ETIM 9.0	EC001288
ECLASS 9.0	27-40-06-29
ECLASS 9.1	27-40-06-29
ECLASS 10.0	27-40-06-29
ECLASS 11.0	27-28-11-04
ECLASS 12.0	27-28-11-04
ECLASS 13.0	27-28-11-04
ECLASS 14.0	27-28-11-04

Approvals

Approvals	![CE](/picture/CE.gif)
ROHS	Conform
