SV 7.62IT/03/270MF3 3.5SN BK BX
SV 7.62IT/03/270MF3 3.5SN BK BX

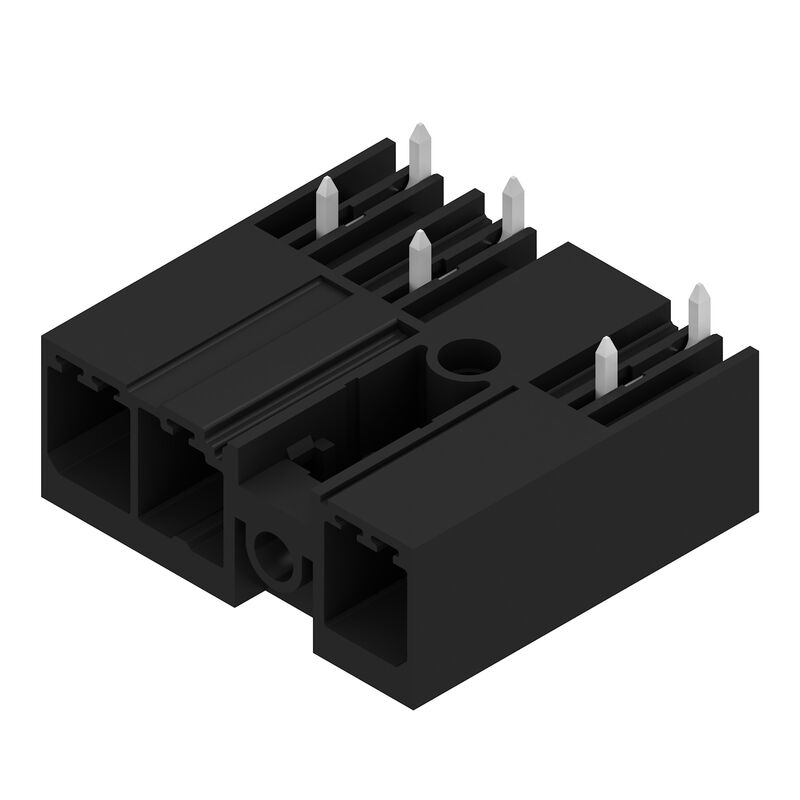

Product image
SV 7.62IT/03/270MF3 3.5SN BK BX
Product image
SV 7.62IT/03/270MF3 3.5SN BK BX

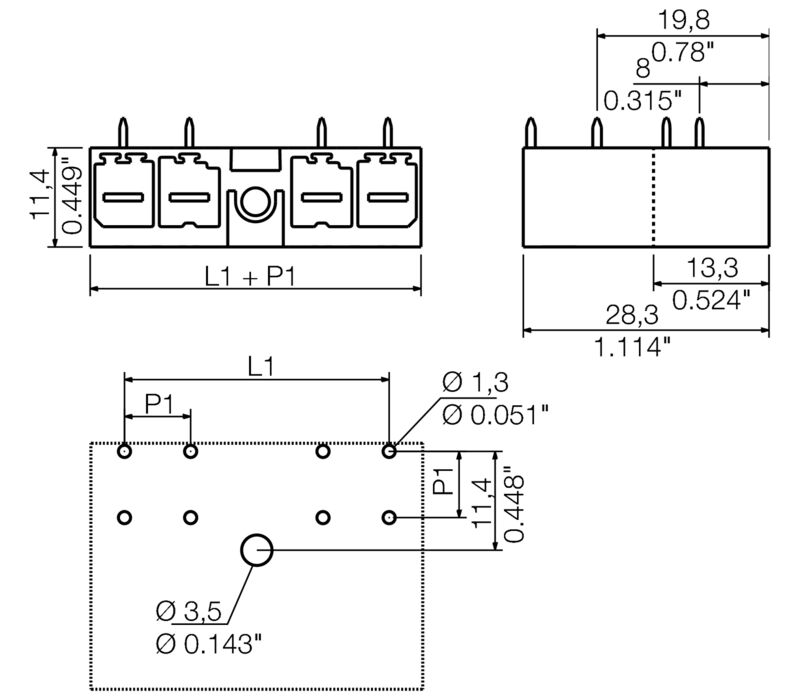

Dimensional drawing

SV 7.62IT/03/270MF3 3.5SN BK BX

PCB plug-in connector, male header, closed side, Middle flange, THT solder connection, 7.62 mm, Number of poles: 3, 270°, Solder pin length (l): 3.5 mm, tinned, black, Box

Item No. 1156510000
Download data sheet Engineering Support Product Downloads
Accessories 1 Is counterpart of 1 Related products 4
Approvals General ordering data Dimensions and weights Environmental Product Compliance 시스템 사양 Données des matériaux Bemessungsdaten nach IEC Données nominales selon CSA Rated data acc. to UL 1059 Imballaggio Important note Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Zertifikat-Nr. (cURus)
E60693

General ordering data

Version
PCB plug-in connector, male header, closed side, Middle flange, THT solder connection, 7.62 mm, Number of poles: 3, 270°, Solder pin length (l): 3.5 mm, tinned, black, Box
Order No.
1156510000
Type
SV 7.62IT/03/270MF3 3.5SN BK BX
GTIN (EAN)
4032248943364
VPE
60 items
Product data
IEC: 1000 V / 41 A
UL: 300 V / 40.5 A
Packaging
Box

Dimensions and weights

Depth
28.3 mm
Tiefe (inch)
1.114 inch
Height
14.9 mm
Height (inches)
0.587 inch
Width
30.48 mm
Width (inches)
1.2 inch
Net weight
6.672 g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

시스템 사양

Product family
OMNIMATE 파워 - 시리즈 BV/SV 7.62IT
Type of connection
Board connection
Mounting onto the PCB
THT solder connection
Pitch in mm (P)
7.62 mm
Pitch in inches (P)
0.3 "
Outgoing elbow
270°
Number of poles
3
Number of solder pins per pole
2
Solder pin length (l)
3.5 mm
Solder pin length tolerance
+0.1 / -0.3 mm
Solder pin dimensions
0.8 x 1.0 mm
Bestückungsloch-Durchmesser (D)
1.3 mm
Solder eyelet hole diameter tolerance (D)
+ 0,1 mm
L1 in mm
22.86 mm
L1 in inches
0.9 "
Number of rows
1
Pin series quantity
2
Touch-safe protection acc. to DIN VDE 57 106
Touch-safe above the printed circuit board
Touch-safe protection acc. to DIN VDE 0470
IP 20
Protection degree
IP20
Volume resistance
2.00 mΩ
Can be coded
Yes

Données des matériaux

Izolační materiál
PA GF
Barevný
черный
Barevný graf (podobné)
RAL 9011
Insulating material group
II
Kriechstromfestigkeit (CTI)
≥ 500
UL 94 flammability rating
V-0
Materiál kontaktu
Copper alloy
Povrch kontaktu
tinned
Layer structure of solder connection
1...3 µm Ni / 4...6 µm Sn matt
Layer structure of plug contact
1...3 µm Ni / 4...6 µm Sn matt
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
-50 °C
Operating temperature, max.
130 °C
Temperature range, installation, min.
-25 °C
Temperature range, installation, max.
130 °C

Bemessungsdaten nach IEC

geprüft nach Norm
IEC 60664-1
IEC 61984
Jmenovitý proud, min. počet pólů (Tu=20 °C)
41 A
Jmenovitý proud, max. počet pólů (Tu=20 °C)
41 A
Jmenovitý proud, min. počet pólů (Tu=40 °C)
41 A
Rated current, max. number of poles (Tu=40°C)
41 A
Bemessungsspannung bei Überspannungsk./Verschmutzungsgrad II/2
1,000 V
Bemessungsspannung bei Überspannungsk./Verschmutzungsgrad III/2
630 V
Rated voltage for surge voltage class / pollution degree III/3
630 V
Bemessungsstoßspannung bei Überspannungsk./Verschmutzungsgrad II/2
6 kV
Bemessungsstoßspannung bei Überspannungsk./Verschmutzungsgrad III/2
6 kV
Jmenovité impulzní napětí pro třídu přepětí / stupeň znečištění III/3
6 kV
Krátkodobý odpor proti zkratovému proudu
3 x 1s with 420 A
Clearance, min.
6.9 mm
Creepage distance, min.
9.6 mm

Données nominales selon CSA

Institute (CSA)
CSA
Certificate No. (CSA)
200039-1121690
Rated voltage (Use group B / CSA)
300 V
Rated voltage (Use group C / CSA)
300 V
Rated voltage (Use group D / CSA)
600 V
Rated current (Use group B / CSA)
35 A
Rated current (Use group C / CSA)
35 A
Rated current (Use group D / CSA)
5 A
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Rated data acc. to UL 1059

Institute (cURus)
CURUS
Certificate No. (cURus)
E60693
Rated voltage (Use group B / UL 1059)
300 V
Rated voltage (Use group C / UL 1059)
300 V
Nennspannung (Use group D / UL 1059)
600 V
Rated voltage (Use group F / UL 1059)
744 V
Nennstrom (Use group B / UL 1059)
40.5 A
Rated current (Use group C / UL 1059)
40.5 A
Nennstrom (Use group D / UL 1059)
5 A
Rated current (Use group F / UL 1059)
40.5 A
Clearance distance, min.
6.9 mm
Creepage distance, min.
9.6 mm
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Imballaggio

Packaging
박스
VPE length
349 mm
VPE width
134 mm
VPE height
40 mm

Important note

IPC conformity
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notes
  • Additional variants on request
  • Rated current related to rated cross-section & min. No. of poles.
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002637
ETIM 9.0
EC002637
ETIM 10.0
EC002637
ECLASS 14.0
27-46-02-01
ECLASS 15.0
27-46-02-01
