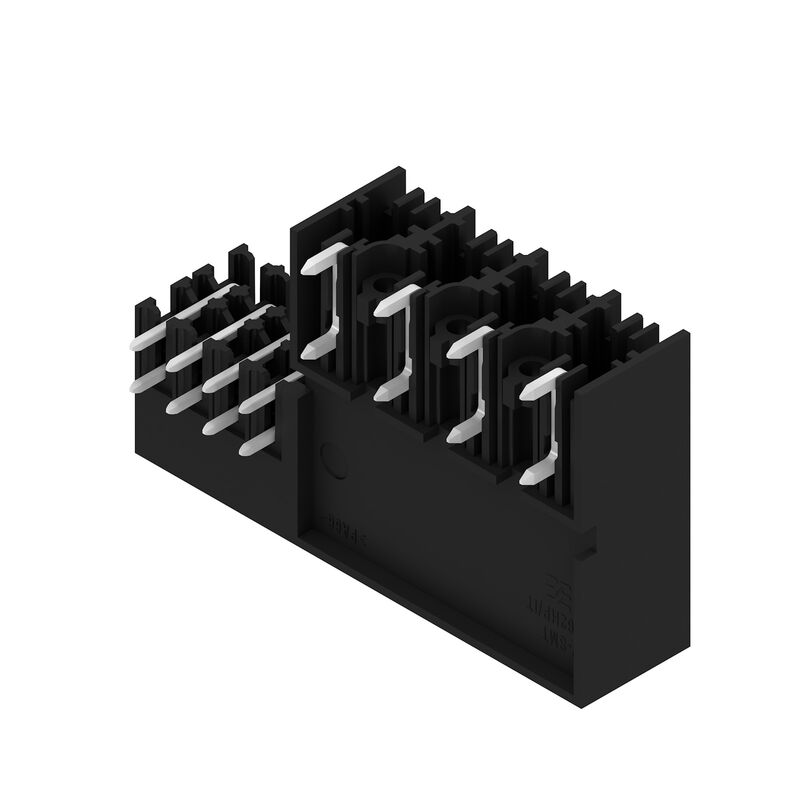

SV-SMT 7.62HP/04/90G SC/8 2.6SN BX
Product image

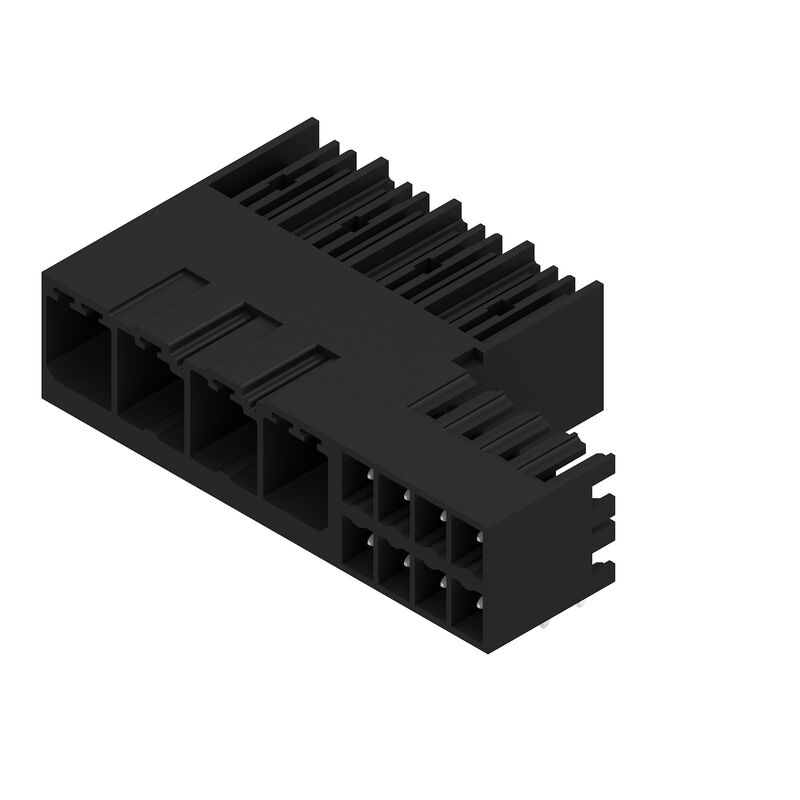

SV-SMT 7.62HP/04/90G SC/8 2.6SN BX
Product image
SV-SMT 7.62HP/04/90G SC/8 2.6SN BX
Dimensional drawing

SV-SMT 7.62HP/04/90G SC/8 2.6SN BX

PCB plug-in connector, male header, closed side, THT/THR solder connection, 7.62 mm, Number of poles: 4, 90°, Solder pin length (l): 2.6 mm, tinned, black, Box

Item No. 2529100000
Download data sheet Engineering Support Product Downloads
Accessories 1 Related products 12
Approvals General ordering data Dimensions and weights Environmental Product Compliance System specifications Material data Rated data acc. to IEC Rated data acc. to UL 1059 Packing Technical data - hybrid Important note Classifications

Approvals

Dopuszczenia
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Nr certyfikatu (cURus)
E60693

General ordering data

Wersja
PCB plug-in connector, male header, closed side, THT/THR solder connection, 7.62 mm, Number of poles: 4, 90°, Solder pin length (l): 2.6 mm, tinned, black, Box
Nr zam.
2529100000
Typ
SV-SMT 7.62HP/04/90G SC/8 2.6SN BX
GTIN (EAN)
4050118673166
Ilość
36 items
Product data
IEC: 1000 V / 41 A
UL: 300 V / 33 A
Packaging
Box

Dimensions and weights

Głębokość
28.3 mm
Głębokość (cale)
1.114 inch
Wysokość
14 mm
Height (inches)
0.551 inch
Height of lowest version
11.4 mm
Szerokość
46.69 mm
Width (inches)
1.838 inch
Masa netto
1 g

Environmental Product Compliance

Status zgodności z dyrektywą RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System specifications

Product family
OMNIMATE Power - series BV/SV 7.62HP
Type of connection
Board connection
Mounting onto the PCB
THT/THR solder connection
Pitch in mm (P)
7.62 mm
Pitch in inches (P)
0.3 "
kąt odejścia
90°
Number of poles
4
Number of solder pins per pole
2
Solder pin length (l)
2.6 mm
Solder pin length tolerance
+0.1 / -0.3 mm
Wymiary kołka lutowniczego
0.8 x 1.0 mm
Solder eyelet hole diameter (D)
1.4 mm
Solder eyelet hole diameter tolerance (D)
+ 0,1 mm
L1 in mm
22.86 mm
L1 in inches
0.9 "
L2 in mm
11.43 mm
L2 in inch
0.45 "
Liczba rzędów
1
Pin series quantity
1
Touch-safe protection acc. to DIN VDE 57 106
safe to back of hand above the printed circuit board
Touch-safe protection acc. to DIN VDE 0470
IP 20
Volume resistance
2.00 mΩ
Can be coded
Yes
Plugging force/pole, max.
12 N
Pulling force/pole, max.
7 N

Material data

Materiał izolacyjny
PA 9T
Barwny
black
Tabela kolorów (podobny)
RAL 9011
grupa materiałów izolacyjnych
II
Comparative Tracking Index (CTI)
≥ 500
Moisture Level (MSL)
1
UL 94 flammability rating
V-0
Materiał styków
Cu-alloy
Powierzchnia styku
tinned
Layer structure of solder connection
1...3 µm Ni / 4...6 µm Sn matt
Layer structure of plug contact
1...3 µm Ni / 4...6 µm Sn matt
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
130 °C
Temperature range, installation, min.
-25 °C
Temperature range, installation, max.
130 °C

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Prąd znamionowy, min. liczba biegunów (Tu=20°C)
41 A
Prąd znamionowy, maks. liczba biegunów (Tu=20°C)
41 A
Prąd znamionowy, min. liczba biegunów (Tu=40°C)
41 A
Prąd znamionowy, maks. liczba biegunów (Tu=40°C)
41 A
napięcie znamionowe przy kat. przepięć/stopniu zanieczyszczenia II/2
1,000 V
napięcie znamionowe przy kat. przepięć/stopniu zanieczyszczenia III/2
630 V
napięcie znamionowe przy kat. przepięć/stopniu zanieczyszczenia III/3
630 V
Rated impulse voltage for surge voltage class/ pollution degree II/2
6 kV
znamionowe napięcie udarowe przy kat. przepięć/stopniu zanieczyszczenia III/2
6 kV
znamionowe napięcie udarowe przy kat. przepięć/stopniu zanieczyszczenia III/3
6 kV
odporność na zwarcia
3 x 1s with 420 A

Rated data acc. to UL 1059

협회(cURus)
CURUS
인증 번호(cURus)
E60693
Rated voltage (Use group B / UL 1059)
300 V
Rated voltage (Use group C / UL 1059)
300 V
정격 전압(사용 그룹 D / UL 1059)
600 V
정격 전류(사용 그룹 B / UL 1059)
33 A
정격 전류(사용 그룹 C / UL 1059)
33 A
Rated current (Use group D / UL 1059)
5 A
공간거리, min.
6.9 mm
승인값 참조
Specifications are maximum values, details - see approval certificate.
연면거리, 분.
9.6 mm

Packing

opakowanie
Box
Długość VPE
338 mm
Szerokość VPE
130 mm
VPE height
33 mm

Technical data - hybrid

피치(mm) (하이브리드)
  • nominal:
    3.81 mm
  • Hybrid component:
    Signal
Pitch in mm (Signal)
3.81 mm
피치(inch) (하이브리드)
  • nominal:
    0.15 "
  • Hybrid component:
    Signal
Pitch in inches (Signal)
0.15 "
Pole count (hybrid)
  • nominal:
    8
  • Hybrid component:
    Signal
Number of poles (Signal)
8
Number of solder pins per pole (hybrid)
  • Hybrid component:
    Signal
  • nominal:
    1
Number of solder pins per pole (Signal)
1
Solder pin dimensions (hybrid)
  • Solder pin dimensions:
    0.8 x 0.8 mm
  • Hybrid component:
    Signal
Solder pin dimensions (Signal)
0.8 x 0.8 mm
Solder pin dimensions = d tolerance (hybrid)
  • Solder pin dimensions = d tolerance:
    • Lower tolerance with prefix (reveals minimum):
      -0,03
    • Upper tolerance with prefix (reveals maximum):
      +0,01
    • Tolerance, unit:
      mm
  • Hybrid component:
    Signal
Solder pin dimensions = d tolerance (Signal)
-0,03 / +0,01 mm
솔더 아이렛의 직경 (하이브리드)
  • Hybrid component:
    Signal
  • nominal:
    1.3 mm
PCB hole diameter (Signal)
1.3 mm
솔더 아이렛 직경 공차 (하이브리드)
  • Hybrid component:
    Signal
  • Solder eyelet hole diameter tolerance (D):
    ± 0.1 mm
  • Solder eyelet hole diameter tolerance (D):
    + 0,1 mm
PCB hole diameter tolerance (Signal)
± 0.1 mm
L2 in mm
11.43 mm
L2 in inch
0.45 "
행 수 (하이브리드)
  • Hybrid component:
    Signal
Number of rows (Signal)
2
접점 재질(하이브리드)
  • Hybrid component:
    Signal
  • Contact material:
    CuMg
Contact material (Signal)
CuMg
접점 표면(하이브리드)
  • Hybrid component:
    Signal
  • Contact surface:
    tinned
Contact surface (Signal)
tinned
Layer structure of the solder connection (hybrid)
  • Layer structure of the solder connection:
    • Material:
      Ni
    • Layer strength:
      • min.:
        1 µm
      • max.:
        3 µm
    • Material:
      Sn
    • Layer strength:
      • min.:
        4 µm
      • max.:
        8 µm
  • Hybrid component:
    Signal
Layer structure of the solder connection (Signal)
1-3 µm Ni / 4-8 µm Sn
Layer structure of the plug contact (hybrid)
  • Layer structure of the plug contact:
    • Material:
      Ni
    • Layer strength:
      • min.:
        1 µm
      • max.:
        3 µm
    • Material:
      Sn
    • Layer strength:
      • min.:
        4 µm
      • max.:
        8 µm
  • Hybrid component:
    Signal
Layer structure of the plug contact (Signal)
1-3 µm Ni / 4-8 µm Sn
Rated voltage for overvoltage class / pollution severity level II/2 (hybrid)
  • Hybrid component:
    Signal
  • nominal:
    320 V
Rated voltage for overvoltage class/pollution severity level II/2 (Signal)
320 V
Rated voltage for overvoltage class / pollution severity level III/2 (hybrid)
  • Hybrid component:
    Signal
  • nominal:
    160 V
Rated voltage for overvoltage class/pollution severity level III/2 (Signal)
160 V
Rated voltage for overvoltage class / pollution severity level III/3 (hybrid)
  • Hybrid component:
    Signal
  • nominal:
    160 V
Rated voltage for overvoltage class/pollution severity level III/3 (Signal)
160 V
Rated impulse voltage for overvoltage class / pollution severity level II/2 (hybrid)
  • Hybrid component:
    Signal
  • nominal:
    2.5 kV
Rated impulse voltage for overvoltage class/pollution severity level II/2 (Signal)
2.5 kV
Rated impulse voltage for overvoltage class / pollution severity level III/2 (hybrid)
  • Hybrid component:
    Signal
  • nominal:
    2.5 kV
Номинальное импульсное напряжение для класса перенапряжения / степени загрязнения III/2 (сигнал)
2.5 kV
Znamionowe napięcie impulsowe dla klasy przepięć / stopień zanieczyszczenia III/3 (hybrydowe)
  • Hybrid component:
    Signal
  • nominal:
    2.5 kV
Rated impulse voltage for overvoltage class/pollution severity level III/3 (Signal)
2.5 kV
Short-time withstand current capacity (hybrid)
  • Short-time withstand current resistance:
    3 x 1s with 80 A
  • Hybrid component:
    Signal
Short-time withstand current resistance (Signal)
3 x 1s with 80 A
Creepage distance (hybrid)
  • Hybrid component:
    Signal
  • min.:
    4.38 mm
Clearance distance (hybrid)
  • Hybrid component:
    Signal
  • min.:
    3.6 mm
Rated voltage (Use group B / CSA) (Hybrid)
  • Hybrid component:
    Signal
  • nominal:
    300 V
Rated voltage (Use group B / CSA) (Signal)
300 V
Rated voltage (Use group C / CSA) (Hybrid)
  • Hybrid component:
    Signal
  • nominal:
    50 V
Rated voltage (Use group C / CSA) (Signal)
50 V
Rated current (Use group B / CSA) (Hybrid)
  • Hybrid component:
    Signal
  • nominal:
    9 A
Rated current (Use group B / CSA) (Signal)
9 A
Rated current (Use group C / CSA) (Hybrid)
  • Hybrid component:
    Signal
  • nominal:
    9 A
Rated current (Use group C / CSA) (Signal)
9 A
Rated current (Use group D / CSA) (Hybrid)
  • Hybrid component:
    Signal
  • nominal:
    9 A
Rated current (Use group D / CSA) (Signal)
9 A
Rated voltage (Use group B / UL 1059) (Hybrid)
  • Hybrid component:
    Signal
  • nominal:
    300 V
Rated voltage (Use group B / UL 1059] (Signal)
300 V
Rated voltage (Use group C / UL 1059) (Hybrid)
  • Hybrid component:
    Signal
  • nominal:
    50 V
Rated voltage (Use group C / UL 1059] (Signal)
50 V
Rated voltage (Use group D / UL 1059) (Hybrid)
  • Hybrid component:
    Signal
  • nominal:
    300 V
Rated voltage (Use group D / UL 1059] (Signal)
300 V
Rated current (Use group B / UL 1059) (Hybrid)
  • Hybrid component:
    Signal
  • nominal:
    5 A
Rated current (Use group B / UL 1059) (Signal)
5 A
Rated current (Use group C / UL 1059) (Hybrid)
  • Hybrid component:
    Signal
  • nominal:
    5 A
Rated current (Use group C / UL 1059) (Signal)
5 A
Rated current (Use group D / UL 1059) (Hybrid)
  • Hybrid component:
    Signal

Important note

Zgodność IPC
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Uwagi
  • Technical specifications refer to the power contacts
  • Technical data of signal contacts: 50V / 5A, stripping length 8mm
  • Rated current related to rated cross-section & min. No. of poles.
  • Specifications of diagram: P1=7.62 mm; P2=3.81 mm
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months
