WTL 6/1 BL

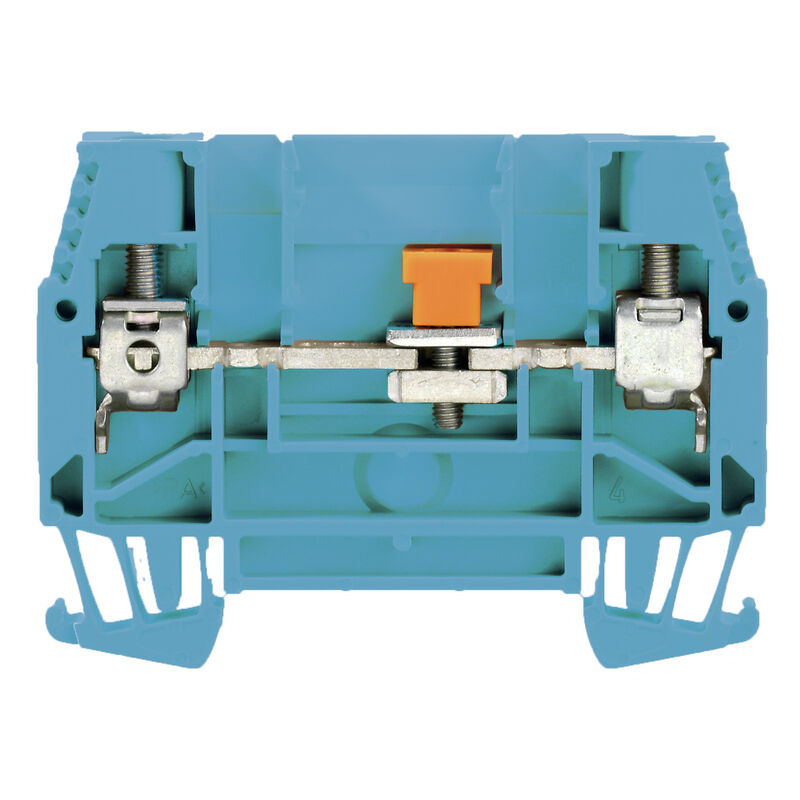

Product image
WTL 6/1 BL

WTL 6/1 BL

Measuring transformer disconnect terminal, Screw connection, 500, 41, 2

Tuotteen tunnus 1016780000
Avaa konfiguraattorissa
Lataa tietosivu Engineering Support Product Downloads
Lisävarusteet 52 Samankaltaiset tuotteet 43
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data System specifications Additional technical data Conductors for clamping (additional connection) Conductors for clamping (rated connection) CSA rating data Dimensions General Rating data UL rating data Product images Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/35c2d189-508a-474d-b19d-eb9035fb9c7c/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/70d4994d-1e1f-4a62-8b8a-96bcbd57aca3/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (UR)
E60693

General ordering data

Version
Measuring transformer disconnect terminal, Screw connection, 500, 41, 2
Order No.
1016780000
Type
WTL 6/1 BL
GTIN (EAN)
4032248064137
Qty.
50 items

Dimensions and weights

Depth
47,5 mm
Depth (inches)
1,87 inch
Depth including DIN rail
48,5 mm
Height
65 mm
Height (inches)
2,559 inch
Width
7,9 mm
Width (inches)
0,311 inch
Net weight
20,98 g

Temperatures

Storage temperature
-25 °C...55 °C
Ambient temperature
-5 °C…40 °C
Continuous operating temp., min.
−50 °C
Continuous operating temp., max.
120 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Basic material
Wemid
컬러 코드
blue
UL 94 éghetőségi osztály
V-0

System specifications

Version
Screw connection
Spacer
for screwable cross-connection
One end without connector
End cover plate required
Yes
Number of potentials
1
Number of levels
1
Number of clamping points per level
2
Number of potentials per tier
1
Piani ponticellati internamente
No
PE connection
No
Mounting rail
TS 35
N-function
Yes
PE function
No
PEN function
No

Additional technical data

Explosion-tested version
No
Number of similar terminals
1
otwarte strony
right
Type of mounting
Snap-on

Conductors for clamping (additional connection)

Connection type, additional connection
Screw connection

Conductors for clamping (rated connection)

Blade size
0.8 x 4.0 mm
Clamping range, max.
10 mm²
Clamping range, min.
0,5 mm²
Clamping screw
M 3.5
Connection cross-section, stranded, max.
6 mm²
Connection cross-section, stranded, min.
0,5 mm²
Connection direction
on side
Gauge to IEC 60947-1
A5
Number of connections
2
Průřez připojení vodiče, pevné jádro, max.
10 mm²
Průřez připojení vodiče, pevné jádro, min.
0,5 mm²
Stripping length
12 mm
Tightening torque, max.
1,6 Nm
Tightening torque, min.
1 Nm
Torque level with DMS electric screwdriver
3
Type of connection
Screw connection
Wire connection cross section AWG, max.
AWG 8
Wire connection cross section AWG, min.
AWG 20
Wire connection cross section, finely stranded, max.
10 mm²
Wire connection cross section, finely stranded, min.
0,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
6 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
6 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,5 mm²

CSA rating data

Current size D (CSA)
5 A
Leiterquerschnitt min (CSA)
20 AWG
Průřez vodiče max. (CSA)
8 AWG
Velikost napětí C (CSA)
300 V
Velikost napětí D (CSA)
600 V
Velikost proudu C (CSA)
45 A
Č. osvědčení (CSA)
200039-1057876

Dimensions

TS 35 offset
32,5 mm

General

Mounting rail
TS 35
Wire connection cross section AWG, max.
AWG 8
Wire connection cross section AWG, min.
AWG 20

Rating data

Rated cross-section
6 mm²
Rated voltage
500 V
Rated DC voltage
630 V
Nominal current
41 A
Current at maximum wires
57 A
Volume resistance according to IEC 60947-7-x
0,78 mΩ
Rated impulse withstand voltage
6 kV
Power loss in accordance with IEC 60947-7-x
1,31 W
Pollution severity
3

UL rating data

Corriente Gr C (UR)
45 A
Sección del conductor Cableado de fábrica máx. (UR)
8 AWG
Tanúsítvány száma (UR)
E60693
Tension Gr C (UR)
300 V
Vezetékméret, gyári vezetékezés, min. (UR)
20 AWG
Vezetékméret, terepi vezetékezés, max. (UR)
8 AWG
Vezetékméret, terepi vezetékezés, min. (UR)
20 AWG

Product images

Classifications

ETIM 8.0
EC000902
ETIM 9.0
EC000902
ETIM 10.0
EC000902
ECLASS 14.0
27-25-01-09
ECLASS 15.0
27-25-01-09
