Ominaisuudet
Version | MetalliCard, Device markers, silver |
Order No. | 1327750000 |
Type | CC-M DIA 30 AL |
GTIN (EAN) | 4050118132625 |
Qty. | 200 items |
Depth | 0,5 mm |
Depth (inches) | 0,02 inch |
Diameter | 30 mm |
Net weight | 0,95 g |
Operating temperature range | -55...130 °C |
RoHS Compliance Status | Compliant without exemption |
REACH SVHC | No SVHC above 0.1 wt% |
Colour | silver |
Material |
Chrome coated aluminium (AL)
Anodized aluminium |
Number of markers per combination | 1 MetalliCard = Device markers |
Number of markers per packaging unit |
|
Operating temperature range | -55...130 °C |
Operating temperature range, max. | 130 °C |
Operating temperature range, min. | −55 °C |
Recommended industries |
Energy
Process |
Size of labelling field | 28.2 x 28.2 mm |

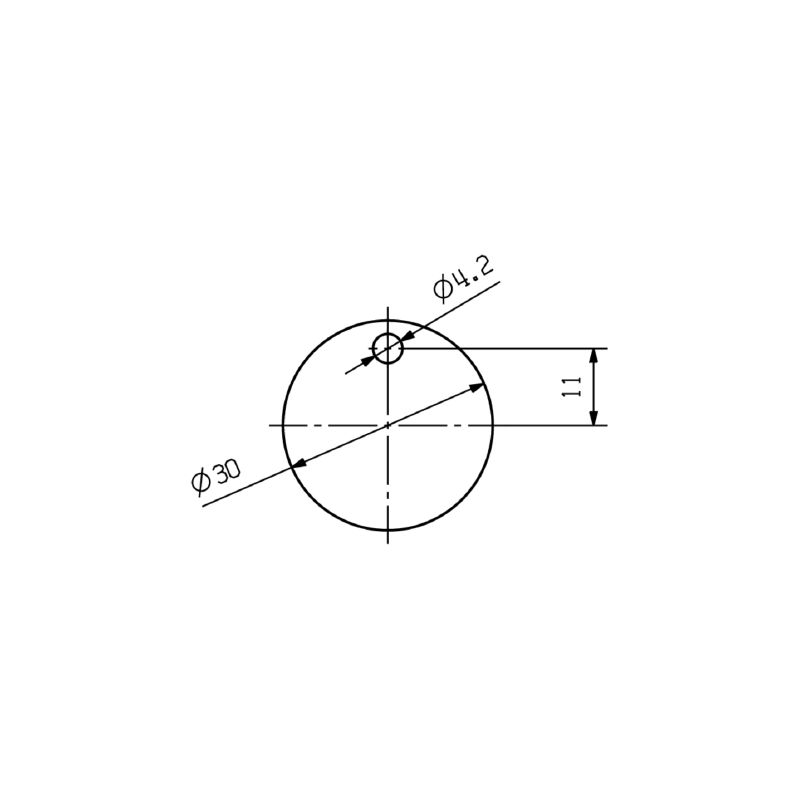

Diameter | 30 mm |
Drill-hole diameter | 4,2 mm |
Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_61227) |
Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1327750000) |
CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1327750000) |
Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
ETIM 6.0 | EC001288 |
ETIM 7.0 | EC001288 |
ETIM 8.0 | EC001288 |
ETIM 9.0 | EC001288 |
ECLASS 9.0 | 27-40-06-29 |
ECLASS 9.1 | 27-40-06-29 |
ECLASS 10.0 | 27-40-06-29 |
ECLASS 11.0 | 27-28-11-04 |
ECLASS 12.0 | 27-28-11-04 |
ECLASS 13.0 | 27-28-11-04 |
ECLASS 14.0 | 27-28-11-04 |
ROHS | Conform |
