FSR0225024 FG
SAFESERIES, Relay with positively driven contacts 2 NC and 2 NO contacts forcibily guided (EN 61810-3 type A) AgSnO gold-plated, Rated control voltage: 24 V DC ±10 %, Continuous current: 6 A, Plug-in connection, Test button available: No
Tuotteen tunnus
2759040000
Ominaisuudet
| Version | SAFESERIES, Relay with positively driven contacts 2 NC and 2 NO contacts forcibily guided (EN 61810-3 type A) AgSnO gold-plated, Rated control voltage: 24 V DC ±10 %, Continuous current: 6 A, Plug-in connection, Test button available: No |
| Order No. | 2759040000 |
| Type | FSR0225024 FG |
| GTIN (EAN) | 4064675266150 |
| Qty. | 5 items |
| Depth | 24 mm |
| Depth (inches) | 0,945 inch |
| Height | 40 mm |
| Height (inches) | 1,575 inch |
| Width | 13 mm |
| Width (inches) | 0,512 inch |
| Net weight | 20 g |
| Storage temperature | -40 °C...85 °C |
| Operating temperature | -40 °C...85 °C |
| Humidity | 5...85 %, no condensation |
| RoHS Compliance Status | Compliant |
| REACH SVHC | No SVHC above 0.1 wt% |
| Certificate No. (cURus) | E224238 |
| Rated control voltage | 24 V DC ±10 % |
| Rated current DC | 15 mA |
| Power rating | 360 mW |
| Coil resistance | 1600 Ω ± 10 % |
| Status indicator | No |
| Rated switching voltage | 250 V AC |
| Continuous current | 6 A |
| Max. switching frequency at rated load | 0,1 Hz |
| Max. switching voltage, AC | 400 V |
| Max. switching voltage, DC | 250 V |
| Min. switching power |
2 mA @ 24 V
4 mA @ 12 V 10 mA @ 5 V |
| Inrush current | 30 A / 20 ms |
| AC switching capacity (resistive), max. | 1500 VA |
| DC switching capacity (resistive), max. | 144 W @ 24 V |
| Switch-on delay | < 20 ms |
| Switch-off delay | < 20 ms |

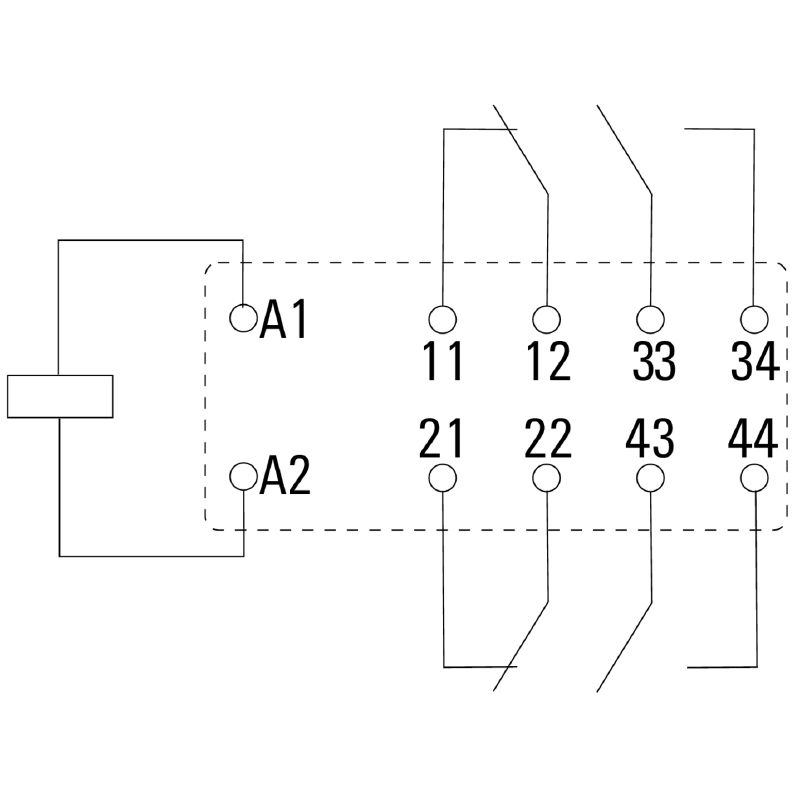

| Contact type | 2 NC and 2 NO contacts forcibily guided (EN 61810-3 type A) (AgSnO gold-plated) |
| Mechanical service life | 10 x 106 switching cycles |
| Operating altitude | ≤ 2000 m |
| Test button available | No |
| Colour | Transparent |
| UL94 flammability rating component |
|
| Insulation coordination according to | IEC 61810-1 |
| Rated voltage | 250 V |
| Pollution severity | 2 |
| Surge voltage category | III |
| Clearance and creepage distances for control side - load side | ≥ 8 mm |
| Dielectric strength for control side - load side | 4 kVeff / 1 min |
| Type of isolation at input and output | reinforced insulation |
| Dielectric strength of neighbouring contacts | 2.5 kVeff/ 1 min |
| Type of isolation at neighbouring contacts | Basic insulation |
| Dielectric strength of open contact | 1.5 kVeff /1 min. |
| Impulse withstand voltage at input and output | 10 kV (1.2/50 µs) |
| Impulse withstand voltage at neighbouring contacts | 5 kV (1.2/50 µs) |
| Protection degree | IP50 |
| Certificate No. (VDE) | 40056378 |
| Certificate No. (cURus) | E224238 |
| Wire connection method | Plug-in connection |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_245245) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2759040000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001437 |
| ETIM 7.0 | EC001437 |
| ETIM 8.0 | EC001437 |
| ETIM 9.0 | EC001437 |
| ECLASS 9.0 | 27-37-16-01 |
| ECLASS 9.1 | 27-37-16-01 |
| ECLASS 10.0 | 27-37-16-01 |
| ECLASS 11.0 | 27-37-16-01 |
| ECLASS 12.0 | 27-37-16-01 |
| ECLASS 13.0 | 27-37-16-01 |
| ECLASS 14.0 | 27-37-16-01 |
| Approvals |   |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E224238 |
