H4,0/22D ZH GR

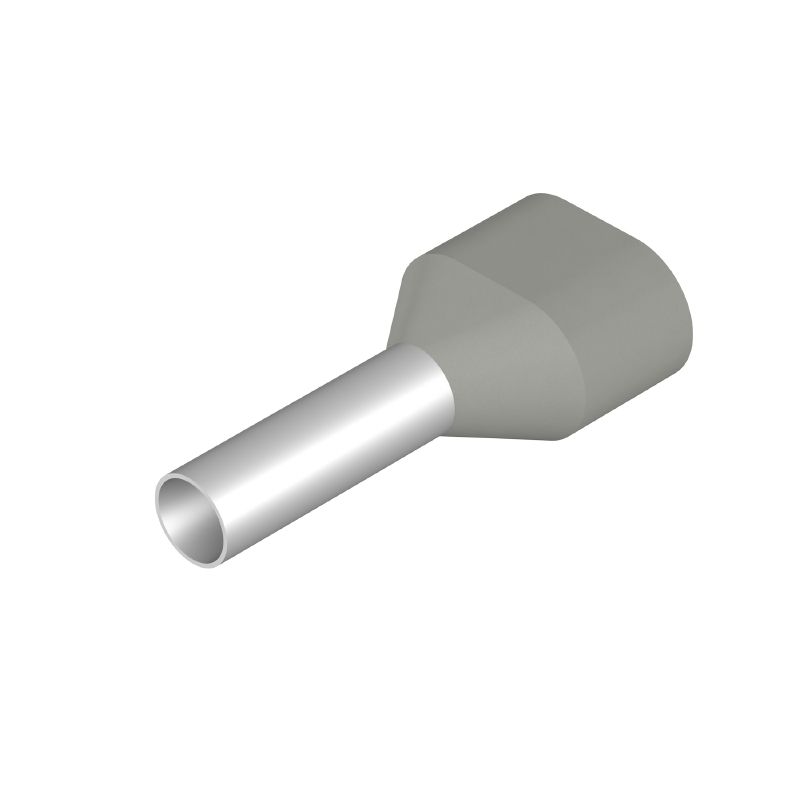

Wire-end ferrule, Twin wire-end ferrule, 15 mm, 12 mm, grey

Item No. 9037530000
Download data sheet Engineering Support Product Downloads
Is accessory of 10 Related products 4
Approvals General ordering data Dimensions and weights Environmental Product Compliance Dane techniczne Кабельные наконечники Classifications

Approvals

Zulassungen
![](https://assets.dam.weidmueller.com/assets/api/bd70fd7c-25a7-46d9-a404-2588bf18d09f/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/b770a92f-60fd-42c9-876f-9d6366f8928c/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
N° Certificato (cULus)
E499744

General ordering data

Versión
Wire-end ferrule, Twin wire-end ferrule, 15 mm, 12 mm, grey
주문 번호
9037530000
Type
H4,0/22D ZH GR
GTIN (EAN)
4008190493103
Qty.
100 items
Packaging
loose

Dimensions and weights

Net weight
0.42 g

Environmental Product Compliance

Stato conformità RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Dane techniczne

Ausführung
Двойной наконечник
Description of article
Twin wire end ferrule, grey

Кабельные наконечники

Barevný kód
DIN
Collar height (A)
9 mm
Collar width (B)
5.2 mm
Conductor cross-section
4 mm²
Contact surface diameter (D1)
3.5 mm
Contact surface length (L2)
12 mm
L1 in mm
22 mm
Metal sleeve thickness (S1)
0.2 mm
Plastic collar thickness (S2)
0.5 mm
Stripping length
15 mm
Wire connection cross section AWG, max.
AWG 12

Classifications

ETIM 8.0
EC000005
ETIM 9.0
EC000005
ETIM 10.0
EC000005
ECLASS 14.0
27-40-02-01
ECLASS 15.0
27-40-02-01
