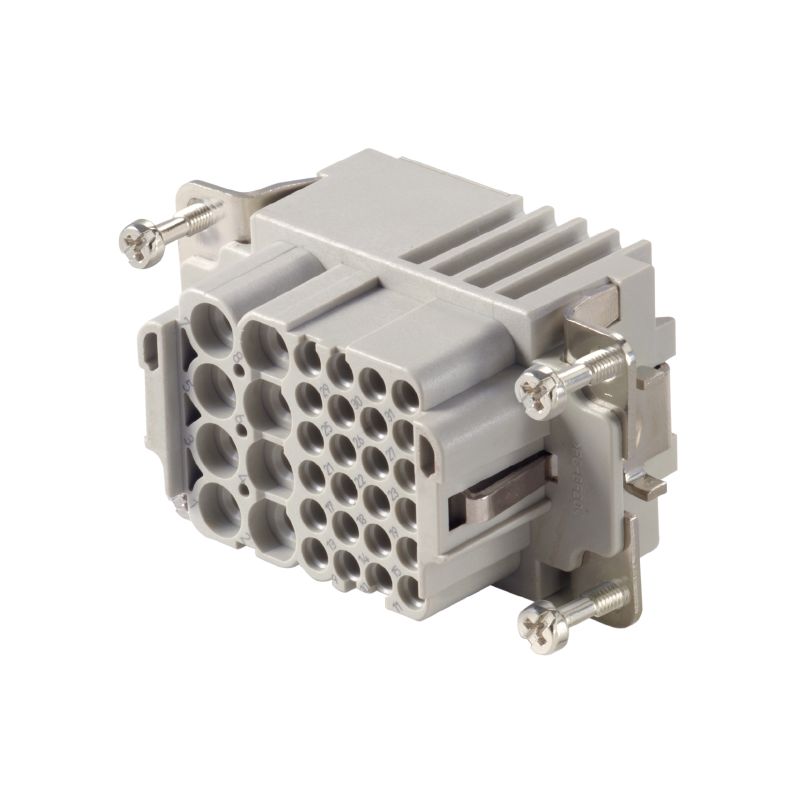

HDC S8/24 FC

HDC insert, Female, 400 V, 16 A, Number of poles: 32, Crimp connection, Size: 4

Tuotteen tunnus 1023270000

General ordering data

Version	HDC insert, Female, 400 V, 16 A, Number of poles: 32, Crimp connection, Size: 4
Order No.	1023270000
Type	HDC S8/24 FC
GTIN (EAN)	4032248739431
Qty.	1 items

Dimensions and weights

Depth	64 mm
Depth (inches)	2,52 inch
Height	37,8 mm
Height (inches)	1,488 inch
Width	34 mm
Width (inches)	1,339 inch
Net weight	48,4 g

Temperatures

Limit temperature

-40 °C ... 125 °C

Environmental Product Compliance

RoHS Compliance Status	Compliant without exemption
REACH SVHC	Potassium perfluorobutane sulfonate 29420-49-3
SCIP	1609748e-c278-4c9b-b3d1-e6215d2988cd
Chemical resistance	Substance: Acetone Chemical resistance: Resistant Substance: Ammonia, watery Chemical resistance: Conditionally resistant Substance: Petrol Chemical resistance: Resistant Substance: Benzene Chemical resistance: Resistant Substance: Diesel oil Chemical resistance: Conditionally resistant Substance: Acetic acid, concentrated Chemical resistance: Resistant Substance: Potassium hydroxide Chemical resistance: Conditionally resistant Substance: Methanol Chemical resistance: Conditionally resistant Substance: Motor oil Chemical resistance: Conditionally resistant Substance: Lye, diluted Chemical resistance: Resistant Substance: Hydrochlorofluorocarbons Chemical resistance: Conditionally resistant Substance: Outdoor use Chemical resistance: Conditionally resistant

Dimensions

Height of socket	37,8 mm
Total length base	64 mm
Width	34 mm

General data

BG	4
Colour	beige
Insulating material	PC glass-fibre reinforced (UL-listed and railway-certified)
Insulating material group	IIIa
Insulation strength	10¹⁰ Ω
Low smoke acc. DIN EN 45545-2	Yes
Material	Copper alloy
Number of poles	32
Number of power contacts	8
Number of signal contacts	24
Plugging cycles, gold	≥ 500
Plugging cycles, silver	≥ 500
Pollution severity	3
Power contact, type	HE
Rated current (DIN EN 61984)	16 A
Rated impulse voltage (DIN EN 61984)	4 kV
Rated voltage (DIN EN 61984)	400 V
Rated voltage according to UL/CSA	600 V AC/DC
Series	MixMate
Signal contact, type	HD
Size	4
Type	Female
Type of connection	Crimp connection
UL 94 flammability rating	V-0
Volume resistance	≤2 mΩ

Connection data PE

Blade size, slotted (PE connection)	SD 1.2 x 6.5
Connection type PE	Screw connection
Fixing screw	M 5
Rated cross-section	6 mm²
Stripping length PE connection	13 mm
Tightening torque, max. PE connection	2,5 Nm
Tightening torque, min. PE connection	2 Nm
Wire cross section, AWG (PE), max.	AWG 10
Wire cross section, AWG (PE), min.	AWG 20

Power contact

Clamping range, power contact, max.	4 mm²
Clamping range, power contact, min.	0,5 mm²
Number of poles, performance contact	8
Rated current (DIN EN 61984), power contact	16 A
Rated impulse voltage (DIN EN 61984), power contact	4 kV
Rated voltage (DIN EN 61984), power contact	400 V
Stripping length, performance contact	7,5 mm
Type of connection, power contact	Crimp connection

Signal contact

Clamping range, signal contact, max.	2,5 mm²
Clamping range, signal contact, min.	0,5 mm²
Number of poles, signal	24
Rated current (DIN EN 61984), signal	10 A
Rated current power circuit (cUR)	Wire connection cross section AWG: AWG 12 Rated current: 14 A Wire connection cross section AWG: AWG 14 Rated current: 10 A Wire connection cross section AWG: AWG 16 Rated current: 8,5 A Wire connection cross section AWG: AWG 18 Rated current: 6 A Wire connection cross section AWG: AWG 20 Rated current: 4 A
Rated current power circuit (UR)	Wire connection cross section AWG: AWG 12 Rated current: 16 A Wire connection cross section AWG: AWG 14 Rated current: 13 A Wire connection cross section AWG: AWG 16 Rated current: 10 A Wire connection cross section AWG: AWG 18 Rated current: 7 A Wire connection cross section AWG: AWG 20 Rated current: 5 A
Rated current signal circuit (cUR)	Wire connection cross section AWG: AWG 14 Rated current: 8 A Wire connection cross section AWG: AWG 16 Rated current: 8 A Wire connection cross section AWG: AWG 18 Rated current: 7 A Wire connection cross section AWG: AWG 20 Rated current: 5 A Wire connection cross section AWG: AWG 22 Rated current: 3 A
Rated current signal circuit (UR)	Wire connection cross section AWG: AWG 14 Rated current: 10 A Wire connection cross section AWG: AWG 16 Rated current: 8 A Wire connection cross section AWG: AWG 18 Rated current: 7 A Wire connection cross section AWG: AWG 20 Rated current: 5 A Wire connection cross section AWG: AWG 22 Rated current: 3 A
Rated impulse voltage (DIN EN 61984), signal	2,5 kV
Rated voltage (DIN EN 61984), signal contact	160 V
Stripping length, signal	8 mm
Type of connection, signal	Crimp connection

Version

BG	4
Conductor cross-section, max.	4 mm²
Conductor cross-section, min.	0,5 mm²
Material	Copper alloy
Size	4
Stripping length, rated connection	7,5 mm
Type of connection	Crimp connection
Volume resistance	≤2 mΩ
Wire connection cross section AWG, max.	AWG 12
Wire connection cross section AWG, min.	AWG 20
Wire connection cross section, finely stranded, max.	6 mm²
Wire connection cross section, finely stranded, min.	0,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.	6 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.	0,5 mm²
Wire cross-section, solid, max.	6 mm²
Wire cross-section, solid, min.	0,5 mm²

Downloads

Approval/Certificate/Document of Conformity	Manufacturer's declaration
Engineering Data	CAD data -- STEP
Eplan Data Portal	Eplan data
CADENAS eCATALOG	CAX data
Catalogues	Catalogues in PDF-format
Brochures	FL FIELDWIRING EN FL FIELDWIRING EN

Classifications

ETIM 6.0	EC000438
ETIM 7.0	EC000438
ETIM 8.0	EC000438
ETIM 9.0	EC000438
ETIM 10.0	EC000438
ECLASS 9.0	27-44-02-05
ECLASS 9.1	27-44-02-05
ECLASS 10.0	27-44-02-05
ECLASS 11.0	27-44-02-05
ECLASS 12.0	27-44-02-05
ECLASS 13.0	27-44-02-05
ECLASS 14.0	27-44-02-05
ECLASS 15.0	27-44-02-05

Approvals

Approvals
ROHS	Conform
UL File Number Search	UL Website
Certificate No. (cURus)	E92202
