SAIL-M8BW-4L20V
SAIL-M8BW-4L20V
Dimensioned drawing
Angled socket
SAIL-M8BW-4L20V
Pole scheme
Socket
SAIL-M8BW-4L20V
Wiring diagram

SAIL-M8BW-4L20V

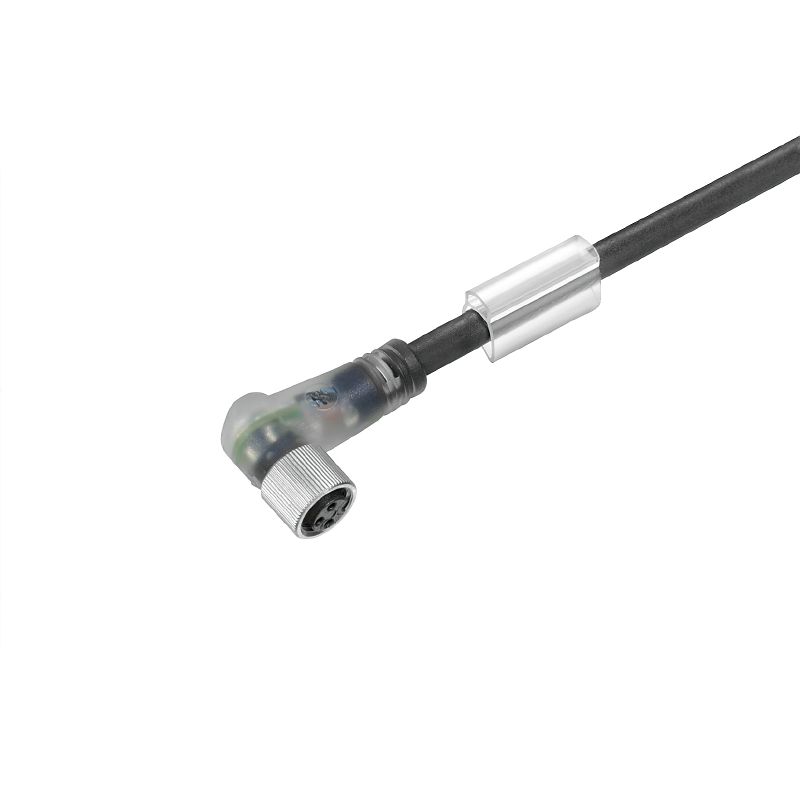

Sensor/actuator line, One end without connector, M8, Number of poles : 4, 20 m, Socket, angled, Shielded: No, LED: Yes, Sheath material: PVC, Halogen: Yes

Ürün No. 1927362000
Veri sayfasını indir Mühendislik desteği
Aksesuarlar 7 İlgili ürünler 6
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Electrical properties General standards Standards Plug, left Plug, right Product images Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/a5387a11-3584-42f1-9c6a-815af76ec080/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (UL)
E307231

General ordering data

Version
Sensor/actuator line, One end without connector, M8, Number of poles : 4, 20 m, Socket, angled, Shielded: No, LED: Yes, Sheath material: PVC, Halogen: Yes
Order No.
1927362000
Tipo
SAIL-M8BW-4L20V
GTIN (EAN)
4050118190908
Qty.
1 adet

Dimensions and weights

Net weight
595,76 g

Environmental Product Compliance

Stav souladu se směrnicí RoHS
Compliant with exemption
RoHS Exemption (if applicable/known)
6c, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Technical specifications for cable

Cable length
20 m
Colour coding
brown
white
blue
black
Configurable cable length
No
Core cross-section
0,25 mm²
Halogen
Yes
Insulation
PVC
Irradiation crosslinked
No
Number of poles
4
Outer cladding in accordance with UL AWM style
2464 (80 °C / 300 V)
Outside diameter
4.8 mm ± 0.2 mm
Resistant to welding beads
No
Sheath material
PVC
Sheathing colour
black
Shielded
No
Suitable for cable carriers
No
Temperature range, moving
-5...80 °C
Temperature range, stationary
-30...80 °C
Torsion resistance
0 °/m
Welding spark resistance
No

General technical data

Housing main material
PUR
Isolationswiderstand
108 Ω
jumpered
No
Kódování
A-coded
LED
Yes
Material del anillo roscado
Brass, nickel-plated
Nennspannung
24 V
Nennstrom
4 A
Par de apriete
M8: 0.5 - 0.6 Nm
Plugging cycles
≥ 100
Pollution severity
3
Povrch kontaktu
Gold-plated
Připojovací závit
M8
Rango de temperatura caja
-25…+85 °C
Schutzart
IP67
IP68
when screwed in
IP65
IP66
Verze
Socket, angled

Electrical properties

Insulation resistance
108 Ω
Nominal voltage
24 V

General standards

Certificate No. (UL)
E307231
Connector standard
IEC 61076-2-104

Standards

Connector standard
IEC 61076-2-104

Plug, left

Plug left
M8, IP69, female contact, angled 90°, Plastic, LED, unshielded

Plug, right

Plug right
free conductor end

Product images

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
