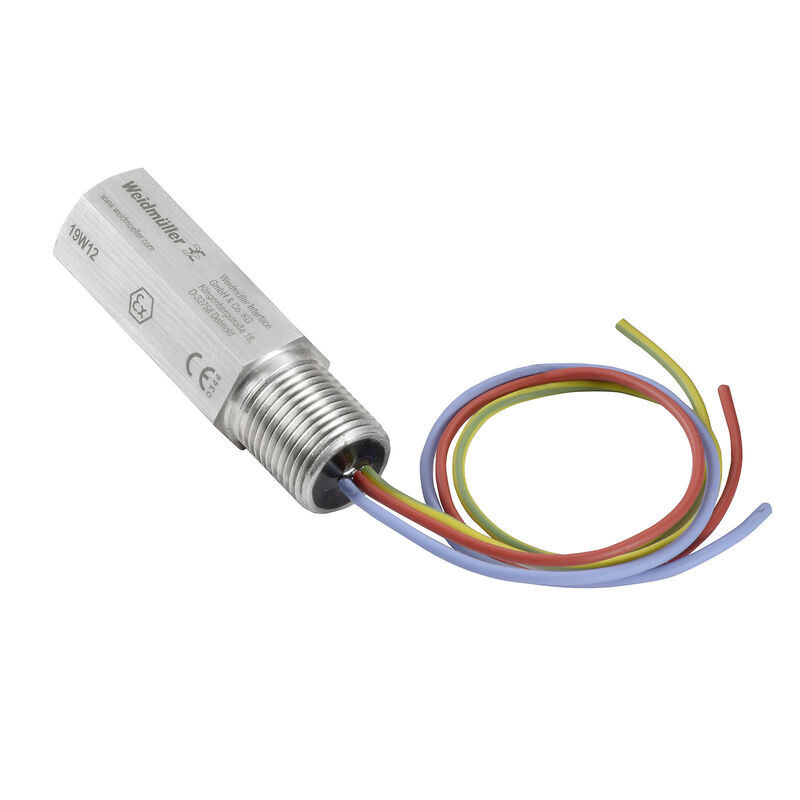

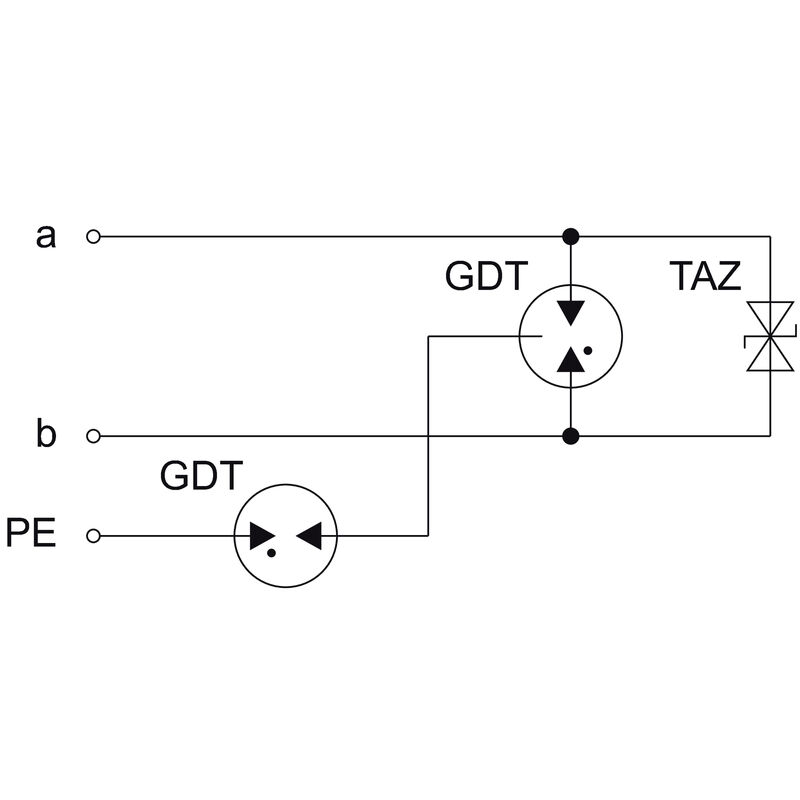

VCG 24V EX 2 G 1/2
VCG 24V EX 2 G 1/2
VCG 24V EX 2 G 1/2

VCG 24V EX 2 G 1/2

Tuotteen tunnus 2593160000
Lataa tietosivu Product Downloads
Samankaltaiset tuotteet 6
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Protection Ex - Data General data Rated data IEC / EN Connection data General data Ratings IECEx/ATEX/cUL Guarantee Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319213/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319217/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319240/-S800/-T1z1mm-S80)
ROHS
Conform

General ordering data

Order No.
2593160000
Type
VCG 24V EX 2 G 1/2
GTIN (EAN)
4050118605143
Qty.
1 items

Dimensions and weights

Height
24 mm
Height (inches)
0,945 inch
Height of lowest version
54 mm
Width
24 mm
Width (inches)
0,945 inch
Length
78 mm
Length (inches)
3,071 inch
Diameter
28 mm
Net weight
180 g

Temperatures

Storage temperature
-30 °C...60 °C
Operating temperature
-30 °C...60 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant
REACH SVHC
No SVHC above 0.1 wt%

Protection Ex - Data

ATEX - dust labelling
IEC Ex BAS 18.0085X
Ex ia IIIC T85 °C Da
(-30 °C≤Ta≤50 °C)
ATEX - gas labelling
18ATEX0141X
II 1GD
Ex ia II T6 Ga
(-30 °C≤Ta≤50 °C)
Input power, max. PI
2 W
Input voltage, max. Ui
50 V
Input current, max. Ii
0,8 A
Internal capacity, max. CI
0 nF
Internal inductance, max. LI
60 µH

General data

Colour
silver
Design
straight
G 1/2 (BSP 1/2)
FIELD BUS FOUNDATION BUS H1 compatible
According to IEC 61158-2
Protection degree
IP67
Segment
Measurement - Monitoring - Setting
Version
Stainless steel screw mounting housing

Rated data IEC / EN

Dielectric strength at FG against PE
≥ 500 V
Discharge current Imax (8/20µs) wire-PE
10 kA
Discharge current Imax (8/20µs) wire-wire
10 kA
Discharge current In (8/20µs) wire-wire
5 kA
Frequency range, min.
0 Hz
Input voltage, max. Ui
50 V
Insertion loss
30 MHz
Lightning test current, Iimp (10/350 µs) Wire-PE
1 kA
Lightning test current, Iimp (10/350 µs) wire-wire
1 kA
Rated voltage (DC)
24 V
Rated voltage (DC), max.
33 V
Requirements category acc. to IEC 61643-21
D1
C1
C2
C3
Response time / fallback time
< 1 ns
Standards
IEC 61643-21
IEC 60079-0
IEC 60079-11

Connection data

Cross-section
1 mm²
Wire connection method
Cable length: 250 mm (min.)

General data

Protection degree
IP67
Colour
silver

Ratings IECEx/ATEX/cUL

ATEX - dust labelling
IEC Ex BAS 18.0085X
Ex ia IIIC T85 °C Da
(-30 °C≤Ta≤50 °C)
ATEX - gas labelling
18ATEX0141X
II 1GD
Ex ia II T6 Ga
(-30 °C≤Ta≤50 °C)
Marking EN 60079
Ex ec nC IIC T4 Gc

Guarantee

Time interval
5 years

Classifications

ETIM 7.0
EC000943
ETIM 8.0
EC000943
ETIM 9.0
EC000943
ETIM 10.0
EC000943
ECLASS 12.0
27-17-15-02
ECLASS 13.0
27-17-15-02
ECLASS 14.0
27-17-15-02
ECLASS 15.0
27-17-15-02
