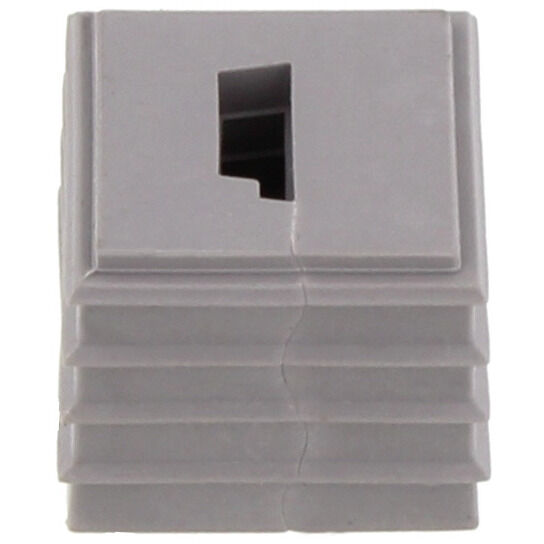

CABTITE SE 1/ASI SML GY
Similar to illustration

CABTITE SE 1/ASI SML GY

실링 요소, Cabtite (케이블 인입 시스템), TPE, 밝은 회색, 높이: 20.3 mm, 너비: 20.3 mm, 깊이: 17.7 mm, -40 °C…90 °C, IP66

Tuotteen tunnus 2584810000
Lataa tietosivu Engineering Support Product Downloads
On lisävaruste 1 Samankaltaiset tuotteet 30
Agréments 일반 주문 데이터 Méretek és tömegek Temperatures 환경 제품 규정 준수 Všeobecné informace Classifications

Agréments

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E223801

일반 주문 데이터

Version
실링 요소, Cabtite (케이블 인입 시스템), TPE, 밝은 회색, 높이: 20.3 mm, 너비: 20.3 mm, 깊이: 17.7 mm, -40 °C…90 °C, IP66
Order No.
2584810000
Type
CABTITE SE 1/ASI SML GY
GTIN (EAN)
4050118616118
Qty.
10 items

Méretek és tömegek

Depth
17,7 mm
Głębokość (cale)
0,697 inch
Height
20,3 mm
Height (inches)
0,799 inch
Width
20,3 mm
Width (inches)
0,799 inch
Net weight
6,4 g

Temperatures

Operating temperature
-40 °C...90 °C

환경 제품 규정 준수

RoHS Compliance Status
준수, 예외 미존재
REACH SVHC
No SVHC above 0.1 wt%

Všeobecné informace

Basic material
TPE
Halogen
No
Protection degree
IP66
Sealing element
1 small sealing element
Silicone
No
UL 94 flammability rating
V-0

Classifications

ETIM 8.0
EC000879
ETIM 9.0
EC000879
ETIM 10.0
EC000879
ECLASS 14.0
27-14-08-07
ECLASS 15.0
27-14-08-07
