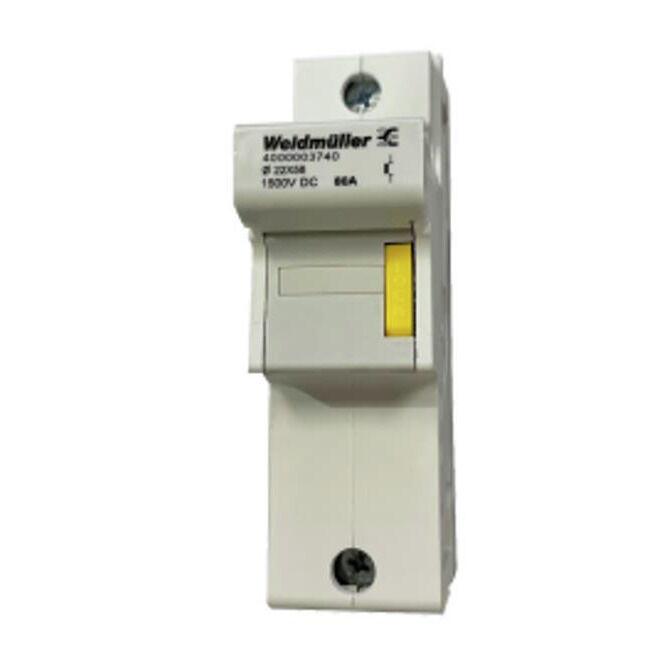

FUSEHOLDER WSFH 22X58 1K5V 80A

FUSEHOLDER WSFH 22X58 1K5V 80A

Photovoltaics, Fuse holder, 1500 V, 22x58, Without LED

Product ID 4000003740
Gegevensblad downloaden Engineering Support Product Downloads
Toebehoren 6 Verwante producten 1
General ordering data Dimensions and weights Temperatures Environmental Product Compliance Fuse holder connection Fuse holder technical data Classifications

General ordering data

Version
Photovoltaics, Fuse holder, 1500 V, 22x58, Without LED
Order No.
4000003740
Type
FUSEHOLDER WSFH 22X58 1K5V 80A
GTIN (EAN)
8430243427135
Qty.
6  items

Dimensions and weights

Depth
76,8  mm
Depth (inches)
3,024  inch
Height
126  mm
Height (inches)
4,961  inch
Width
35,6  mm
Width (inches)
1,402  inch
Net weight
100  g

Temperatures

Continuous operating temp., min.
-50  °C
Continuous operating temp., max.
90  °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Fuse holder connection

Number of connections
2
Stripping length
14  mm
Tightening torque, max.
2,8  Nm
Tightening torque, min.
2  Nm
Type of connection
Screw connection
Wire material
Copper
Wire connection cross section AWG, min.
AWG 17
Wire connection cross section AWG, max.
AWG 2
Wire connection cross section, finely stranded, min.
1  mm²
Wire connection cross section, finely stranded, max.
35  mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
1  mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
35  mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
1  mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
35  mm²
Wire connection cross-section, solid core, min.
1  mm²
Wire connection cross-section, solid core, max.
35  mm²

Fuse holder technical data

Cartridge fuse
22 x 58 mm
Colour
white
Display
Without LED
Fuse holder (cartridge holder)
Pivoting
Max. current
80 A
Number of potentials
1
Power dissapation, max.
12,5  W
Rail
TS 35
Rated impulse withstand voltage
6 kV
Surge voltage category
III
Type of mounting
TS 35

Classifications

ETIM 6.0
EC000899
ETIM 7.0
EC000899
ETIM 8.0
EC000899
ETIM 9.0
EC000899
ETIM 10.0
EC000899
ECLASS 9.0
27-14-11-16
ECLASS 9.1
27-14-11-16
ECLASS 10.0
27-14-11-16
ECLASS 11.0
27-14-11-16
ECLASS 12.0
27-14-11-16
ECLASS 13.0
27-25-01-13
ECLASS 14.0
27-25-01-13
ECLASS 15.0
27-25-01-13
