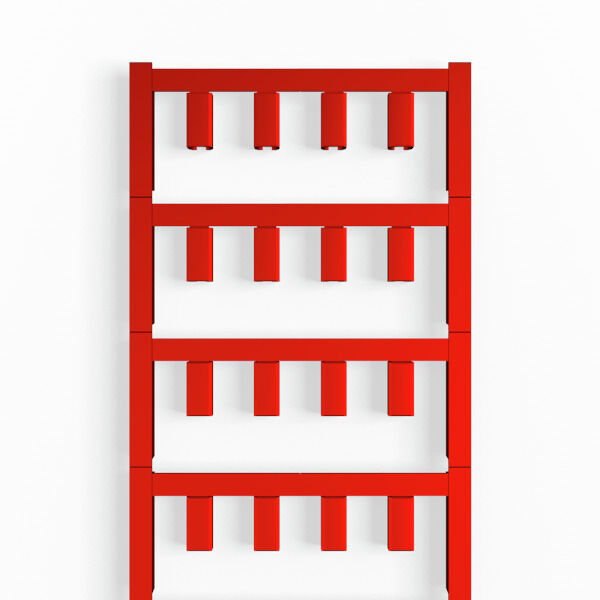

SlimFix, Conductor and cable markers, 3.6 - 6 mm, 12 x 5.7 mm, red

Produkt ID 1919570000
Download datablad Engineering-support Produktdownloads
Anvendte produkter 7
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance 일반 데이터 컨덕터 및 케이블 마커 Classifications

Approvals

ROHS
Conform

General ordering data

Version
SlimFix, Conductor and cable markers, 3.6 - 6 mm, 12 x 5.7 mm, red
Order No.
1919570000
Type
SF 4/12 MC NE RT V2
GTIN (EAN)
4032248555949
Qty.
128 Styk

Dimensions and weights

Depth
6,1 mm
Depth (inches)
0,24 inch
Height
12 mm
Height (inches)
0,472 inch
Width
5,7 mm
Width (inches)
0,224 inch
Net weight
0,648 g

Temperatures

Operating temperature range
-40...100 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Product Carbon Footprint
  • Cradle to gate:
    0.004 kg CO2 eq.

일반 데이터

Alapanyag
폴리아미드 66
Anchura
5,7 mm
Classe d'inflammabilité selon UL 94
V-2
Dimensioni del campo di siglatura
12 x 5.7 mm
Halogén
아니요
Materialfarbe nach Widerstandskode
2
Numero di marcatori per unità di imballaggio
  • 공급 형태:
    MultiCard
Plage de température d'utilisation, max.
100 °C
Szín
빨간색
Type of printing
neutralna
Üzemi hőmérsékleti tartomány
-40...100 °C
Üzemi hőmérsékleti tartomány, min.
-40 °C
권장 산업
Transportväsende
Maskinbyggnad
콤비네이션당 마커 개수
1 MultiCard = Conductor and cable markers
호환 가능 프린터
[PRINTJET CONNECT](~/p/2715590000)

컨덕터 및 케이블 마커

Conductor cross-section, max.
4 mm²
Conductor cross-section, min.
2,5 mm²
Conductor O.D., max.
6 mm
Conductor O.D., min.
3,6 mm
Halogen
아니요
Průřez připojeného vodiče
2.5 - 4 mm²
Vnější prům. vodiče
3.6 - 6 mm

Classifications

ETIM 8.0
EC001530
ETIM 9.0
EC001530
ETIM 10.0
EC001530
ECLASS 14.0
27-28-11-02
ECLASS 15.0
27-28-11-02
