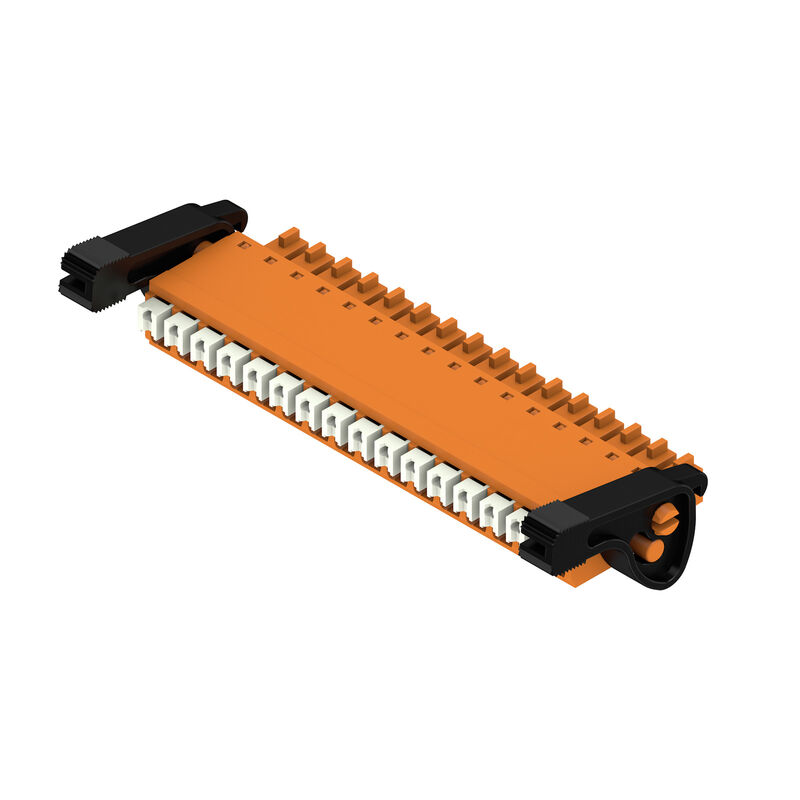

PCB plug-in connector, female plug, 3.81 mm, Number of poles: 16, 180°, PUSH IN with push button, Clamping range, max. : 1.5 mm², Box

Item No. 2442740000
Download data sheet Engineering Support Product Downloads
Related products 31
Approvals General ordering data Dimensions and weights Environmental Product Compliance Systemvärden 材料数据 Przewody pasujące do złącza Rated data acc. to IEC Rated data acc. to CSA Rated data acc. to UL 1059 Packing Type tests Important note Classifications

Approvals

Omologazioni
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Núm. de certificación (cURus)
E60693

General ordering data

Versione
PCB plug-in connector, female plug, 3.81 mm, Number of poles: 16, 180°, PUSH IN with push button, Clamping range, max. : 1.5 mm², Box
Číslo objednávky
2442740000
Tipo
BCF 3.81/16/180LR SN OR BX
GTIN (EAN)
4050118543162
Qty.
50 items
Product data
IEC: 320 V / 17.5 A / 0.14 - 1.5 mm²
UL: 300 V / 10 A / AWG 26 - AWG 16
Packaging
Box

Dimensions and weights

Profondità
28,45 mm
Profundidad (pulgadas)
1,12 inch
Posizione verticale
15,09 mm
Height (inches)
0,594 inch
Larghezza
71,55 mm
Width (inches)
2,817 inch
Peso netto
11,88 g

Environmental Product Compliance

Stato conformità RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Systemvärden

Famiglia prodotti
OMNIMATE Signal - series BC/SC 3.81
Tipo di collegamento
Field connection
Tecnica di collegamento cavi
PUSH IN with push button
Passo in mm (P)
3,81 mm
Passo in pollici (P)
0,15 "
Direzione d'uscita del conduttore
180°
Numero di poli
16
L1 in mm
57,15 mm
L1 in pollici
2,25 "
quantità di file
1
Numero di serie di poli
1
Sezione di dimensionamento
1 mm²
Protección contra contacto según DIN VDE 57106
Safe from finger touch
Protezione da contatto accidentale secondo DIN VDE 0470
IP20 plugged/ IP10 unplugged
Protection degree
IP20
Resistenza di passaggio
≤5 mΩ
Codificabile
Yes
Longitud de desaislado
9 mm
Screwdriver blade
0.4 x 2.5
Screwdriver blade standard
DIN 5264
Plugging cycles
25
Plugging force/pole, max.
8 N
Pulling force/pole, max.
7 N

材料数据

Materiales aislantes
PA 66 GF 30
Color
orange
Color componentes de accionamiento
white
Colour chart (similar)
RAL 2000
Insulating material group
II
Índice de resistencia al encaminamiento eléctrico (CTI)
≥ 550
Resistencia del aislamiento
≥ 108 Ω
UL 94 flammability rating
V-0
Contact material
Copper alloy
Contact surface
tinned
Layer structure of plug contact
4...8 µm Sn matt
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
-50 °C
Operating temperature, max.
120 °C
Temperature range, installation, min.
-25 °C
Temperature range, installation, max.
120 °C

Przewody pasujące do złącza

Campo di sezioni, min.
0,14 mm²
Campo di sezioni, max.
1,5 mm²
Sezione di collegamento cavo AWG, min.
AWG 26
Sezione di collegamento cavo AWG, max.
AWG 16
Rígido, mín. H05(07) V-U
0,14 mm²
Solid, max. H05(07) V-U
1,5 mm²
Flexible, min. H05(07) V-K
0,14 mm²
Flexible, max. H05(07) V-K
1,5 mm²
con terminale AEH con collare DIN 46 228/4, min.
0,25 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.
1 mm²
con terminal tubular, DIN 46228 pt 1, mín.
0,25 mm²
w. wire end ferrule, DIN 46228 pt 1, max.
1,5 mm²
Calibre macho de conformidad con la norma EN 60999 a x b; ø
2.4 mm x 1.5 mm; 1.9mm
Clampable conductor
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      9025870000
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      9004050000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,75 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      9025860000
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      0542500000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      1 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      9019100000
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      0282800000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,34 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      9025770000
Reference text
The outside diameter of the plastic collar should not be larger than the pitch (P)
Length of ferrules is to be chosen depending on the product and the rated voltage.

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Corriente nominal, número de polos mín. (Tu=20 °C)
17,5 A
Rated current, max. number of poles (Tu=20°C)
17,5 A
Rated current, min. number of poles (Tu=40°C)
17,5 A
Rated current, max. number of poles (Tu=40°C)
16,3 A
Bemessungsspannung bei Überspannungsk./Verschmutzungsgrad II/2
320 V
Rated voltage for surge voltage class / pollution degree III/2
160 V
Tensión nominal con categoría de sobretensión/grado de polución III/3
160 V
Rated impulse voltage for surge voltage class/ pollution degree II/2
2,5 kV
Tensión nominal con categoría de sobretensión/grado de polución III/2
2,5 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3
2,5 kV
Short-time withstand current resistance
3 x 1s with 76 A

Rated data acc. to CSA

Tensione nominale (Gruppo B / CSA)
300 V
Tensione nominale (Gruppo C / CSA)
50 V
Tensione nominale (Gruppo D / CSA)
300 V
Corrente nominale (Gruppo B / CSA)
10 A
Corrente nominale (Gruppo D / CSA)
10 A
Sezione di collegamento cavo AWG, min.
AWG 26
Sezione di collegamento cavo AWG, max.
AWG 16

Rated data acc. to UL 1059

Istituto (cURus)
CURUS
N° certificato (cURus)
E60693
Tensione nominale (Gruppo B / UL 1059)
300 V
Tensione nominale (Gruppo D / UL 1059)
300 V
Corrente nominale (Gruppo B / UL 1059)
10 A
Corrente nominale (Gruppo D / UL 1059)
10 A
Sezione di collegamento cavo AWG, min.
AWG 26
Sezione di collegamento cavo AWG, max.
AWG 16
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Packing

Imballaggio
Box
Lunghezza VPE
290 mm
Larghezza VPE
270 mm
Altezza VPE
60 mm

Type tests

Test: Innesto errato (Non intercambiabilità)
  • Test:
    visual examination
  • Evaluation:
    passed

Important note

Conformità IPC
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Note
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • Rated current related to rated cross-section & min. No. of poles.
  • P on drawing = pitch
  • Conductors suitable for connection: 1.5 mm² with wire-end ferrule with plastic collar, DIN 46 228/1, with a rated voltage of 125V/2.5 kV with III/3 or 250 V/2.5 kV with II/2
  • Crimp shape A for wire-end ferrules with crimping tools PZ 1,5 (order no. 9005990000) or PZ 6/5 (order no. 9011460000) for larger wire cross-sections recommended.
  • Wire end ferrule without plastic collar to DIN 46228/1
  • Wire end ferrule with plastic collar to DIN 46228/4
  • The test point can only be used as potential-pickup point.
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002638
ETIM 9.0
EC002638
ETIM 10.0
EC002638
ECLASS 14.0
27-46-02-02
ECLASS 15.0
27-46-02-02
