Ominaisuudet
| Version | Accessories, Marker holder |
| Order No. | 1805520000 |

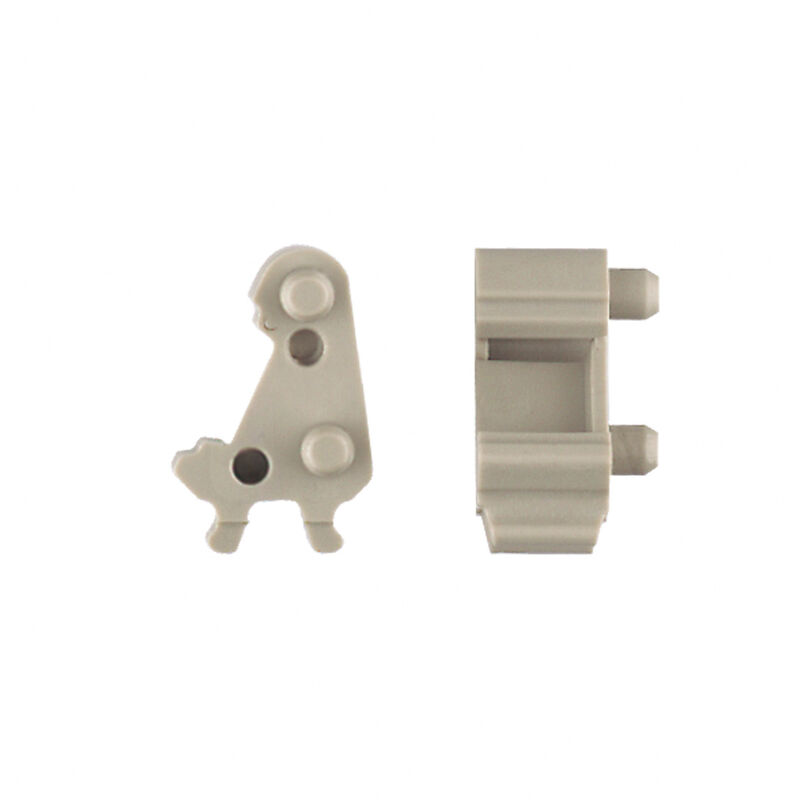

| Type | BZT 1 ZA WS 10/5 |
| GTIN (EAN) | 4032248270248 |
| Qty. | 100 items |
| Depth | 11,7 mm |
| Depth (inches) | 0,461 inch |
| 7,55 mm | |
| Height (inches) | 0,297 inch |
| Width | 5,07 mm |
| Width (inches) | 0,2 inch |
| Net weight | 0,224 g |
| Storage temperature | -25 °C...55 °C |
| Ambient temperature | -5 °C…40 °C |
| Operating temperature | -40 °C...100 °C |
| Continuous operating temp., min. | −40 °C |
| Continuous operating temp., max. | 100 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Colour | dark beige |
| Material | Polyamide 66 |
| Operating temperature range, max. | 100 °C |
| Operating temperature range, min. | −40 °C |
| UL 94 flammability rating | V-2 |
| Version | For the terminals |
| Width | 5,07 mm |
| Pitch in mm (P) | 5 mm |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_63974) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1805520000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1805520000) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](https://www.weidmueller.com/int/service/technical_product_catalogues.jsp) |
| Brochures | [CAT 1 TERM 16/17 EN](http://download.weidmueller.com/asset/download/file/39470) |
| ETIM 6.0 | EC002848 |
| ETIM 7.0 | EC002848 |
| ETIM 8.0 | EC002848 |
| ETIM 9.0 | EC002848 |
| ECLASS 9.0 | 27-14-11-92 |
| ECLASS 9.1 | 27-14-11-92 |
| ECLASS 10.0 | 27-14-11-92 |
| ECLASS 11.0 | 27-14-11-92 |
| ECLASS 12.0 | 27-14-11-92 |
| ECLASS 13.0 | 27-14-11-92 |
| ECLASS 14.0 | 27-14-11-92 |
| ROHS | Conform |
