DRMKITP115VAC 4CO LD/PB

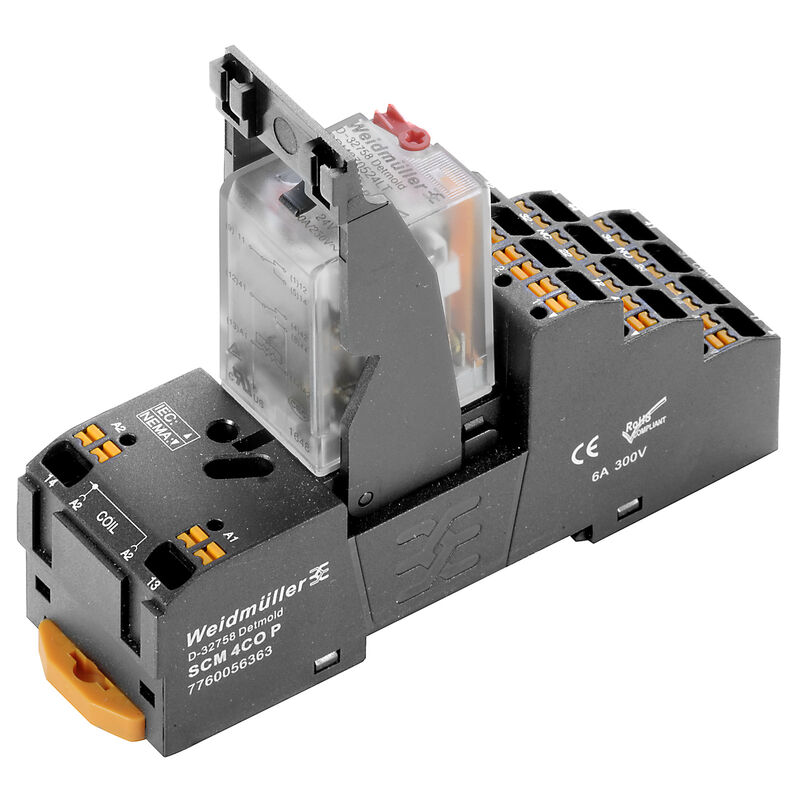

Produktillustration
Avbildning liknande
DRMKITP115VAC 4CO LD/PB

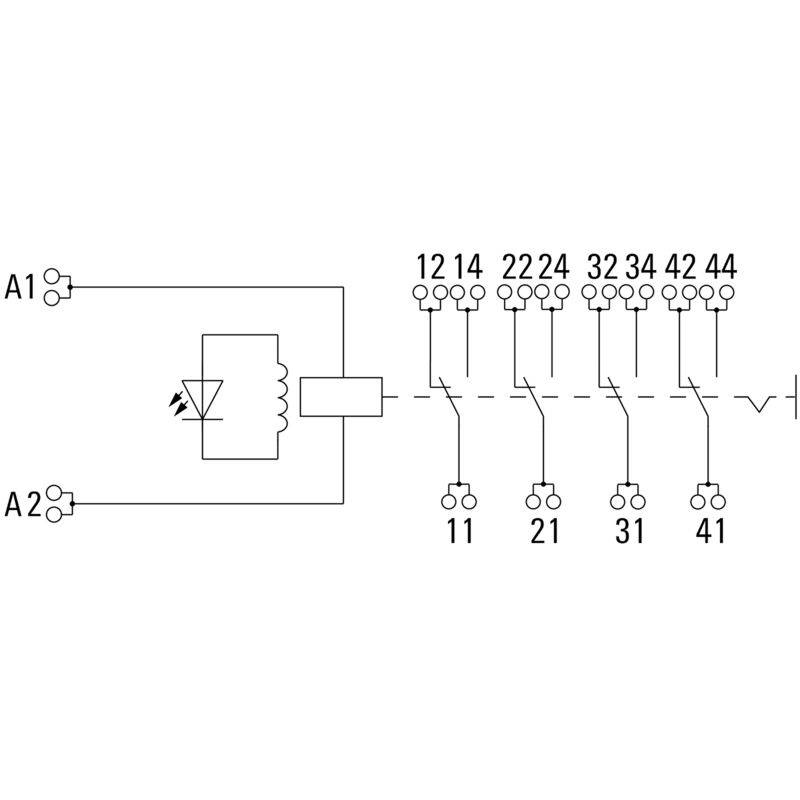

Kopplingsbild
DRMKITP115VAC 4CO LD/PB
Graph
DC-lastgränskurva
Ohmsk last
DRMKITP115VAC 4CO LD/PB
Graph
Elektrisk livslängd
DRMKITP115VAC 4CO LD/PB
Graph
Deratingkurva
DRMKITP115VAC 4CO LD/PB
Graph
AC-driftspänningsområde
DRMKITP115VAC 4CO LD/PB

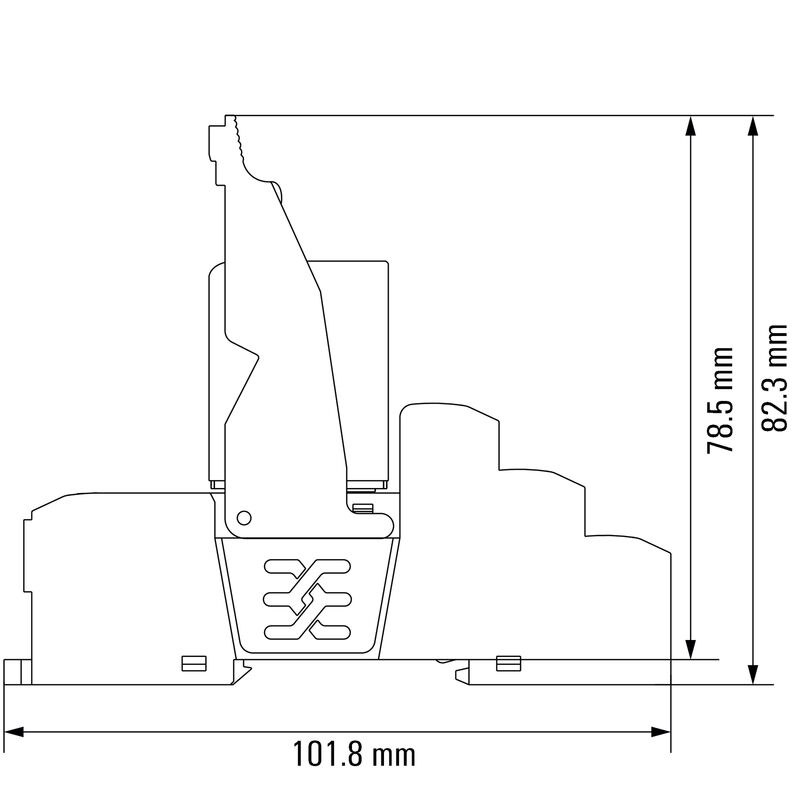

Dimensional drawing
Relä i kombination med sockel
DRMKITP115VAC 4CO LD/PB
Miscellaneous
Typnycklar

DRMKITP115VAC 4CO LD/PB

D-SERIES DRM, Relay module, Number of contacts: 4, CO contact AgNi flash gold-plated, Rated control voltage: 115 V AC, Continuous current: 5 A, PUSH IN, Test button available: Yes

Product ID 2576020000
Openen in configurator
Gegevensblad downloaden Engineeringondersteuning Productdownloads
Toebehoren 14 Afzonderlijke onderdelen 3 Verwante producten 8
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Control side Load side General data Insulation coordination Further details of approvals / standards Connection data Classifications

Approvals

Godkännanden
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Utförande
D-SERIES DRM, Relay module, Number of contacts: 4, CO contact AgNi flash gold-plated, Rated control voltage: 115 V AC, Continuous current: 5 A, PUSH IN, Test button available: Yes
Art.nr.
2576020000
Typ
DRMKITP115VAC 4CO LD/PB
GTIN (EAN)
4050118585773
Qty.
10 items

Dimensions and weights

Djup
82,3 mm
Depth (inches)
3,24 inch
Höjd
101,8 mm
Height (inches)
4,008 inch
Bredd
30,6 mm
Szerokość (cale)
1,205 inch
Nettovikt
109,174 g

Temperatures

Lagertemperatur
-40 °C...70 °C
Omgivningstemperatur
-40 °C…55 °C
Humidity
35...85 % rel. humidity, no condensation

Environmental Product Compliance

RoHS-kompatibilitetsstatus
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Control side

Rated control voltage
115 V AC
Rated current AC
12.6 mA (50 Hz)
10.8 mA (60 Hz)
Märkeffekt
1.0...1.2VA (60HZ)
Tekercsellenállása
4340 Ω ± 10 %
Status indicator
red LED

Load side

Номинальное напряжение переключения
250 V AC
Normalspänning
5 A
정격 부하 시 최대 스위칭 주파수
0,1 Hz
Max. switching voltage, AC
250 V
Min. switching power
10 mA @ 12 V
100 mA @ 5 V
Inkopplingsströmmen
10 A / 50 ms
AC switching capacity (resistive), max.
1250 VA
DC switching capacity (resistive), max.
120 W @ 24 V
Inkopplingsfördröjning
<20 ms
Switch-off delay
<20 ms
Contact type
4 CO contact (AgNi flash gold-plated)
Mechanical service life
20 x 106 switching cycles

General data

Montageskena obestyckad
TS 35
Testknapp finns
Yes
Version of test button
Lockable test button
Momentary test button
Mekanisk indikator för brytarläge
Yes
Colour
black
UL94 flammability rating component
  • Component:
    Housing
  • UL94 flammability rating:
    V-2
  • Component:
    Pusher
  • UL94 flammability rating:
    HB
  • Component:
    Mounting foot
  • UL94 flammability rating:
    HB
  • Component:
    Retaining clip
  • UL94 flammability rating:
    HB
  • Component:
    Relay cover
  • UL94 flammability rating:
    V-2
  • Component:
    Relay baseplate
  • UL94 flammability rating:
    V-0
  • Component:
    Relay status indicator
  • UL94 flammability rating:
    HB
  • Component:
    Relay test button
  • UL94 flammability rating:
    HB

Insulation coordination

Märkspänning
250 V
Nedsmutsningsgrad
2
Överspänningskategori
III
Insulating material group
C
Hézag és kúszóút, vezérlő oldala - terhelés oldal
≥ 3 mm
Spänningstålighet styrsida - lastsida
1.8 kVeff /1 min.
인근 접점의 절연 강도
1 kVeff / 1 min
Dielectric strength of open contact
1 kVeff / 1 min
Protection degree
IP20

Further details of approvals / standards

Certificate no. (cURus) relay
E312083
Certifikat-nr (cURus) bas
E355547

Connection data

Ledaranslutningsteknik
PUSH IN
Avisoleringslängd nominellt
10 mm
Clamping range, rated connection
1,5 mm²
Clamping range, min.
0,14 mm²
Clamping range, max.
1,5 mm²
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section AWG, max.
AWG 16
Wire cross-section, solid, min.
0,14 mm²
Wire cross-section, solid, max.
1,5 mm²
Wire connection cross section, finely stranded, min.
0,14 mm²
Wire connection cross section, finely stranded, max.
1,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,14 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
1 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), min.
0,14 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), max.
1,5 mm²
Blade size
0.4 x 2.5 mm

Classifications

ETIM 8.0
EC001437
ETIM 9.0
EC001437
ETIM 10.0
EC001437
ECLASS 14.0
27-37-16-01
ECLASS 15.0
27-37-16-01
