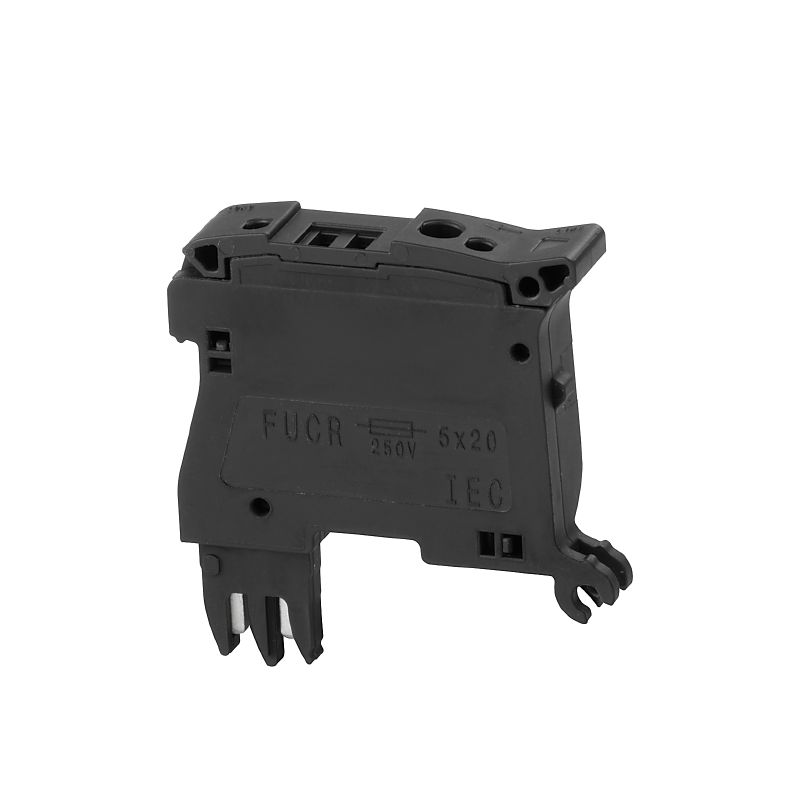

Product image

FUCR SW

Fuse holder for feed-through modular terminal, black, 6.3 A, Pivoting, pluggable, V-0, Wemid

Product ID 1167630000
Gegevensblad downloaden Engineering Support Product Downloads
Est un accessoire de 4 Autres produits de la même gamme 72
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data System specifications Additional technical data General Classifications

Approvals

ROHS
Conform

General ordering data

Version
Fuse holder for feed-through modular terminal, black, 6.3 A, Pivoting, pluggable, V-0, Wemid
Order No.
1167630000
Typ
FUCR SW
GTIN (EAN)
4032248113903
Qty.
10 items

Dimensions and weights

Depth
40,5 mm
Depth (inches)
1,594 inch
Výška
38 mm
Height (inches)
1,496 inch
Width
8 mm
Width (inches)
0,315 inch
Net weight
6,3 g

Temperatures

Okolní teplota
-5 °C…40 °C
Continuous operating temp., min.
-50 °C
Continuous operating temp., max.
120 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Základní materiál
Wemid
Colour
black
UL 94 flammability rating
V-0

System specifications

Version
Fuse cartridge

Additional technical data

Návod k instalaci
Direct mounting
Typ montáže
Plugged

General

Telepítési útmutató
Direct mounting

Classifications

ETIM 8.0
EC002848
ETIM 9.0
EC002848
ETIM 10.0
EC002848
ECLASS 14.0
27-25-03-90
ECLASS 15.0
27-25-03-90
