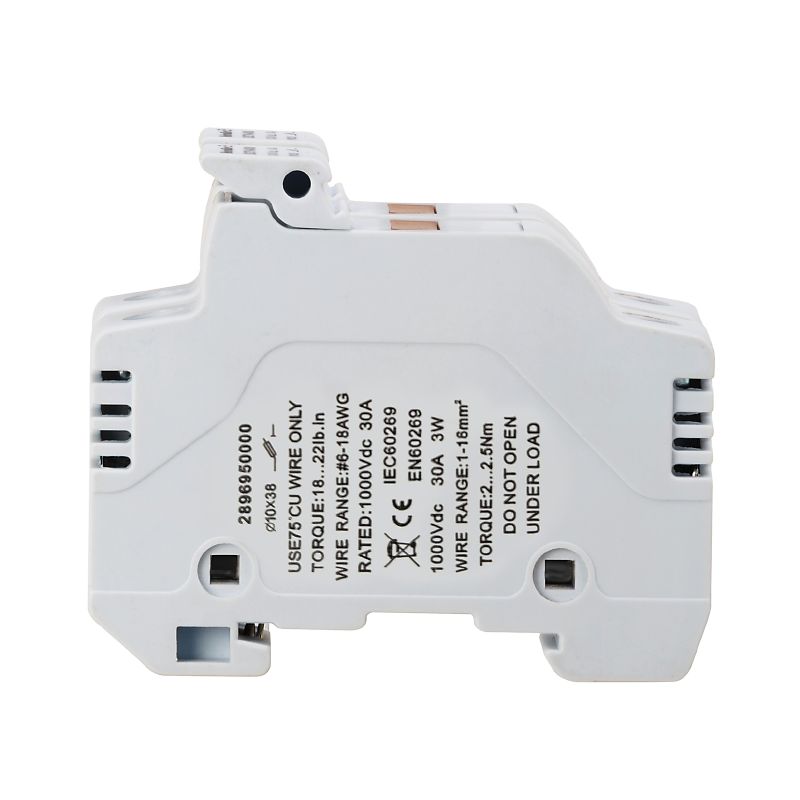

FUSEHOLDER WSFH/2 10X38 1KV LED
FUSEHOLDER WSFH/2 10X38 1KV LED
FUSEHOLDER WSFH/2 10X38 1KV LED

FUSEHOLDER WSFH/2 10X38 1KV LED

Photovoltaics, Fuse holder, 1000 V, 10x38, 2 Strings, with LED

Tuotteen tunnus 2896950000
Lataa tietosivu Engineering Support Product Downloads
Lisävarusteet 14 Samankaltaiset tuotteet 5
General ordering data Dimensions and weights Temperatures Environmental Product Compliance Fuse holder connection Fuse holder technical data Classifications Approvals

General ordering data

Version
Photovoltaics, Fuse holder, 1000 V, 10x38, 2 Strings, with LED
Order No.
2896950000
Type
FUSEHOLDER WSFH/2 10X38 1KV LED
GTIN (EAN)
4064675899679
Qty.
5  items

Dimensions and weights

Depth
61  mm
Depth (inches)
2,402  inch
Height
73  mm
Height (inches)
2,874  inch
Width
18  mm
Width (inches)
0,709  inch
Net weight
15,4  g

Temperatures

Continuous operating temp., min.
−50  °C
Continuous operating temp., max.
90  °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Fuse holder connection

Number of connections
2
Stripping length
10  mm
Tightening torque, max.
2,5  Nm
Tightening torque, min.
2  Nm
Type of connection
Screw connection
Wire material
Copper
Wire connection cross section AWG, min.
AWG 6
Wire connection cross section AWG, max.
AWG 17
Wire connection cross section, finely stranded, min.
1  mm²
Wire connection cross section, finely stranded, max.
10  mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
1  mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
10  mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
1  mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
10  mm²
Wire connection cross-section, solid core, min.
1  mm²
Wire connection cross-section, solid core, max.
10  mm²

Fuse holder technical data

Cartridge fuse
10 x 38 mm
Colour
Light Blue
Display
Red LED
Fuse holder (cartridge holder)
Pivoting
Max. current
30 A
Number of potentials
1
Operating voltage, max.
1000 V
Power dissapation, max.
3  W
Rail
TS 35
Rated impulse withstand voltage
6 kV
Surge voltage category
III
Type of mounting
Rail

Classifications

ETIM 6.0
EC000899
ETIM 7.0
EC000899
ETIM 8.0
EC000899
ETIM 9.0
EC000899
ETIM 10.0
EC000899
ECLASS 9.0
27-14-11-16
ECLASS 9.1
27-14-11-16
ECLASS 10.0
27-14-11-16
ECLASS 11.0
27-14-11-16
ECLASS 12.0
27-14-11-16
ECLASS 13.0
27-25-01-13
ECLASS 14.0
27-25-01-13
ECLASS 15.0
27-25-01-13

Approvals

ROHS
Conform
