HDC 24B KLU 1M25G
HDC 24B KLU 1M25G

HDC 24B KLU 1M25G

HDC enclosures, Installation size: 8, Protection degree: IP65, in plugged condition, Coupling housing, End-locking clamp, lower side, Standard, Size of cable entries: M 25

Tuotteen tunnus 1968340000
Lataa tietosivu Tekninen tuki Tuotelataukset
Lisävarusteet 19 On lisävaruste 18 Samankaltaiset tuotteet 1
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Dimensions General data Version Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/cbf09862-97e9-475d-b71a-c6db1e3e9933/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E92202

General ordering data

Version
HDC enclosures, Installation size: 8, Protection degree: IP65, in plugged condition, Coupling housing, End-locking clamp, lower side, Standard, Size of cable entries: M 25
Order No.
1968340000
Type
HDC 24B KLU 1M25G
GTIN (EAN)
4032248689378
Qty.
1 items

Dimensions and weights

Height
63,8 mm
Height (inches)
2,512 inch
Width
73,8 mm
Width (inches)
2,906 inch
Net weight
342 g

Temperatures

Limit temperature
-40 °C ... 125 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
Potassium perfluorobutane sulfonate 29420-49-3
SCIP
e98b2b24-ba23-41bf-8d19-0dda3647412f
Chemical resistance
  • Substance:
    Acetone
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Drilling oil
  • Chemical resistance:
    Resistant
  • Substance:
    Diesel
  • Chemical resistance:
    Resistant
  • Substance:
    Ethyl alcohol
  • Chemical resistance:
    Resistant
  • Substance:
    Transmission oil
  • Chemical resistance:
    Resistant
  • Substance:
    Hydraulic oil
  • Chemical resistance:
    Resistant
  • Substance:
    Coolant
  • Chemical resistance:
    Resistant
  • Substance:
    Petroleum benzine
  • Chemical resistance:
    Resistant
  • Substance:
    Sweat
  • Chemical resistance:
    Resistant
  • Substance:
    Premium gasoline
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Water
  • Chemical resistance:
    Resistant
  • Substance:
    UV
  • Chemical resistance:
    Unstable
  • Substance:
    Ozone
  • Chemical resistance:
    Unstable

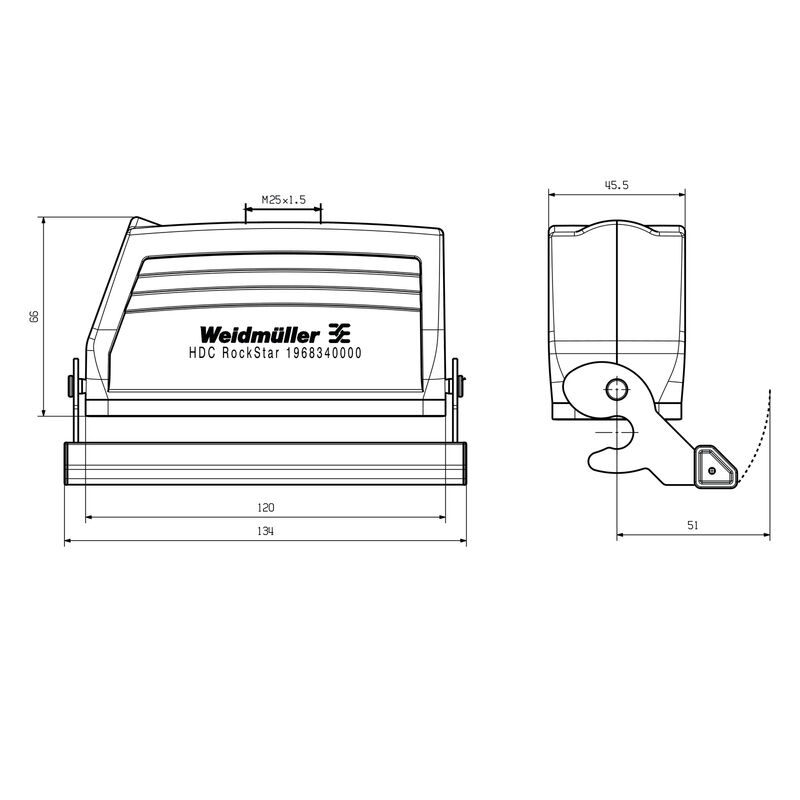

Dimensions

Bredd kapsling
43 mm
Cable entry
w. thread
Height of housing B
66 mm
Total length housing
120 mm

General data

Protection degree
IP65
in plugged condition
Surface finish
Powder coating

Version

BG
8
Cover
without cover
Design of housing
Coupling housing
Diseño
Standard
gwint (wewnętrzny)
M 25
Kábelbevezetés
w. thread
Lämplig för ModuPlug®
No
Number of cable entry sideways
0
Počet kabelových vstupů nahoře
1
Sealing
NBR
Size of cable entries
M 25
Telepítési szerkezeti méret
8
Tipo
coupling extension
Top part/bottom part/lid
lower part
Versione con gancio
End-locking clamp
Versión, sistema de cierre
End-locking clamp, lower side
Цвет (RAL)
RAL 7035

Classifications

ETIM 8.0
EC000437
ETIM 9.0
EC000437
ETIM 10.0
EC000437
ECLASS 14.0
27-44-02-02
ECLASS 15.0
27-44-02-02
