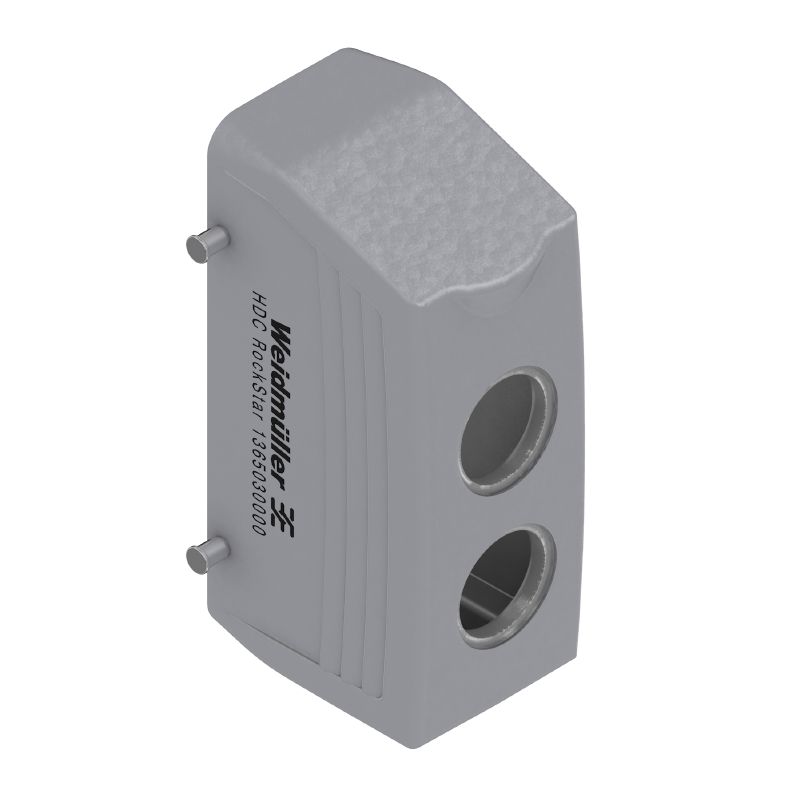

HDC enclosures, Installation size: 8, Protection degree: IP65, in plugged condition, Cable entry from top, Plug housing, Side-locking clamp on lower side, Standard, Size of cable entries: M 25

Ürün No. 1365030000
Veri sayfasını indir Engineering Support Product Downloads
Aksesuarlar 2 Karşı parçalar 17 İlgili ürünler 11
Approvals General ordering data Dimensions and weights Environmental Product Compliance Dimensions General data Version Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319234/-S800/-T1z1mm-S80)
ROHS
Conform

General ordering data

Version
HDC enclosures, Installation size: 8, Protection degree: IP65, in plugged condition, Cable entry from top, Plug housing, Side-locking clamp on lower side, Standard, Size of cable entries: M 25
Order No.
1365030000
Type
HDC 24B TOBU 2M25G CS
GTIN (EAN)
4050118666335
Qty.
1 adet

Dimensions and weights

Depth
45,5 mm
Depth (inches)
1,791 inch
Height
63 mm
Height (inches)
2,48 inch
Width
120 mm
Width (inches)
4,724 inch
Net weight
270 g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Chemical resistance
  • Substance:
    Acetone
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Drilling oil
  • Chemical resistance:
    Resistant
  • Substance:
    Diesel
  • Chemical resistance:
    Resistant
  • Substance:
    Ethyl alcohol
  • Chemical resistance:
    Resistant
  • Substance:
    Transmission oil
  • Chemical resistance:
    Resistant
  • Substance:
    Hydraulic oil
  • Chemical resistance:
    Resistant
  • Substance:
    Coolant
  • Chemical resistance:
    Resistant
  • Substance:
    Petroleum benzine
  • Chemical resistance:
    Resistant
  • Substance:
    Sweat
  • Chemical resistance:
    Resistant
  • Substance:
    Premium gasoline
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Water
  • Chemical resistance:
    Resistant
  • Substance:
    UV
  • Chemical resistance:
    Unstable
  • Substance:
    Ozone
  • Chemical resistance:
    Unstable

Dimensions

Cable entry
w. thread
długość obudowy
120 mm
Высота корпуса B
63 mm
폭 하우징 C
43 mm

General data

EMC housings
No
Kapslingsmaterial
diecast aluminium
Material of locking element
Stainless steel, rust-proof
Skyddsklass
IP65
in plugged condition
Yta
Powder coating

Version

Adatti per ModuPlug®
No
BG
8
Cable entry
w. thread
Clamp version
Side-locking clamp
Colour (RAL)
RAL 7035
Cover
without cover
Design
Standard
Design of housing
Cable entry from top
Plug housing
Design of locking system
Side-locking clamp on lower side
Installation size
8
Number of cable entry on top
2
Number of cable entry sideways
0
Number of cable glands
0
Sealing
no sealing
Size of cable entries
M 25
Top part/bottom part/lid
upper part
Tuercas (internas)
M 25
Type
Plug

Classifications

ETIM 8.0
EC000437
ETIM 9.0
EC000437
ETIM 10.0
EC000437
ECLASS 14.0
27-44-02-02
ECLASS 15.0
27-44-02-02
