IE-C5DB4BB0050MCSMCS-X
IE-C5DB4BB0050MCSMCS-X
Dimensioned drawing
Male, straight
IE-C5DB4BB0050MCSMCS-X
Dimensioned drawing
IE-C5DB4BB0050MCSMCS-X
Wiring
IE-C5DB4BB0050MCSMCS-X
Detailed drawing

IE-C5DB4BB0050MCSMCS-X

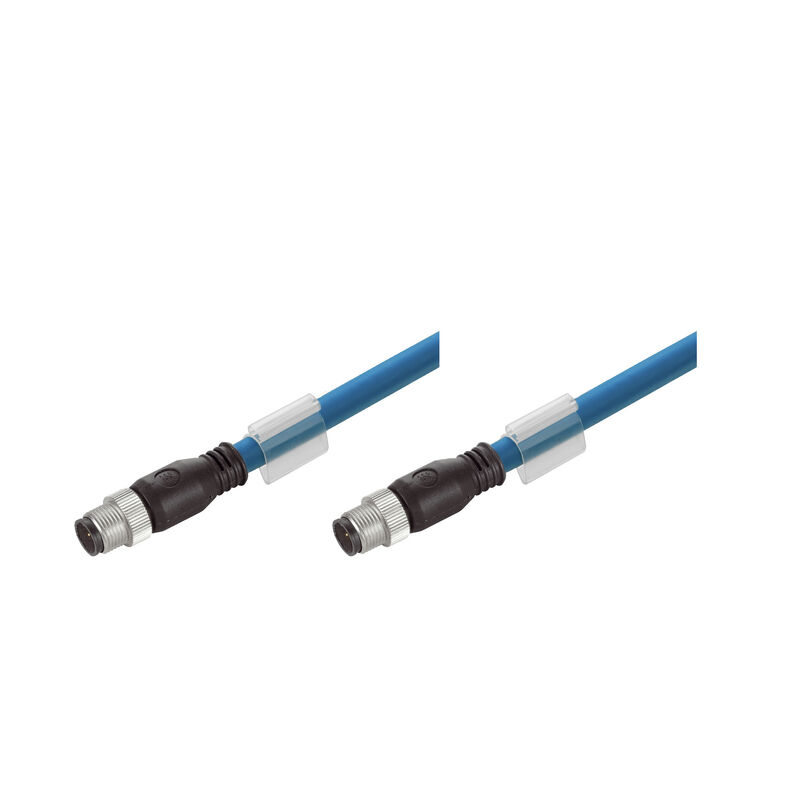

System cable, M12 D-code – IP 67 straight pin, M12 D-code – IP 67 straight pin, Cat. 5e, Polyolefine, 5 m

Tuotteen tunnus 2672320050
Lataa tietosivu Tekninen tuki
Lisävarusteet 4 Samankaltaiset tuotteet 6
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Cable specific standards Electrical properties General standards Cable structure Electrical properties of cable Mechanical and material properties of cable Plug, left Plug, right Classifications

Approvals

ROHS
Conform

General ordering data

Version
System cable, M12 D-code – IP 67 straight pin, M12 D-code – IP 67 straight pin, Cat. 5e, Polyolefine, 5 m
Order No.
2672320050
Type
IE-C5DB4BB0050MCSMCS-X
GTIN (EAN)
4064675043904
Qty.
1 items

Dimensions and weights

Length
5 m
Length (inches)
196,85 inch
Net weight
300 g

Temperatures

Operating temperature
-40 °C...85 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
67cf1078-beca-4687-860b-dc475a6ec24a

Cable specific standards

Fire safety for railway vehicles
According to EN 45545, HL1 - HL3
NFPA 130
Flames propagate vertically on bundled cables
EN 60332-3-25
According to UL1685, 12 (FT4 exp.)
Hydrogen halide content
According to EN-50267-2-1
Korozivní účinky výparů
EN 50267-2-2
Poisonous gases
EN 50305
Rauchdichte
According to IEC 61034-2

Electrical properties

Nominal voltage
125 V

General standards

Connector standard
IEC 61076-2-101

Cable structure

Colour coding
yellow
white
orange
blue
Cross-section
4*AWG 22/7 - 0.32 mm²
Insulation
PE
Material sheath
Polyolefine
Number of wires
4
Sheath diameter, max.
6,8 mm
Sheath diameter, min.
6,4 mm
Sheathing colour
blue
Sheathing material thickness
1 mm
Shielding
SF/UTP
Wire connection cross section AWG, max.
AWG 22
Wire core insulation thickness
1,4 mm
Wire material
tinned copper
Wire pair shielding
Plastic foil

Electrical properties of cable

Category
Cat. 5e
Coupling attenuation up to 1000 MHz
90 dB
Coupling resistance at 10 MHz / m
8 mΩ
Shield attenuation up to 1000 MHz
60 dB
Test voltage: wire-wire-shield
1000 Veff, 50 Hz, 1 min

Mechanical and material properties of cable

Corrosivité par les gaz d'incendie
EN 50267-2-2
Halogen
No
Min. bending radius, repetitive
6 *diameter
Radio de flexión, mín., Único
5 x cable diameter
Resistance to oils
in accordance with IEC 60811:404
Résistance à la flamme
in accordance with IEC 60332-1-2
연기 침투성
According to IEC 61034-2

Plug, left

Csatlakozó, bal
M12, D-coded, Number of poles: 4, IP67, male contact, straight, plug, Plastic, shielded

Plug, right

Plug right
M12, D-coded, Number of poles: 4, IP67, male contact, straight, plug, Plastic, shielded

Classifications

ETIM 8.0
EC002599
ETIM 9.0
EC002599
ETIM 10.0
EC002599
ECLASS 14.0
27-06-03-08
ECLASS 15.0
27-06-03-08
