IE-MCT-1RS232/485-1ST

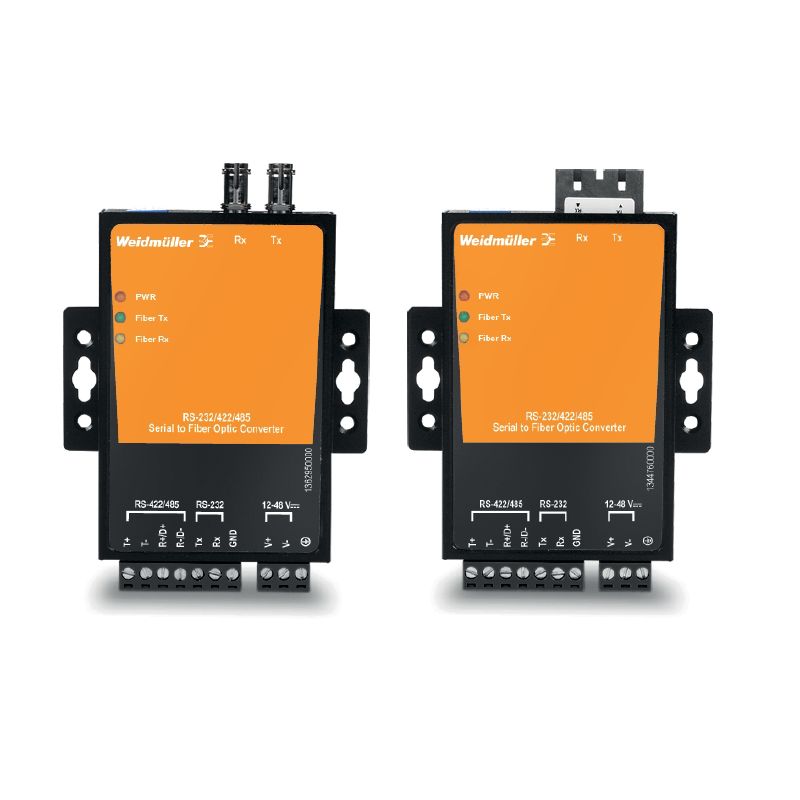

Product image
IE-MCT-1RS232/485-1ST

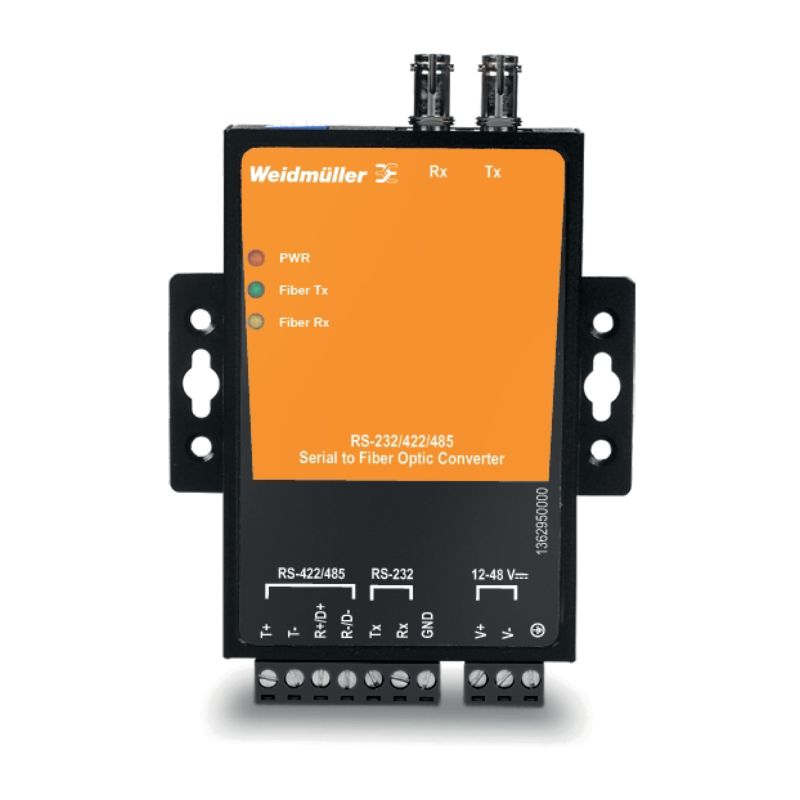

Product image

IE-MCT-1RS232/485-1ST

Dit product is niet meer beschikbaar.

Serial/fibre-optic converter, 1 x terminal block for RS232/422/485, 1 x ST multimode, IP30, -40 °C...75

Product ID 1362950000
Gegevensblad downloaden Engineering Support Product Downloads
Toebehoren 1
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Input General specifications Mobile radio interface fibre-optic interface Serial interface Enclosure material Technical data EMC conformity and approvals Environmental conditions Guarantee Interfaces MTBF Power supply Serial communication parameters Serial signals Technical data WLAN interface Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319228/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E230683

General ordering data

Version
Serial/fibre-optic converter, 1 x terminal block for RS232/422/485, 1 x ST multimode, IP30, -40 °C...75
Order No.
1362950000
Type
IE-MCT-1RS232/485-1ST
GTIN (EAN)
4050118165203
Qty.
1 items
Delivery status
Discontinued
Available until
01.06.2022

Dimensions and weights

Depth
22
Depth (inches)
0,866 inch
Height
100 mm
Height (inches)
3,937 inch
Width
90,2 mm
Width (inches)
3,551 inch
Net weight
130 g

Temperatures

Storage temperature
-40 °C...75 °C
Operating temperature
-40 °C...75
Humidity
5 to 95 % (non-condensing)

Environmental Product Compliance

RoHS Compliance Status
Compliant
REACH SVHC
Lead 7439-92-1
SCIP
9229992a-00b9-4096-8962-200a7f33e289

Input

Type of connection
ST connection
Multimode

General specifications

Protection degree
IP30
Type of connection
ST connection
Multimode

Mobile radio interface

Transmit power
> - 5 dBM

fibre-optic interface

Citlivost příjmu
-20 dBm
Transmission mode: "Point-to-point"
Half-duplex
Full-duplex
Transmit power
> - 5 dBM
Type of connection
ST connection
Multimode
Typical distances
5 km (50/125, 62.5/125, 100/140 µm multimode cable)
Wave length
850 nm
Übertragungsmodus "Ring"
Half-duplex

Serial interface

Interfaces standard
RS-232/422/485
RS485 데이터 방향 제어
ADDC® (automatic data direction control)
Soros kábel védelem
15 KV ESD protection for all signals
Tipo di collegamento
1 removable 7-pole terminal block
Velocidad en baudios
50 bit/s to 921.6 kbit/s

Enclosure material

Housing main material
Aluminum

Technical data

Type of connection
ST connection
Multimode

EMC conformity and approvals

EMC standards
FCC Part 15 Class B
EN 61000-4-2 (ESD), Stage 3
EN 61000-4-3 (RS)
Stage 2
EN 61000-4-4 (EFT), Stage 2
EN 61000-4-5 (Surge), Stage 3
EN 61000-4-6 (CS)
EN 61000-4-8
Stage 1
cULus
Safety standard
UL 60950-1

Environmental conditions

Humidity
5 to 95 % (non-condensing)
Operating temperature, max.
75
Operating temperature, min.
-40 °C
Storage temperature, max.
75 °C
Storage temperature, min.
-40 °C

Guarantee

Time interval
5 years

Interfaces

Function DIP switch
Activation / deactivation of terminating resistor
Activation of ring mode
Activation of point-to-point mode
Interface standards
RS-232/422/485
RS485 data direction control
ADDC® (automatic data direction control)
Serial cable protection
15 KV ESD protection for all signals

MTBF

MTBF
  • According to Standard:
    Telcordia (Bellcore), GB
  • Operating time (hours), min.:
    780.480 h

Power supply

Connection type
1 removable 3-pole terminal block
Current consumption
  • Voltage:
    12 V
  • Current:
    140 mA
  • Voltage:
    24 V
  • Current:
    67,7 mA
  • Voltage:
    48 V
  • Current:
    28,7 mA
Overload current protection
1.1 A
Reverse polarity protection
Available
Supply line protection
2 KV Burst (EFT)
EN61000-4-4
2 KV Surge
EN61000-4-5
Supply voltage
24 V DC
1 single input
Voltage supply range
  • Voltage type:
    DC
  • Voltage, min.:
    12 V
  • Voltage, max.:
    48 V

Serial communication parameters

Baud rate
50 bit/s to 921.6 kbit/s

Serial signals

RS232
Tx
Rx
GND
RS422
TxD+
TxD-
RxD+
RxD-
GND
RS485 2-wire
Data+
Data-
GND
RS485 4-wire
TxD+
TxD-
RxD+
RxD-
GND

Technical data

Monteringstyp
Mounting plate
Wall mounting
when screwed in
TS 35
(with optional mounting kit IE-DINRAILMOUNT-KIT 1504430000)
Protection degree
IP30
Основной материал корпуса
Aluminum

WLAN interface

Moc nadawcza
> - 5 dBM

Classifications

ETIM 8.0
EC000310
ETIM 9.0
EC000310
ETIM 10.0
EC000310
ECLASS 14.0
19-17-04-11
ECLASS 15.0
19-17-04-11
