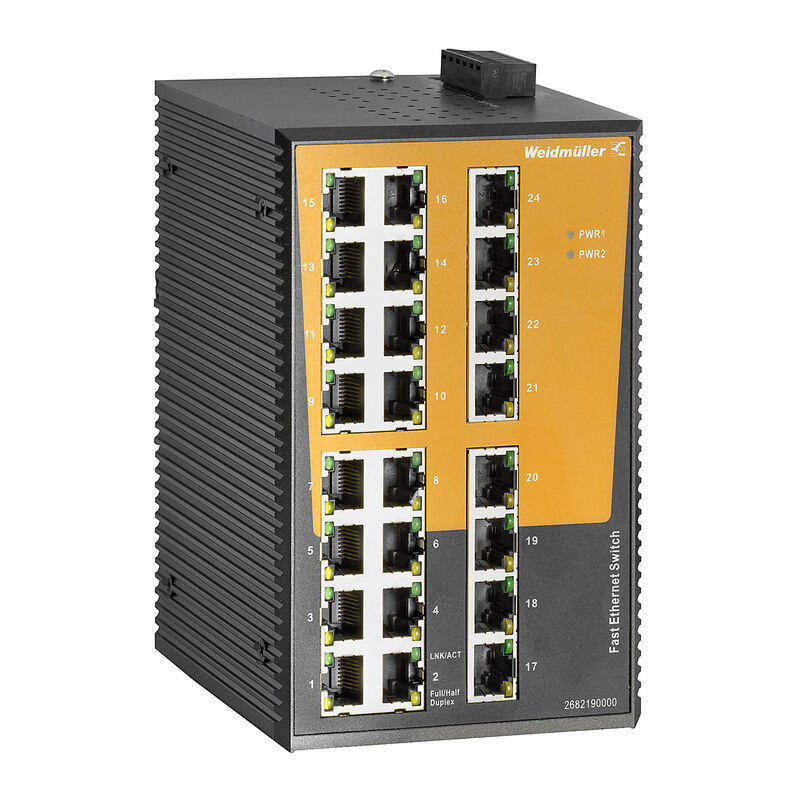

Network switch, unmanaged, Fast Ethernet, Number of ports: 24x RJ45, IP30, -40 °C...75 °C

Product ID 2682190000
Openen in configurator
Gegevensblad downloaden Engineeringondersteuning Productdownloads
Toebehoren 1 Verwante producten 12
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance EMC conformity and approvals Environmental conditions Guarantee Interfaces MTBF Power supply Switch characteristics Technical data Technology Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/77c071f4-46bd-4b7f-8f24-3c61d44584d2/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E141197

General ordering data

Version
Network switch, unmanaged, Fast Ethernet, Number of ports: 24x RJ45, IP30, -40 °C...75 °C
Order No.
2682190000
Type
IE-SW-EL24-24TX
GTIN (EAN)
4050118692525
Qty.
1 items
Delivery status
This article will no longer be available in the future.
Last order date
/Date(1801263600000)/
Alternative product
[2908060000](~/p/2908060000)

Dimensions and weights

Depth
108,5 mm
Depth (inches)
4,272 inch
Height
154 mm
Height (inches)
6,063 inch
Width
96,4 mm
Width (inches)
3,795 inch
Net weight
1.369 g

Temperatures

Storage temperature
-40 °C...85 °C
Operating temperature
-40 °C...75 °C
Humidity
5 to 95 % (non-condensing)

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c, 7a, 7cI
REACH SVHC
Lead 7439-92-1
Lead monoxide 1317-36-8
SCIP
9229992a-00b9-4096-8962-200a7f33e289

EMC conformity and approvals

EMC standards
EN 55032
EN 55024
CISPR 32
FCC Part 15 Subpart B Class A
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz bis 1 Ghz: 3 V/m
IEC 61000-4-4 EFT: Power: 0.5 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 0,5 kV; Signal: 1 kV
IEC 61000-4-6 CS: 3 Vrms
Free fall
According to IEC 60068-2-31
Safety standard
UL 61010-1
UL 61010-2-201
Shock
according to IEC 60068-2-27
Vibration
according to IEC 60068-2-6

Environmental conditions

Humidity
5 to 95 % (non-condensing)
Operating altitude
  • Altitude, max.:
    2.000 m
  • Note:
    in acc. with UL
  • Altitude, max.:
    6.000 m
  • Note:
    for restrictions, see the manufacturer's declaration for operating altitude in section downloads
Operating temperature, max.
75 °C
Operating temperature, min.
-40 °C
Storage temperature, max.
85 °C
Storage temperature, min.
-40 °C

Guarantee

Time interval
5 years

Interfaces

Indicador LED
Power LED: PWR1, PWR2
Port LED: Link/ACT, FDX (RJ45 port)
Number of ports
24x RJ45
RJ45 ports
10/100BaseT(X)
auto negotiation
Full-/half-duplex mode
Auto MDI/MDI-X port
Signalling contact
1 relay output with a current capacity of 1 A at 24 V DC

MTBF

MTBF
  • According to Standard:
    Telcordia SR-332
  • Operating time (hours), min.:
    959.803 h

Power supply

Connection type
1 removable 6-pin terminal block
Current consumption
  • Voltage:
    24 V
  • Current:
    0,39 A
Overload current protection
Yes
Reverse polarity protection
Yes
Supply voltage
12/24/48 V DC
2 redundant inputs
Voltage supply range
  • Voltage type:
    DC
  • Voltage, min.:
    10,8 V
  • Voltage, max.:
    52,8 V

Switch characteristics

MAC table size
8 K
Packet buffer size
1 Mbit
Základní deska šířky pásma
4,8 Gbit/s

Technical data

IP30
Speed
Fast Ethernet
Switch
unmanaged
Вид монтажа
DIN rail
하우징 기본 재질
Metal

Technology

Standard
IEEE 802.3 for 10BASE-T
IEEE 802.3u for 100BASE-TX
IEEE 802.3x for flow control
Trasmissione dati
Store and Forward
フローコントロール
IEEE 802.3x flow control

Classifications

ETIM 8.0
EC000734
ETIM 9.0
EC000734
ETIM 10.0
EC000734
ECLASS 14.0
19-17-04-02
ECLASS 15.0
19-17-04-02
