KEB MOPL 3030 MSZN
Similar to illustration
Abbildung ähnlich
KEB MOPL 3030 MSZN

KEB MOPL 3030 MSZN

Klippon EB (Essential Box), Placa de montaje, Altura: 240 mm, Anchura: 240 mm, Profundidad: 1.5 mm, Material básico: Chapa de acero, cincado, plata

Ürün No. 8000074171
Veri sayfasını indir Engineering Support Product Downloads
aksesuarıdır 11 İlgili ürünler 21
Approvals Datos generales para pedido Dimensions and weights Umweltanforderungen General information Classifications

Approvals

ROHS
Conform

Datos generales para pedido

Version
Klippon EB (Essential Box), Placa de montaje, Altura: 240 mm, Anchura: 240 mm, Profundidad: 1.5 mm, Material básico: Chapa de acero, cincado, plata
Order No.
8000074171
Type
KEB MOPL 3030 MSZN
GTIN (EAN)
4064675425168
Qty.
1 adet

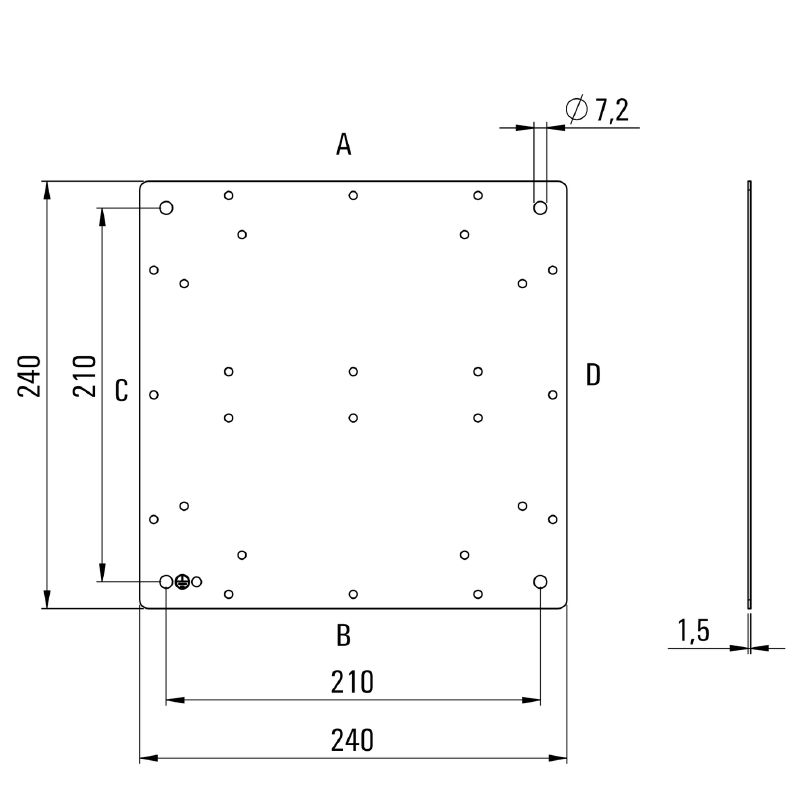

Dimensions and weights

Depth
1,5 mm
Profundidad (pulgadas)
0,059 inch
Height
240 mm
높이 (인치)
9,449 inch
Width
240 mm
Width (inches)
9,449 inch
Net weight
670 g

Umweltanforderungen

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General information

Basic material
Sheet steel
Material thickness
1,5 mm
Surface finish
galvanized

Classifications

ETIM 8.0
EC000213
ETIM 9.0
EC000213
ETIM 10.0
EC000213
ECLASS 14.0
27-40-06-39
ECLASS 15.0
27-40-06-39
