LMF 5.00/13/180 3.5SN OR BX

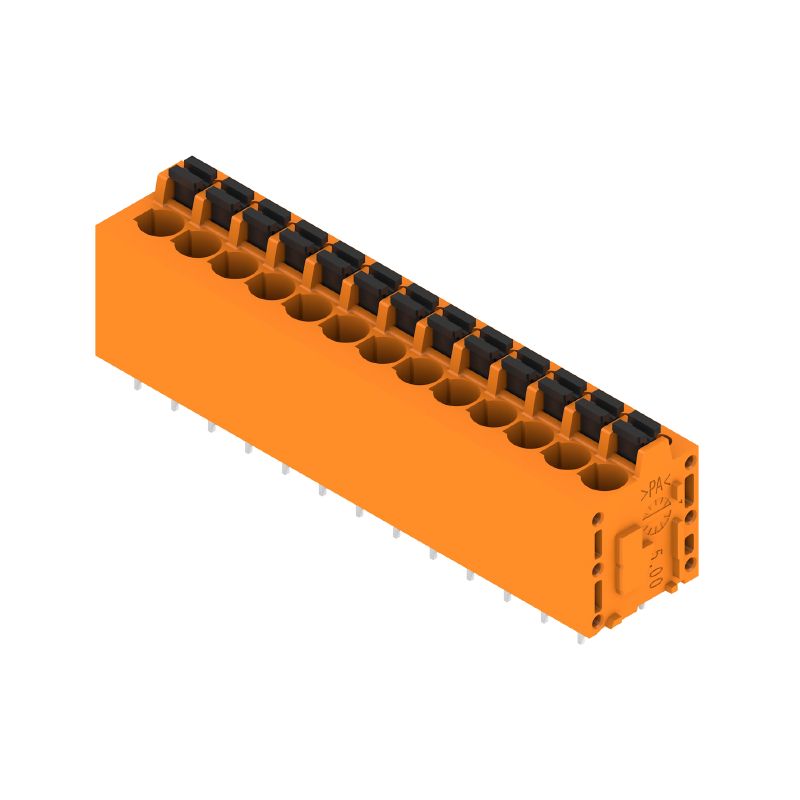

Product image
LMF 5.00/13/180 3.5SN OR BX
Product image
LMF 5.00/13/180 3.5SN OR BX
Dimensional drawing
LMF 5.00/13/180 3.5SN OR BX
Graph
LMF 5.00/13/180 3.5SN OR BX
Graph
LMF 5.00/13/180 3.5SN OR BX
Product benefits
Optional conductor outlet direction
Stable mechanical design
LMF 5.00/13/180 3.5SN OR BX
Product benefits
High reliability of the current capacity
LMF 5.00/13/180 3.5SN OR BX
Product benefits
Direct conductor entry
Cross section up to 2.5 mm²
LMF 5.00/13/180 3.5SN OR BX
Product benefits
Maintenance through test point

LMF 5.00/13/180 3.5SN OR BX

Printed circuit board terminals, 5.00 mm, Number of poles: 13, 180°, Solder pin length (l): 3.5 mm, tinned, orange, PUSH IN with actuator, Clamping range, max. : 2.5 mm², Box

Ürün No. 1330300000
Veri sayfasını indir Mühendislik desteği Ürün İndirmleri
Aksesuarlar 1 İlgili ürünler 23
Approvals General ordering data Dimensions and weights Environmental Product Compliance System parameters Material data Conductors suitable for connection Dane znamionowe wg IEC Rated data acc. to CSA Rated data acc. to UL 1059 Packing Type tests Important note Classifications

Approvals

Homologaciones
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Núm. de certificación (cURus)
E60693

General ordering data

Version
Printed circuit board terminals, 5.00 mm, Number of poles: 13, 180°, Solder pin length (l): 3.5 mm, tinned, orange, PUSH IN with actuator, Clamping range, max. : 2.5 mm², Box
Order No.
1330300000
Type
LMF 5.00/13/180 3.5SN OR BX
GTIN (EAN)
4050118134186
Cantidad
20 adet
Product data
IEC: 400 V / 24 A / 0.5 - 2.5 mm²
UL: 300 V / 20 A / AWG 24 - AWG 12
Packaging
Box

Dimensions and weights

Depth
14,8 mm
Profundidad (pulgadas)
0,583 inch
Height
22,7 mm
Height (inches)
0,894 inch
Height of lowest version
19,2 mm
Width
67,7 mm
Width (inches)
2,665 inch
Peso neto
19,36 g

Environmental Product Compliance

Estado de cumplimiento de la directiva RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System parameters

Product family
OMNIMATE Signal - series LMF
Wire connection method
PUSH IN with actuator
Mounting onto the PCB
THT solder connection
Conductor outlet direction
180°
Pitch in mm (P)
5 mm
Pitch in inches (P)
0,197 "
Number of poles
13
Número de filas de polos
1
Fitted by customer
No
Number of rows
1
maximal anreihbare Pole je Reihe
24
Solder pin length (l)
3,5 mm
Solder pin dimensions
d = 0.8 mm
Solder eyelet hole diameter (D)
1,1 mm
Tolerancia de diámetro de la perforación (D)
+ 0,1 mm
Número de terminales de soldadura por polo
2
Punta de destornillador
0.6 x 3.5
Screwdriver blade standard
DIN 5264
Stripping length
10 mm
L1 in mm
60 mm
L1 in inches
2,362 "
Touch-safe protection acc. to DIN VDE 0470
IP 20
Protección contra contacto según DIN VDE 57106
protección de dedos
IP20

Material data

Materiales aislantes
Wemid (PA)
Color
orange
Color componentes de accionamiento
grey
Carta de colores (similar)
RAL 2000
Índice de resistencia al encaminamiento eléctrico (CTI)
≥ 600
Grado inflamabilidad según UL 94
V-0
Material de contacto
Cu-alloy
Superficie de contacto
tinned
Revestimiento
4-6 μm SN
Tipo de estañado
matt
Estructura de capas de la conexión por soldadura
4...6 µm Sn matt
Temperatura de almacenamiento, min.
-40 °C
Temperatura de almacenamiento, max.
70 °C
Temperatura de servicio, min.
-50 °C
Operating temperature, max.
120 °C
Temperature range, installation, min.
-25 °C
Temperature range, installation, max.
120 °C

Conductors suitable for connection

Sección de embornado, mín.
0,12 mm²
Sección de embornado, máx.
2,5 mm²
Sección de conexión del conductor AWG, min.
AWG 24
Sección de conexión del conductor AWG, máx.
AWG 12
Rígido, mín. H05(07) V-U
0,5 mm²
Rígido, máx. H05(07) V-U
2,5 mm²
Flexible, mín. H05(07) V-K
0,25 mm²
Flexible, máx. H05(07) V-K
2,5 mm²
con term. tub. con aislamiento DIN 46 228/4,mín.
0,25 mm²
con term. tub. con aislamiento DIN 46 228/4,máx
2,5 mm²
con terminal tubular, DIN 46228 pt 1, mín.
0,25 mm²
con terminal tubular según DIN 46 228/1, máx.
2,5 mm²
Calibre macho de conformidad con la norma EN 60999 a x b; ø
2.4 mm x 1.5 mm
Conductor embornable
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      9025870000
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      9004050000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,75 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      9025860000
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      0542500000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      1 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      9019100000
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      0282800000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      1,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      0186500000
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      0635100000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      2,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      9004080000
Texto de referencia
Length of ferrules is to be chosen depending on the product and the rated voltage.
The outside diameter of the plastic collar should not be larger than the pitch (P)

Dane znamionowe wg IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Corriente nominal, número de polos mín. (Tu=20 °C)
24 A
Corriente nominal, número de polos máx. (Tu=20 °C)
24 A
Corriente nominal, número de polos mín. (Tu=40 °C)
24 A
Corriente nominal, número de polos máx. (Tu=40 °C)
24 A
Tensión nominal con categoría de sobretensión/grado de polución II/2
400 V
Tensión nominal con categoría de sobretensión/grado de polución III/2
320 V
Tensión nominal con categoría de sobretensión/grado de polución III/3
250 V
Tensión nominal con categoría de sobretensión/grado de polución II/2
4 kV
Tensión nominal con categoría de sobretensión/grado de polución III/2
4 kV
Sobretensión de choque nominal con categoría de sobretensión/grado de polución III/3
4 kV
Resistencia a corrientes de corta duración
3 x 1s with 120 A

Rated data acc. to CSA

Institute (CSA)
CSA
Certificate No. (CSA)
20039-1815154
Rated voltage (Use group B / CSA)
300 V
Rated voltage (Use group D / CSA)
300 V
Rated current (Use group B / CSA)
20 A
Rated current (Use group D / CSA)
10 A
Wire cross-section, AWG, min.
AWG 24
Průřez vodiče AWG, max.
AWG 12
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Rated data acc. to UL 1059

Institute (cURus)
CURUS
Certificate No. (cURus)
E60693
Rated voltage (Use group B / UL 1059)
300 V
Tensión nominal (Use Group D / UL 1059)
300 V
Rated current (Use group B / UL 1059)
20 A
Intensidad nominal (Use Group D / UL 1059)
10 A
Sección de conexión del conductor AWG, mín.
AWG 24
Wire cross-section, AWG, max.
AWG 12
Reference to approval values
Specifikationerna avser maxvärden. För detaljer – se typgodkännandeintyg.

Packing

Packaging
Box
VPE length
338 mm
VPE width
130 mm
VPE height
27 mm

Type tests

Test: Durability of markings
  • Standard:
    DIN EN 60512-1-1 / 01.03
  • Test:
    mark of origin, type identification, pitch, approval marking UL, durability
  • Evaluation:
    available
Test: Clampable cross section
  • Standard:
    DIN EN 60999-1 section 7 and 9.1 / 12.00, DIN EN 60947-1 section 8.2.4.5.1 / 12.02
  • Conductor type:
    • Type of conductor and conductor cross-section:
      solid 0.14 mm²
    • Type of conductor and conductor cross-section:
      stranded 0.14 mm²
    • Type of conductor and conductor cross-section:
      solid 1.5 mm²
    • Type of conductor and conductor cross-section:
      stranded 1.5 mm²
    • Type of conductor and conductor cross-section:
      AWG 24/1
    • Type of conductor and conductor cross-section:
      AWG 24/19
    • Type of conductor and conductor cross-section:
      AWG 16/1
    • Type of conductor and conductor cross-section:
      AWG 16/19
  • Evaluation:
    passed
Test for damage to and accidental loosening of conductors
  • Standard:
    DIN EN 60999-1 section 9.4 / 12.00
  • Requirement:
    0.2 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 24/1
    • Type of conductor and conductor cross-section:
      AWG 24/19
  • Evaluation:
    passed
  • Requirement:
    0.3 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      stranded 0.25 mm²
    • Type of conductor and conductor cross-section:
      solid 0.5 mm²
  • Evaluation:
    passed
  • Requirement:
    0.4 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      solid 1.5 mm²
    • Type of conductor and conductor cross-section:
      stranded 1.5 mm²
    • Type of conductor and conductor cross-section:
      AWG 16/1
    • Type of conductor and conductor cross-section:
      AWG 16/19
  • Evaluation:
    passed
Pull-out test
  • Standard:
    DIN EN 60999-1 section 9.5 / 12.00
  • Requirement:
    ≥10 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 24/1
    • Type of conductor and conductor cross-section:
      AWG 24/19
  • Evaluation:
    passed
  • Requirement:
    ≥20 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      stranded 0.25 mm²
    • Type of conductor and conductor cross-section:
      H05V-K0.5
  • Evaluation:
    passed
  • Requirement:
    ≥40 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H07V-U1.5
    • Type of conductor and conductor cross-section:
      H07V-K1.5
    • Type of conductor and conductor cross-section:
      AWG 16/1
    • Type of conductor and conductor cross-section:
      AWG 16/19
  • Evaluation:
    passed

Important note

Conformidad con IPC
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notas
  • Additional variants on request
  • Rated current related to rated cross-section & min. No. of poles.
  • Wire end ferrule without plastic collar to DIN 46228/1
  • Wire end ferrule with plastic collar to DIN 46228/4
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • The test point can only be used as potential-pickup point.
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months
