MOS 12-28VDC 100KHZ
MOS 12-28VDC 100KHZ

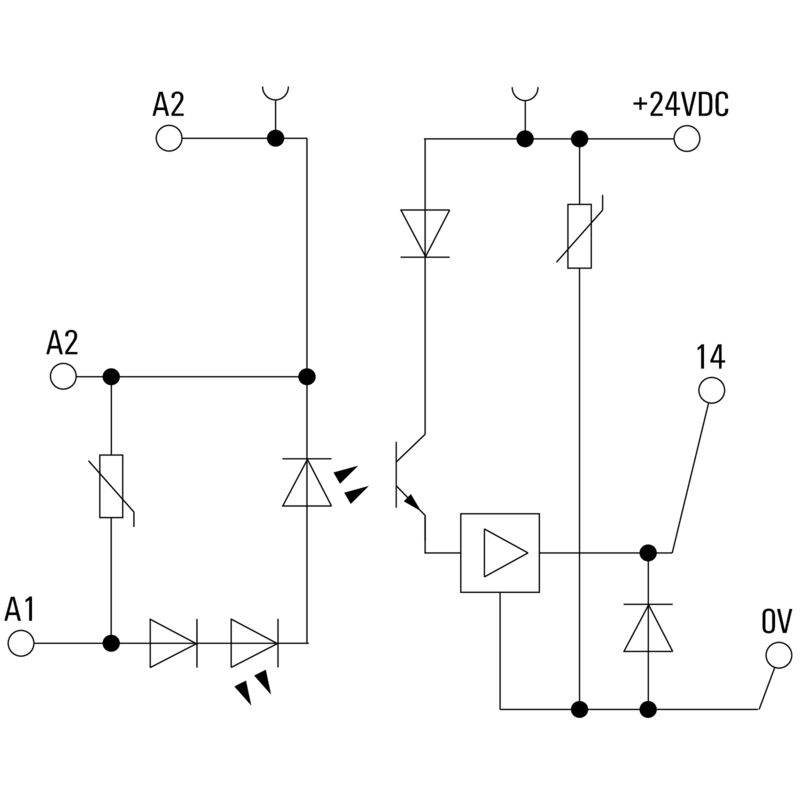

Wiring diagram
MOS 12-28VDC 100KHZ
MOS 12-28VDC 100KHZ
Dimensional drawing

MOS 12-28VDC 100KHZ

MICROOPTO, Relè a stato solido, Tensione nominale: 12 V DC...28 V DC , Tensione di commutazione nominale: 19.6…28.8 V DC, Corrente permanente: 50 mA, Collegamento a vite

Ürün No. 8937990000
Konfigüratörde aç
Veri sayfasını indir Engineering Support Product Downloads
Aksesuarlar 18 İlgili ürünler 5
Homologaciones Dati generali per l’ordinazione Dimensiones y pesos Hőmérsékletek Probability of failure Termékek környezetvédelmi megfelelősége Côté commande Belastningssida Dane ogólne Isolationskoordinater Further details of approvals / standards Dati di collegamento Important note Klassificeringar

Homologaciones

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/cbf09862-97e9-475d-b71a-c6db1e3e9933/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E141197

Dati generali per l’ordinazione

Version
MICROOPTO, Relè a stato solido, Tensione nominale: 12 V DC...28 V DC , Tensione di commutazione nominale: 19.6…28.8 V DC, Corrente permanente: 50 mA, Collegamento a vite
Order No.
8937990000
Type
MOS 12-28VDC 100KHZ
GTIN (EAN)
4032248716227
Qty.
1 adet

Dimensiones y pesos

Depth
97,8 mm
Głębokość (cale)
3,85 inch
Height
88,1 mm
Bygghöjd (tum)
3,468 inch
Width
6,1 mm
Width (inches)
0,24 inch
Net weight
31,81 g

Hőmérsékletek

Storage temperature
-40 °C...80 °C
Ambient temperature
-25 °C…60 °C
Humidity
5-95% relative humidity, Tu = 55°C, without condensation

Probability of failure

MTTF
2.559 a

Termékek környezetvédelmi megfelelősége

RoHS Compliance Status
Megfelel, kivétellel
RoHS Exemption (if applicable/known)
7a, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
d32f8e61-6733-45d6-9062-c95f9903aad6

Côté commande

Rated control voltage
12 V DC...28 V DC
Rated control voltage (control input)
12 V DC...28 V DC
Power rating
≤ 360 mW
Status indicator
Green LED
Protective circuit
Varistor
Reverse polarity protection
Input frequency
100 kHz

Belastningssida

Rated switching voltage
19.6…28.8 V DC
Continuous current
0.05 A
Rated switching current
50 mA
Load category
LC A
Max. switching voltage, DC
48 V
Pulse load, max. current
0.6 A (20 ms)
Switch-on delay
<200 ns
Switch-off delay
<400 ns
Voltage drop at max. load
≤ 2 V
Leakage current
<1 µA
Short-circuit-proof
No
Protective circuit, load side
Varistor
Reverse polarity protection
Contact type
1 NO contact (Transistor)

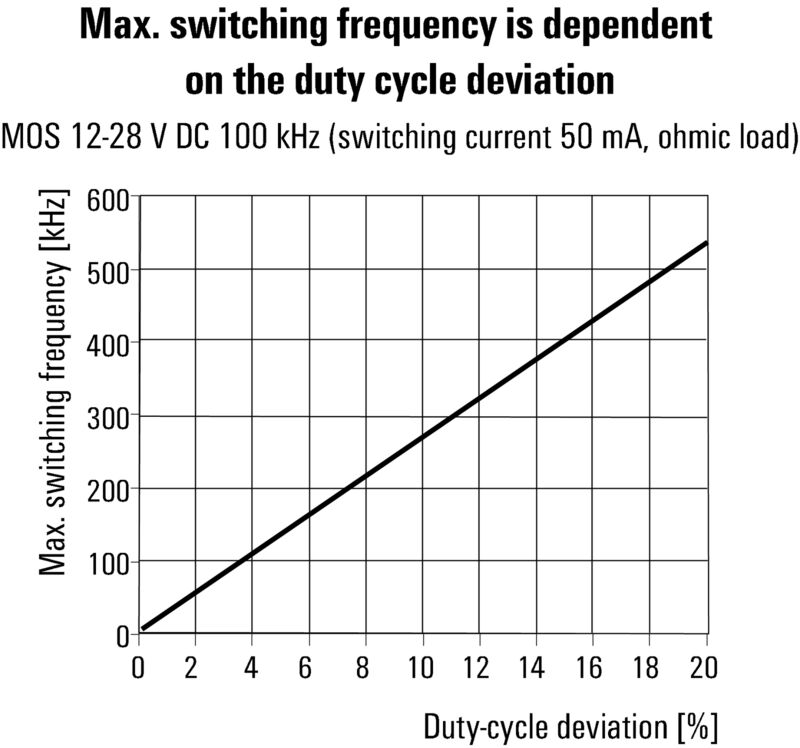

max. switching frequency (DC control voltage)
530 kHz
Nominal auxiliary voltage
19.6…28.8 V / max. 8 mA

Dane ogólne

Mounting rail
TS 35
Colour
black
UL 94 flammability rating
V-0
UL94 flammability rating component
  • Component:
    Housing
  • UL94 flammability rating:
    V-0

Isolationskoordinater

Rated voltage
30 V
Pollution severity
2
Surge voltage category
II
Dielectric strength for control side - load side
350 Veff / 1 min.
Dielectric strength to mounting rail
350 Veff / 1 min.
Impulse withstand voltage
500 V (1,2/50 μ)
Protection degree
IP20

Further details of approvals / standards

Certificate No. (DNV)
TAE000033E
Certificate no. (cULus)
E141197

Dati di collegamento

Wire connection method
Screw connection
Stripping length, rated connection
7 mm
Tightening torque, min.
0,4 Nm
Tightening torque, max.
0,6 Nm
Clamping range, rated connection
2,5 mm²
Clamping range, min.
0,5 mm²
Clamping range, max.
4 mm²
Wire cross-section, solid, min.
0,5 mm²
Wire cross-section, solid, max.
4 mm²
Wire connection cross section, finely stranded, min.
0,5 mm²
Wire connection cross section, finely stranded, max.
2,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
1,5 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), min.
0,5 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), max.
1,5 mm²
Blade size
0.6 x 3.5 mm

Important note

Product information
Les longueurs de câble ne doit pas dépasser 30 m.

Klassificeringar

ETIM 8.0
EC001504
ETIM 9.0
EC001504
ETIM 10.0
EC001504
ECLASS 14.0
27-37-16-04
ECLASS 15.0
27-37-16-04
