P 18/20 D02 BL SAKS5

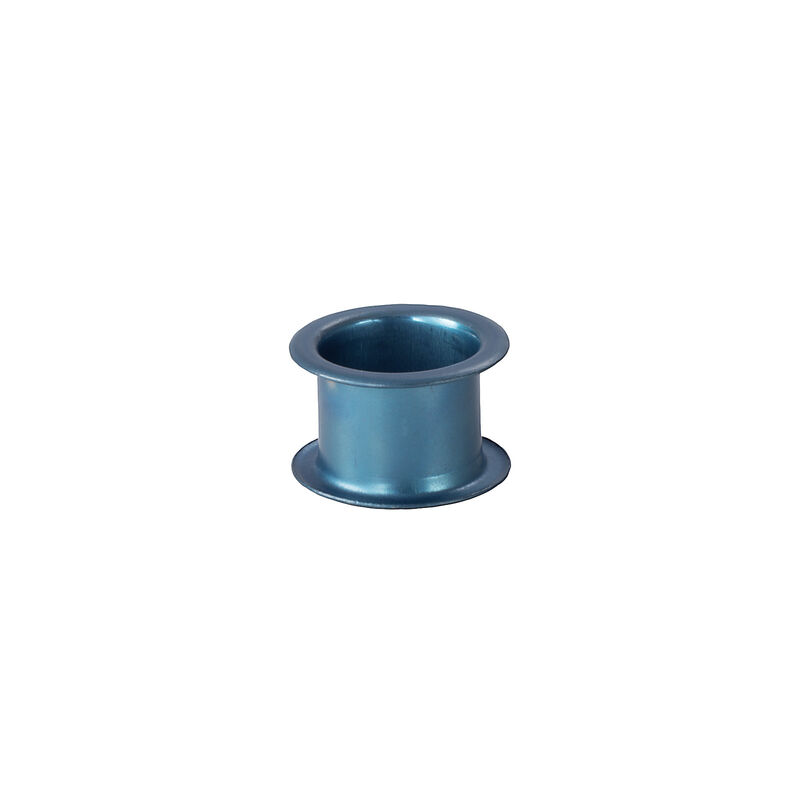

Product image
Similar to illustration

P 18/20 D02 BL SAKS5

Fuse gauge ring (terminal), Height: 11 mm, Depth: 10.5 mm, Aluminium, blue

Item No. 0361800000
Download data sheet Product Downloads Engineering Support
Is accessory of 1 Related products 85
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data System specifications Additional technical data Dimensions General Rating data Classifications

Approvals

ROHS
Conform

General ordering data

Version
Fuse gauge ring (terminal), Height: 11 mm, Depth: 10.5 mm, Aluminium, blue
Order No.
0361800000
Type
P 18/20 D02 BL SAKS5
GTIN (EAN)
4008190106249
Qty.
50 items

Dimensions and weights

Depth
10,5 mm
Depth (inches)
0,413 inch
Height
11 mm
Height (inches)
0,433 inch
Diameter
16,6 mm
Net weight
0,54 g

Temperatures

Température ambiante
-5 °C…40 °C

Environmental Product Compliance

RoHS 合规状态
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Basic material
Aluminium
Colour
blue

System specifications

Version
Fuse cartridge

Additional technical data

Installation advice
Direct mounting

Dimensions

Diamètre
16,6 mm

General

Istruzioni di montaggio
Direct mounting

Rating data

Nominal current
20 A

Classifications

ETIM 8.0
EC002848
ETIM 9.0
EC002848
ETIM 10.0
EC002848
ECLASS 14.0
27-25-03-90
ECLASS 15.0
27-25-03-90
