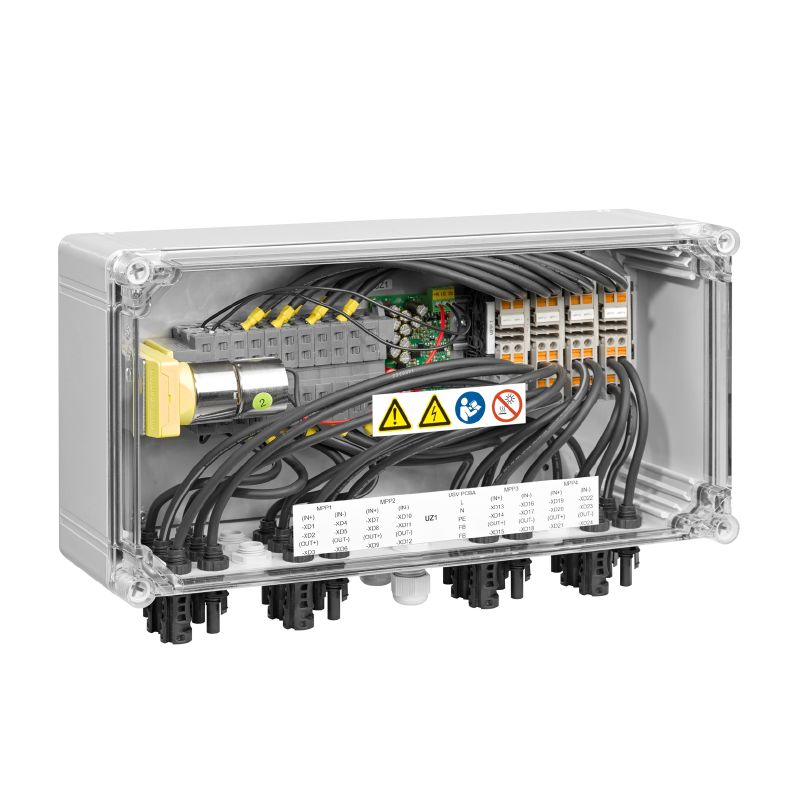

Photovoltaics, Combiner Box, Fireman's switch, PV Next, 1100 V, 4 MPP´s, 2 Inputs / 1 Output per MPP, Remote disconnector, MC4-Evo 2

항목 번호 8000111429
Gegevensblad downloaden Product Downloads Engineering Support
Lisävarusteet 13 On lisävaruste 5 Samankaltaiset tuotteet 26
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Included in delivery Guarantee Electrical characteristics Enclosure General data Inputs Outputs Remote disconnector Classifications Tender specification sheets

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Version
Photovoltaics, Combiner Box, Fireman's switch, PV Next, 1100 V, 4 MPP´s, 2 Inputs / 1 Output per MPP, Remote disconnector, MC4-Evo 2
Order No.
8000111429
Type
PVC DC 2I 1O 4MPP RD EVO 11
GTIN (EAN)
4099986853614
Qty.
1 items

Dimensions and weights

Depth
132 mm
Byggdjup (tum)
5,197 inch
Height
239 mm
Height (inches)
9,409 inch
Width
400 mm
Width (inches)
15,748 inch
Net weight
5 010 g

Temperatures

Ambient temperature
-20 °C…50 °C
Humidity
5...95 %, no condensation

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
7a, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
bdab5698-6a20-4370-8e28-8810d882d01a

Included in delivery

Included accessories
  • Article:
    Mounting foot
  • Quantity:
    4
  • Article:
    Sealing plug
  • Quantity:
    1

Guarantee

Time interval
5 years

Electrical characteristics

Prąd na maksymalny punkt mocy, maks.
41 A
Tensione DC nominale
1 100 V
Номинальный постоянный ток на соединение
  • Current per string, max.:
    41 A
정격 단기 전류 저항
  • Rated current:
    51,25 A

Enclosure

Clase de protección
II
Enclosure attachment
Via mounting foots
Impact resistance
IK08 in accordance with IEC 62208
IK10 in accordance with IEC 62262
Isolierstoff
Polyester glass-fibre reinforced, Polycarbonate
Ligne type de raccordement
Plug MC4-Evo 2
Montageart
Fixing lugs

General data

Installation location
Protected outdoor area (Land and Sea)
Védelmi osztály
IP65

Inputs

Amount of maximum power points (MPP)
4
DC Input + & -
  • Wire connection:
    • Type of connection:
      Stäubli MC4-Evo 2 connector
    • Wire cross-section, min.:
      2,5 mm²
    • Wire cross-section, max.:
      6 mm²
  • Cable entry:
    • Number of cable entries:
      8
Fuse type
Neither fuse cartridge nor holder
Fuses
No
Max. number of DC inputs
per Maximum Power Point 2 inputs connected in parallel
Number of conduit inlets
3
Number of string inputs per MPP
≤ 2
Number of inputs
8

Outputs

DC Output + & -
  • Wire connection:
    • Type of connection:
      Stäubli MC4-Evo 2 connector
    • Compatible cable crossection:
      TÜV 2 Pfg1169/08.07
    • Wire cross-section, min.:
      2,5 mm²
    • Wire cross-section, max.:
      6 mm²
Max. number of DC outputs
per Maximum Power Point 1 output

Remote disconnector

Automatic reclosing after voltage drop
Yes
Number of operating cycles
10000
Control voltage
100 V AC - 250 V AC 50/60Hz
Fjärrfrånskiljare hjälpkontakt
  • Cable entry:
    • Number of cable entries:
      1
  • Wire connection:
    • Type of connection:
      Screw terminal connectors
    • Flexible, max. H05(07) V-K:
      1,5 mm²
    • w. wire end ferrule, DIN 46228 pt 1, max.:
      1,5 mm²
Remote disconnector control contact
  • Cable entry:
    • Number of cable entries:
      1
  • Wire connection:
    • Type of connection:
      Screw terminal connectors
    • Flexible, max. H05(07) V-K:
      1,5 mm²
    • w. wire end ferrule, DIN 46228 pt 1, max.:
      1,5 mm²
Type of power circuit disconnection
Under voltage tripping
Turn-off time
1.5 s
Current consumption of switch
  • Type of switch:
    Fireman switch
  • Current consumption, note:
    The Peak current only arises for a short time when the capacitors of the fireman switch were previously completely discharged.
  • Current consumption peak:
    300 mA
  • Current consumption continuous:
    30 mA
Number of breaking operation cycles at rated current
300
Switch disconnector execution
Remote disconnector inside enclosure
Switching disconnector capacity
DC-PV1
IEC 60947-3

Classifications

ETIM 8.0
EC003857
ETIM 9.0
EC003857
ETIM 10.0
EC003857
ECLASS 14.0
22-57-02-92
ECLASS 15.0
22-57-02-92

Tender specification sheets

Long specification

Combiner box for inverters with Fireman switch for the connection to 4 MPP tracker.
Suitable for remote disconnection of the DC side by the fire department according to VDE-AR-E2100-712.
Max. string voltage Uoc: 1100 VDC

MPP1:
2 inputs, connection via MC4-Evo 2 connector, compatible with cable type TÜV 2 Pfg1169/08.07 / EN 50618:2063
1 output, connection via MC4-Evo 2 connector, compatible with cable type TÜV 2 Pfg1169/08.07 / EN 50618:2063

MPP2 to 4:
identical to MPP1

DC fireman switch:
Switching off by undervoltage tripping.
Switching off by reaching a temperature of ≥ 100 °C in the housing.
Automatic reconnection after the control voltage (230 V AC) is applied again.
With signal contact.

Connection of the fireman switch control line 230 VAC via M16 cable glands (Clamping range 5-10 mmØ) max. conductor cross-section: 1.5 mm².
Connection of the signal contact 24 VDC (max. 300 mA) via M16 cable glands (Clamping range 5-10 mmØ) max. conductor cross-section: 1.5 mm².
Protection class: IP65.
All built into a glas fibre reinforced polyester housing. Dimensions HxWxD: 239x400x132 mm.

Approval according to low voltage switchgear IEC 61439-1 and EN 61439-2
