Q 20 WDL2.5S

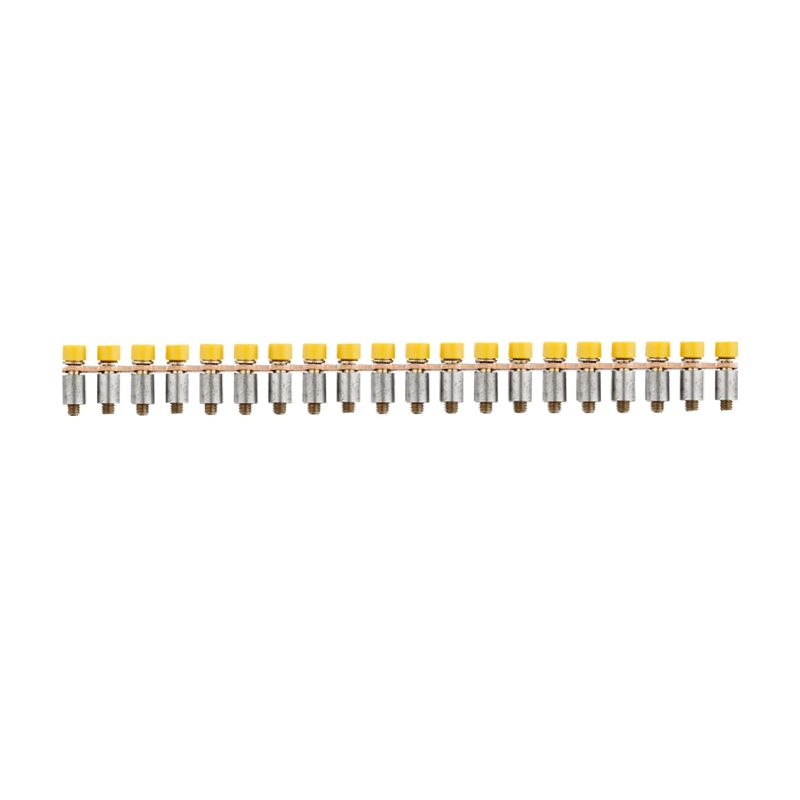

Product image

Q 20 WDL2.5S

Cross-connector (terminal), when screwed in, yellow, 24 A, Number of poles: 20, Pitch in mm (P): 6.10, Insulated: Yes, Width: 4 mm

Product ID 1074200000
Gegevensblad downloaden Engineering Support Product Downloads
Is accessoire van 8 Verwante producten 49
Agréments General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data System specifications Additional technical data wymiary General 등급 데이터 Product images Classifications

Agréments

ROHS
Conforme

General ordering data

Version
Cross-connector (terminal), when screwed in, yellow, 24 A, Number of poles: 20, Pitch in mm (P): 6.10, Insulated: Yes, Width: 4 mm
Order No.
1074200000
Type
Q 20 WDL2.5S
GTIN (EAN)
4008190910501
Qty.
20 items

Dimensions and weights

Depth
9,5 mm
Depth (inches)
0,374 inch
Height
119,9 mm
Height (inches)
4,72 inch
Width
4 mm
Szélesség (coll)
0,157 inch
Net weight
15,55 g

Temperatures

Storage temperature
-25 °C...55 °C
Ambient temperature
-5 °C…40 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
Pas de SVHC au-dessus de 0,1 % en poids

Material data

Basic material
tinned copper
Colour
giallo

System specifications

Version
For the terminals

Additional technical data

Explosion-tested version
No
Installation advice
Feed-through (bushing)
Direct mounting
Type of fixing
when screwed in

wymiary

Pitch in mm (P)
6,1 mm

General

Installation advice
Feed-through (bushing)
Direct mounting
Number of poles
20

등급 데이터

Znamionowe natężenie prądu
24 A

Product images

Classifications

ETIM 8.0
EC000489
ETIM 9.0
EC000489
ETIM 10.0
EC000489
ECLASS 14.0
27-25-03-03
ECLASS 15.0
27-25-03-03
