SAIL-M12GM12W-4-3.0UGE
SAIL-M12GM12W-4-3.0UGE
Detailed drawing
Male, straight
SAIL-M12GM12W-4-3.0UGE
Dimensioned drawing
Angled socket
SAIL-M12GM12W-4-3.0UGE
Pole scheme
Pin
SAIL-M12GM12W-4-3.0UGE
Pole scheme
Socket
SAIL-M12GM12W-4-3.0UGE
Wiring diagram

SAIL-M12GM12W-4-3.0UGE

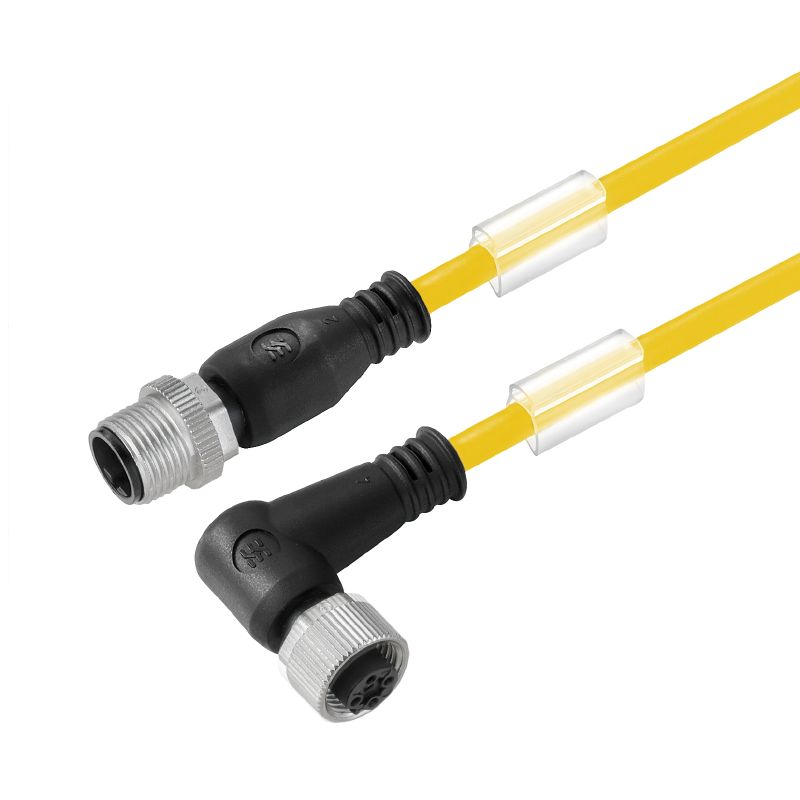

Sensor/actuator line, Connecting line, M12 / M12, Number of poles : 4, 3 m, pin, straight - socket, 90°, Shielded: No, LED: No, Sheath material: PUR, Halogen: No

Produkt ID 1093070300
Download datablad Produktdownloads Engineering-support
Tilbehør 7 Anvendte produkter 5
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Electrical properties General standards Standards Plug, left Plug, right Product images Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Version
Sensor/actuator line, Connecting line, M12 / M12, Number of poles : 4, 3 m, pin, straight - socket, 90°, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Order No.
1093070300
Type
SAIL-M12GM12W-4-3.0UGE
GTIN (EAN)
4032248865321
Qty.
1 Styk

Dimensions and weights

Net weight
88 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Technical specifications for cable

Acceleration
5 m/s²
Bending cycles at torsion
> 5 Mio.
Bending radius, min., moving
10 x cable diameter
Bending radius, min., stationary
5 x cable diameter
Cable length
3 m
Ciclos de flexión
5 Mio
Core cross-section
0,34 mm²
Core in accordance with UL AWM style
10493 (80 °C / 300 V)
Halogen
No
Insulation
PP
Köpeny anyaga
PUR
LABS-free
Yes
Length of torsion
1 m
Lunghezza cavo configurabile
Yes
Number of poles
4
Outer cladding in accordance with UL AWM style
20549 (80 °C / 300 V)
Outside diameter
4.7 mm ± 0.2 mm
Resistance to oils
in accordance with IEC 60811:404
Resistance to spread of flame
In accordance with UL1581 UL / CUL FT2
in accordance with IEC 60332-2-2
Resistant to welding beads
No
Sheathing colour
yellow
Shielded
No
Speed
5 m/s
Suitable for cable carriers
Yes
Temperature range, moving
-25...80 °C
Temperature range, stationary
-40...80 °C
Vridtålighet
360 °/m
Облучение с перекрестными связями
No
Стойкость к сварочным искрам
No
Цветовая кодировка
brown
white
blue
black
가수분해 및 미생물 내성
Yes

General technical data

Coding
A-coded
Connection thread
M12 / M12
Contact surface
Gold-plated
Housing main material
PUR
Insulation resistance
108 Ω
jumpered
No
LED
No
Nominal current
4 A
Nominal voltage
250 V
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP67
IP68
when fully mounted
IP65
IP66
Shock and vibration proof according to
Section B
Temperature range of housing
-25…+85 °C
Threaded ring material
Brass, nickel-plated
Tightening torque
M12: 0.8 - 1.2 Nm
Version
pin, straight - socket, 90°

Electrical properties

Insulation resistance
108 Ω
Nominal voltage
250 V

General standards

Steckverbinder Norm
IEC 61076-2-101

Standards

Connector standard
IEC 61076-2-101
Odolnost proti otřesům a vibracím podle
Section B

Plug, left

Plug left
M12, A-coded, IP69, male contact, straight, Plastic, unshielded

Plug, right

Plug right
M12, A-coded, IP69, female contact, angled 90°, Plastic, unshielded

Product images

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
