Eigenschappen

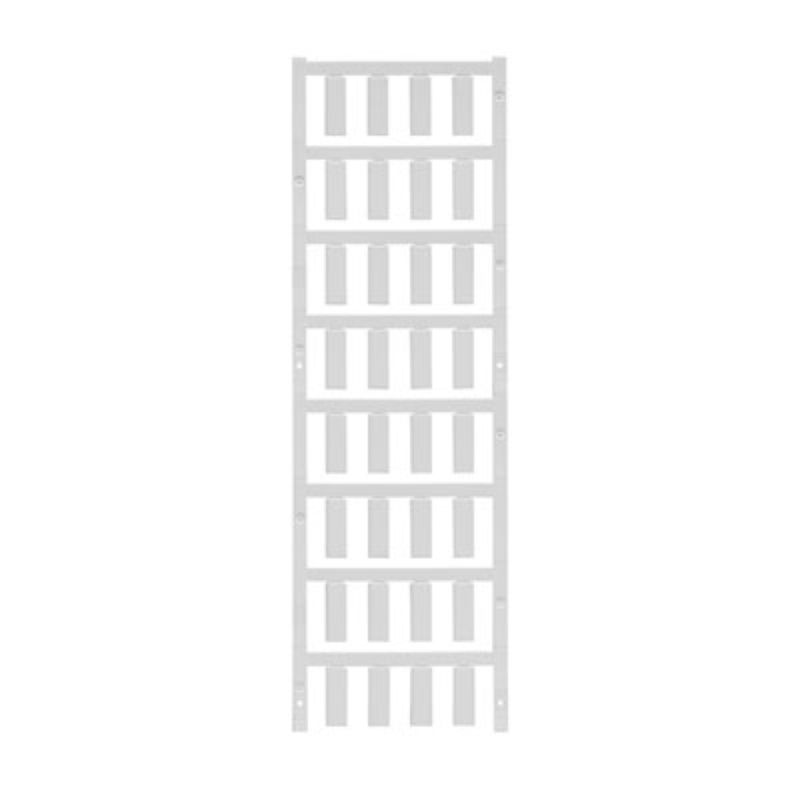

| Version | SlimFix, Conductor and cable markers, 4.8 - 7.4 mm, 21 x 7.4 mm, To customer specification |
| Order No. | 1919110000 |
| Type | SF 5/21 MC SDR V2 |
| GTIN (EAN) | 4032248555437 |
| Qty. | 32 items |
| Depth | 8 mm |
| Depth (inches) | 0,315 inch |
| Height | 21 mm |
| Height (inches) | 0,827 inch |
| Width | 7,4 mm |
| Width (inches) | 0,291 inch |
| Net weight | 1,03 g |
| Operating temperature range | -40...100 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Advice label | Colour based on customer requirements (Please send M-Print PRO file) |
| Colour | To customer specification |
| Colour of printing | black |
| compatible printer | [PRINTJET CONNECT](~/p/2715590000) |
| Halogen | No |
| Material | Polyamide 66 |
| Number of markers per combination | 1 MultiCard = Conductor and cable markers |
| Number of markers per packaging unit |
|
| Operating temperature range | -40...100 °C |
| Operating temperature range, max. | 100 °C |
| Operating temperature range, min. | -40 °C |
| Orientation of print | horizontal |
| Printed characters | Based on customer requirements (Please send M-Print PRO file) |
| Printing method | MC Laser |
| Size of labelling field | 21 x 7.4 mm |
| Type of printing | To customer specification |
| UL 94 flammability rating | V-2 |
| Width | 7,4 mm |
| Conductor cross-section, max. | 10 mm² |
| Conductor cross-section, min. | 6 mm² |
| Conductor O.D. | 4.8 - 7.4 mm |
| Conductor O.D., max. | 7,4 mm |
| Conductor O.D., min. | 4,8 mm |
| Cross-section for connected wire | 6 - 10 mm² |
| Halogen | No |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1919110000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001530 |
| ETIM 7.0 | EC001530 |
| ETIM 8.0 | EC001530 |
| ETIM 9.0 | EC001530 |
| ECLASS 9.0 | 27-40-04-01 |
| ECLASS 9.1 | 27-40-04-01 |
| ECLASS 10.0 | 27-40-04-01 |
| ECLASS 11.0 | 27-28-11-02 |
| ECLASS 12.0 | 27-28-11-02 |
| ECLASS 13.0 | 27-28-11-02 |
| ECLASS 14.0 | 27-28-11-02 |
| ROHS | Conform |
