SHL-SMT 5.00/03GL 4.2RL
Product image
SHL-SMT 5.00/03GL 4.2RL
Example of use
SHL-SMT 5.00/03GL 4.2RL

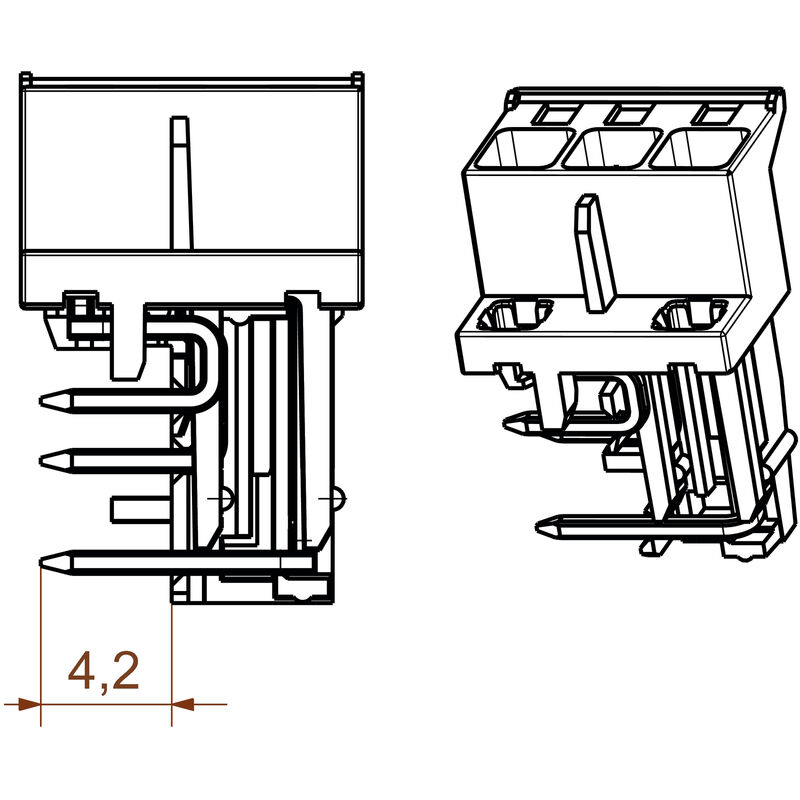

Dimensioned drawing
SHL-SMT 5.00/03GL 4.2RL
Example of use
delivery
SHL-SMT 5.00/03GL 4.2RL
Example of use
delivery

SHL-SMT 5.00/03GL 4.2RL

PCB plug-in connector, Connection element, left, male header, open side, THT/THR solder connection, 5.00 mm, Number of poles: 3, 90°, Solder pin length (l): 4.2 mm, tinned, black, Tape

Item No. 1069660000
Download data sheet Engineering Support Product Downloads
Is accessory of 1 Related products 4
Approvals General ordering data Dimensions and weights Environmental Product Compliance System Parameters Material data Rated data acc. to IEC Rated data acc. to CSA Rated data acc. to UL 1059 Данные о материалах Общие данные Important note Classifications

Approvals

Zulassungen
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319226/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319230/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Zertifikat-Nr. (cURus)
E60693

General ordering data

Ausfuehrung
PCB plug-in connector, Connection element, left, male header, open side, THT/THR solder connection, 5.00 mm, Number of poles: 3, 90°, Solder pin length (l): 4.2 mm, tinned, black, Tape
Best.-Nr.
1069660000
Art
SHL-SMT 5.00/03GL 4.2RL
GTIN (EAN)
4032248825226
Qty.
175 items
Product data
IEC: 400 V
UL: 300 V / 9 A / AWG 26 - AWG 12
Packaging
Tape

Dimensions and weights

Tiefe
23.2 mm
Depth (inches)
0.913 inch
Höhe
14.4 mm
Height (inches)
0.567 inch
Height of lowest version
11.2 mm
Breite
15.6 mm
Width (inches)
0.614 inch
Länge
0 mm
Nettogewicht
2.79 g

Environmental Product Compliance

RoHS-Konformitätsstatus
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System Parameters

Produktfamilie
OMNIMATE Housing - series CH20M
Anschlussart
Board connection
Raster in mm (P)
5 mm
Raster in Zoll (P)
0.197 "
Polzahl
3
L1 in mm
10 mm
L1 in Zoll
0.394 "
Anzahl Reihen
1
Polreihenzahl
1
Protection degree
IP20
Durchgangswiderstand
≤5 mΩ
Může být kódováno
Yes

Material data

Insulating material
LCP
Farbe
black
Carta de colores (similar)
RAL 9011
Isolierstoffgruppe
IIIa
Índice de resistencia al encaminamiento eléctrico (CTI)
175 ≤ CTI <400
Moisture Level (MSL)
1
UL 94 flammability rating
V-0
Kontaktmaterial
Copper alloy
Powierzchnia styku
tinned
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-40 °C
Operating temperature, max.
120 °C
Temperature range, installation, min.
-30 °C
Temperature range, installation, max.
120 °C

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Bemessungsstrom, max. Polzahl (Tu=20°C)
10 A
Bemessungsstrom, max. Polzahl (Tu=40°C)
9 A
Tensión nominal con categoría de sobretensión/grado de polución II/2
400 V
Tensión nominal con categoría de sobretensión/grado de polución III/2
320 V
Bemessungsspannung bei Überspannungsk./Verschmutzungsgrad III/3
250 V
Tensione di dimensionamento con classe di sovratensione/grado di lordura II/2
4 kV
서지 전압 클래스 정격 임펄스 전압 / 오염 등급 III/2
4 kV
Bemessungsstoßspannung bei Überspannungsk./Verschmutzungsgrad III/3
4 kV

Rated data acc. to CSA

Institut (CSA)
CSA
Zertifikat-Nr. (CSA)
200039-70153051
Nennspannung (Use group B / CSA)
300 V
Nennspannung (Use group C / CSA)
50 V
Nennspannung (Use group D / CSA)
300 V
Névleges áram (B felhasználási csoport / CSA)
9 A
Nennstrom (Use group C / CSA)
9 A
Nennstrom (Use group D / CSA)
9 A
Leiteranschlussquerschnitt AWG, min.
AWG 26
Leiteranschlussquerschnitt AWG, max.
AWG 12
Hinweis zu den Zulassungswerten
Specifications are maximum values, details - see approval certificate.

Rated data acc. to UL 1059

Institut (cURus)
CURUS
Zertifikat-Nr. (cURus)
E60693
Nennspannung (Use group B / UL 1059)
300 V
Nennspannung (Use group C / UL 1059]
50 V
Nennspannung (Use group D / UL 1059)
300 V
정격 전류(사용 그룹 B / UL 1059)
9 A
정격 전류(사용 그룹 C / UL 1059)
9 A
Rated current (Use group D / UL 1059)
9 A
Leiteranschlussquerschnitt AWG, min.
AWG 26
Wire cross-section, AWG, max.
AWG 12
Hinweis zu den Zulassungswerten
Specifications are maximum values, details - see approval certificate.

Данные о материалах

Brennbarkeitsklasse nach UL 94
V-0
Isolierstoff
LCP
Isolierstoffgruppe
IIIa
Kriechstromfestigkeit (CTI)
175 ≤ CTI <400

Общие данные

Farbe
svart
Farbtabelle (ähnlich)
RAL 9011
Schutzart
IP20
Vergießbarkeit
No

Important note

IPC-Konformität
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.

Classifications

ETIM 8.0
EC002637
ETIM 9.0
EC002637
ETIM 10.0
EC002637
ECLASS 14.0
27-46-02-01
ECLASS 15.0
27-46-02-01
