SL-SMT 3.50/16/180LF 1.5SN BK BX

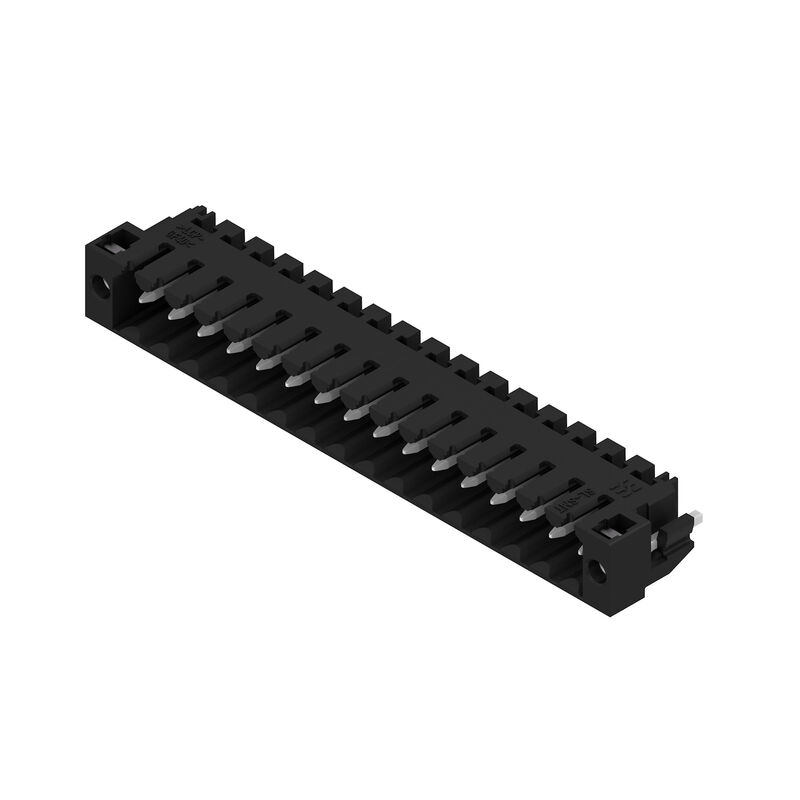

Product image
SL-SMT 3.50/16/180LF 1.5SN BK BX
Product image
SL-SMT 3.50/16/180LF 1.5SN BK BX
Dimensional drawing

SL-SMT 3.50/16/180LF 1.5SN BK BX

Dette produkt er snart ikke længere tilgængeligt.

Последняя дата заказа: /Date(1793401200000)/

PCB plug-in connector, male header, Solder flange, THT/THR solder connection, 3.50 mm, Number of poles: 16, 180°, Solder pin length (l): 1.5 mm, tinned, black, Box

Produkt ID 1804840000
Download datablad Engineering-support Produktdownloads
Tilbehør 2 Er et modstykke til 6 Anvendte produkter 25
Approvals General ordering data Dimensions and weights Environmental Product Compliance System specifications Material data Rated data acc. to IEC Rated data acc. to CSA Rated data acc. to UL 1059 Packing Important note Classifications

Approvals

Zulassungen
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/70d4994d-1e1f-4a62-8b8a-96bcbd57aca3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Núm. de certificación (UR)
E60693

General ordering data

Version
PCB plug-in connector, male header, Solder flange, THT/THR solder connection, 3.50 mm, Number of poles: 16, 180°, Solder pin length (l): 1.5 mm, tinned, black, Box
Order No.
1804840000
Tipo
SL-SMT 3.50/16/180LF 1.5SN BK BX
GTIN (EAN)
4032248268610
Cantidad
24 Styk
Product data
IEC: 320 V / 15 A
UL: 300 V / 10 A
Packaging
Box
배송 상태
This article will no longer be available in the future.
Последняя дата заказа
/Date(1793401200000)/

Dimensions and weights

Tiefe
7,5 mm
Byggdjup (tum)
0,295 inch
Height
12,6 mm
Height (inches)
0,496 inch
Height of lowest version
11,1 mm
Breite
63 mm
Width (inches)
2,48 inch
正味重量
5,8 g

Environmental Product Compliance

RoHS-Konformitätsstatus
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System specifications

Product family
OMNIMATE Signal - series BL/SL 3.50
Type of connection
Board connection
Mounting onto the PCB
THT/THR solder connection
Pitch in mm (P)
3,5 mm
Pitch in inches (P)
0,138 "
Outgoing elbow
180°
Количество полюсов
16
Number of solder pins per pole
1
Solder pin length (l)
1,5 mm
Solder pin length tolerance
0 / -0.3 mm
Wymiary kołka lutowniczego
d = 1.2 mm
Octagonal
Solder pin dimensions = d tolerance
0 / -0,03 mm
Średnica otworu oczka lutowniczego (D)
1,4 mm
Solder eyelet hole diameter tolerance (D)
+ 0,1 mm
Outside diameter of solder pad
2,3 mm
Średnica otworu w szablonie
2,1 mm
L1 in mm
52,5 mm
L1 in inches
2,067 "
Number of rows
1
Pin series quantity
1
Touch-safe protection acc. to DIN VDE 57 106
finger-safe plugged/ back-of-hand-safe unplugged
Touch-safe protection acc. to DIN VDE 0470
IP20 plugged/ IP10 unplugged
Protection degree
IP10
Volume resistance
≤5 mΩ
Can be coded
Yes
Plugging cycles
25
Plugging force/pole, max.
6 N
Pulling force/pole, max.
6 N

Material data

絶縁材
LCP GF
Colori
black
Tabella dei colori (simile)
RAL 9011
Gruppo materiali isolanti
IIIa
Сравнительный показатель пробоя (CTI)
≥ 175
Moisture Level (MSL)
1
UL 94 flammability rating
V-0
Érintkező anyaga
Cu-alloy
Érintkező felület
tinned
Layer structure of solder connection
2...3 µm Ni / 5...7 µm Sn
Layer structure of plug contact
2...3 µm Ni / 5...7 µm Sn
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
100 °C
Temperature range, installation, min.
-30 °C
Temperature range, installation, max.
100 °C

Rated data acc. to IEC

testad enligt standard
IEC 60664-1
IEC 61984
定格電流、最小極数 （Tu=20°C）
15 A
Corrente di dimensionamento, numero massimo di poli (Tu=20 °C)
12 A
Corrente di dimensionamento, numero minimo di poli (Tu=40 °C)
13 A
Névleges áram, maximális pólusszám (Tu=40°C)
10 A
Номинальное импульсное напряжение при категории помехозащищенности/Категория загрязнения II/2
320 V
Номинальное импульсное напряжение при категории помехозащищенности/Категория загрязнения III/2
160 V
サージ電圧等級の定格電圧 / 汚染度 III/3
160 V
znamionowe napięcie udarowe przy kat. przepięć/stopniu zanieczyszczenia II/2
2,5 kV
znamionowe napięcie udarowe przy kat. przepięć/stopniu zanieczyszczenia III/2
2,5 kV
Névleges lökőfeszültség a III/3 túlfeszültség osztályhoz / szennyeződés mértékéhez
2,5 kV
Rövid idejű határáram ellenállás
3 x 1s with 100 A

Rated data acc. to CSA

Institute (CSA)
CSA
Certificate No. (CSA)
200039-1176845
Rated voltage (Use group B / CSA)
300 V
Rated voltage (Use group D / CSA)
300 V
Rated current (Use group B / CSA)
10 A
Rated current (Use group D / CSA)
10 A
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Rated data acc. to UL 1059

Institute (UR)
UR
Certificate No. (UR)
E60693
Rated voltage (Use group B / UL 1059)
300 V
Napięcie znamionowe (grupa użytkowa D / UL 1059)
300 V
Prąd znamionowy (grupa użytkowa B / UL 1059)
10 A
Rated current (Use group D / UL 1059)
10 A
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Packing

Packaging
Box
VPE length
341 mm
VPE width
134 mm
VPE height
21 mm

Important note

IPC conformity
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notes
  • Gold-plated contact surfaces on request
  • Rated current related to rated cross-section & min. No. of poles.
  • Diameter of solder eyelet D = 1.4+0.1mm
  • Solder eyelet diameter D = 1.5 + 0.1 mm, from 9 poles
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002637
ETIM 9.0
EC002637
ETIM 10.0
EC002637
ECLASS 14.0
27-46-02-01
ECLASS 15.0
27-46-02-01
