SL-SMT 5.08HC/07/270GH 3.2SN BK BX

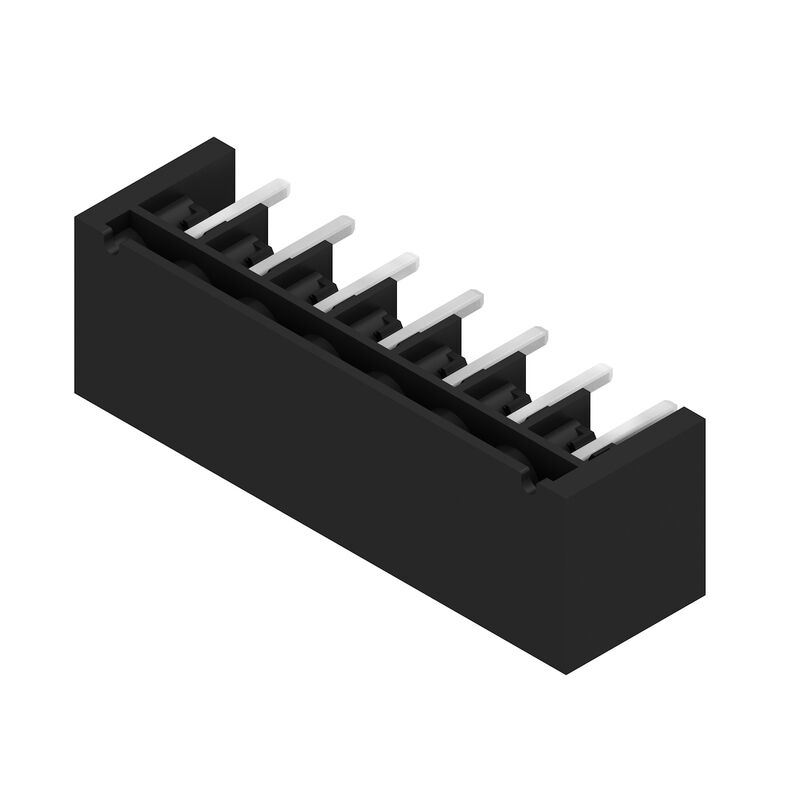

Product image
SL-SMT 5.08HC/07/270GH 3.2SN BK BX

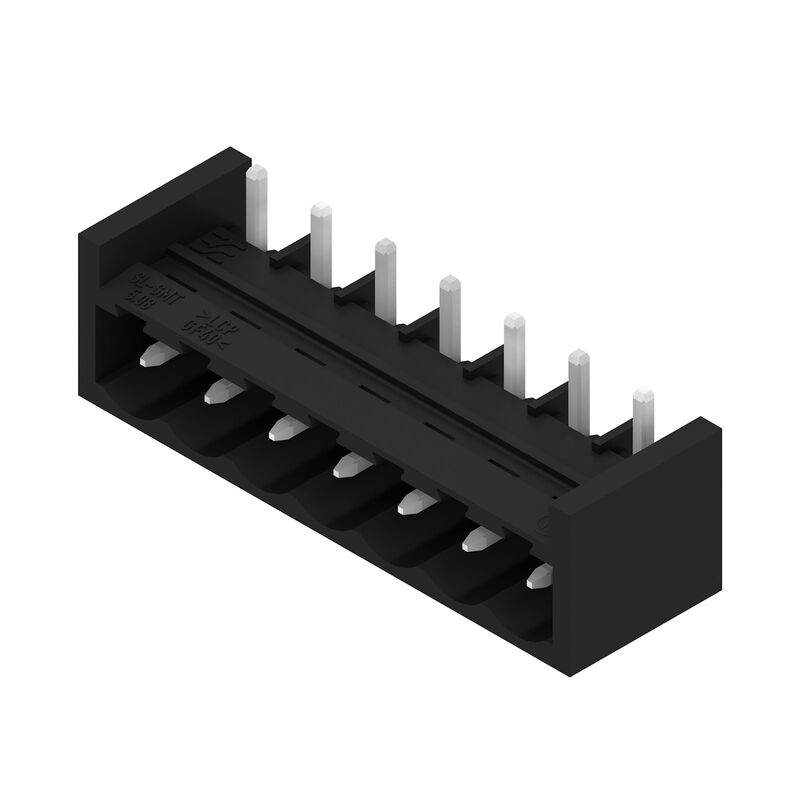

Product image
SL-SMT 5.08HC/07/270GH 3.2SN BK BX
Dimensional drawing
SL-SMT 5.08HC/07/270GH 3.2SN BK BX
Product benefits
Safe power transmission
Proven properties

SL-SMT 5.08HC/07/270GH 3.2SN BK BX

Штекерный соединитель печатной платы, Штырьковый соединитель, с боковой стороны закрыто, Соединение THT/THR под пайку, 5.08 mm, Количество полюсов: 7, 270°, Длина штифта для припайки (l): 3.2 mm, луженые, черный, Ящик

Tuotteen tunnus 1877420000
Lataa tietosivu Tekninen tuki Tuotelataukset
Lisävarusteet 4 On vastine kohteelle 17 Samankaltaiset tuotteet 9
Сертификаты Основные данные для заказа Размеры и массы Экологическое соответствие изделия Specyfikacje systemu Данные о материалах Rated data acc. to IEC Dane znamionowe wg CSA Rated data acc. to UL 1059 Opakowanie Important note Classifications

Сертификаты

Omologazioni
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/70d4994d-1e1f-4a62-8b8a-96bcbd57aca3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
N° certificato (UR)
E60693

Основные данные для заказа

Versione
Штекерный соединитель печатной платы, Штырьковый соединитель, с боковой стороны закрыто, Соединение THT/THR под пайку, 5.08 mm, Количество полюсов: 7, 270°, Длина штифта для припайки (l): 3.2 mm, луженые, черный, Ящик
N. d’ordine
1877420000
Tipo
SL-SMT 5.08HC/07/270GH 3.2SN BK BX
GTIN (EAN)
4032248468058
CPZ
50 items
Product data
IEC: 400 V / 27.5 A
UL: 300 V / 18.5 A
Packaging
Box

Размеры и массы

Profondità
12 mm
깊이 (인치)
0,472 inch
Posizione verticale
14,2 mm
Height (inches)
0,559 inch
Height of lowest version
11 mm
Larghezza
38,76 mm
Width (inches)
1,526 inch
순중량
4,1 g

Экологическое соответствие изделия

Stato conformità RoHS
Соответствует без исключения
REACH SVHC
No SVHC above 0.1 wt%

Specyfikacje systemu

Famiglia prodotti
OMNIMATE Signal - seria BL/SL 5.08
Tipo di collegamento
Board connection
Montaggio su circuito stampato
THT/THR solder connection
Passo in mm (P)
5,08 mm
Passo in pollici (P)
0,2 "
Angolo di uscita
270°
극 수
7
Numero di codoli a saldare per polo
1
Lunghezza spina a saldare (l)
3,2 mm
Tolleranza della lunghezza del codolo a saldare
0 / -0.3 mm
솔더핀 크기
d = 1.2 mm
Octagonal
솔더 구멍 직경(D)
1,4 mm
Solder eyelet hole diameter tolerance (D)
+ 0,1 mm
L1(mm)
30,48 mm
L1 in inches
1,2 "
Number of rows
1
Pin series quantity
1
Touch-safe protection acc. to DIN VDE 57 106
finger-safe unplugged/ back-of-hand-safe plugged
Touch-safe protection acc. to DIN VDE 0470
IP20 plugged/ IP10 unplugged
Protection degree
IP20
Volume resistance
≤5 mΩ
Can be coded
Yes
Plugging force/pole, max.
9 N
Pulling force/pole, max.
7 N

Данные о материалах

절연재
LCP GF
Colori
black
カラーチャート（類似）
RAL 9011
절연재 그룹
IIIa
CTI(Comparative Tracking Index, 비교 추적 지수)
≥ 175
Moisture Level (MSL)
1
UL 94 flammability rating
V-0
접점 재질
Cu-alloy
접점 표면
tinned
Layer structure of solder connection
1...3 µm Ni / 2...4 µm Sn matt
플러그 접점의 레이어 구조
1...3 µm Ni / 2...4 µm Sn matt
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
100 °C
Temperature range, installation, min.
-30 °C
Temperature range, installation, max.
100 °C

Rated data acc. to IEC

표준에 따라 시험완료
IEC 60664-1
IEC 61984
정격 전류, 극 수(Tu=20°C)
27,5 A
정격 전류, 최대 극 수(Tu=20°C)
19 A
定格電流、最小極数 （Tu=40°C）
24 A
정격 전류, 최대 극 수(Tu=40°C)
16,5 A
서지 전압 클래스 정격 전압 / 오염 등급 II/2
400 V
서지 전압 클래스 정격 전압 / 오염 등급 III/2
320 V
서지 전압 클래스 정격 전압 / 오염 등급 III/3
250 V
서지 전압 클래스 정격 임펄스 전압 / 오염 등급 II/2
4 kV
서지 전압 클래스 정격 임펄스 전압 / 오염 등급 III/2
4 kV
서지 전압 클래스 정격 임펄스 전압 / 오염 등급 III/3
4 kV

Dane znamionowe wg CSA

Istituto (CSA)
CSA
N° certificato (CSA)
200039-1176845
Tensione nominale (Gruppo B / CSA)
300 V
Tensione nominale (Gruppo D / CSA)
300 V
Corrente nominale (Gruppo B / CSA)
18,5 A
Corrente nominale (Gruppo D / CSA)
18,5 A
Riferimento ai valori di omologazione
Specifications are maximum values, details - see approval certificate.

Rated data acc. to UL 1059

Istituto (UR)
UR
N° certificato (UR)
E60693
Tensione nominale (Gruppo B / UL 1059)
300 V
정격 전압(사용 그룹 D / UL 1059)
300 V
정격 전류(사용 그룹 B / UL 1059)
18,5 A
정격 전류(사용 그룹 D / UL 1059)
10 A
Riferimento ai valori di omologazione
Specifications are maximum values, details - see approval certificate.

Opakowanie

Imballaggio
skrzynia
Lunghezza VPE
160 mm
Larghezza VPE
65 mm
Altezza VPE
40 mm

Important note

Conformità IPC
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
참고 사항
  • Gold-plated contact surfaces on request
  • Rated current related to rated cross-section & min. No. of poles.
  • Diameter of solder eyelet D = 1.4+0.1mm
  • Solder eyelet diameter D = 1.5 + 0.1 mm, from 9 poles
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002637
ETIM 9.0
EC002637
ETIM 10.0
EC002637
ECLASS 14.0
27-46-02-01
ECLASS 15.0
27-46-02-01
