TOP 24-230VUC 24VDC5A ED2

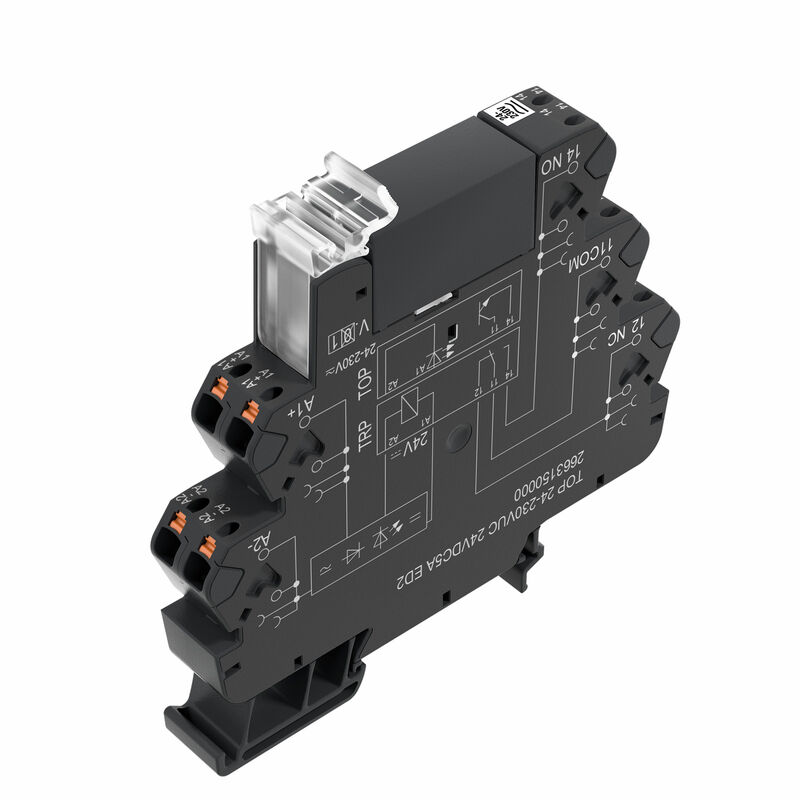

Product image
Similar to illustration
TOP 24-230VUC 24VDC5A ED2

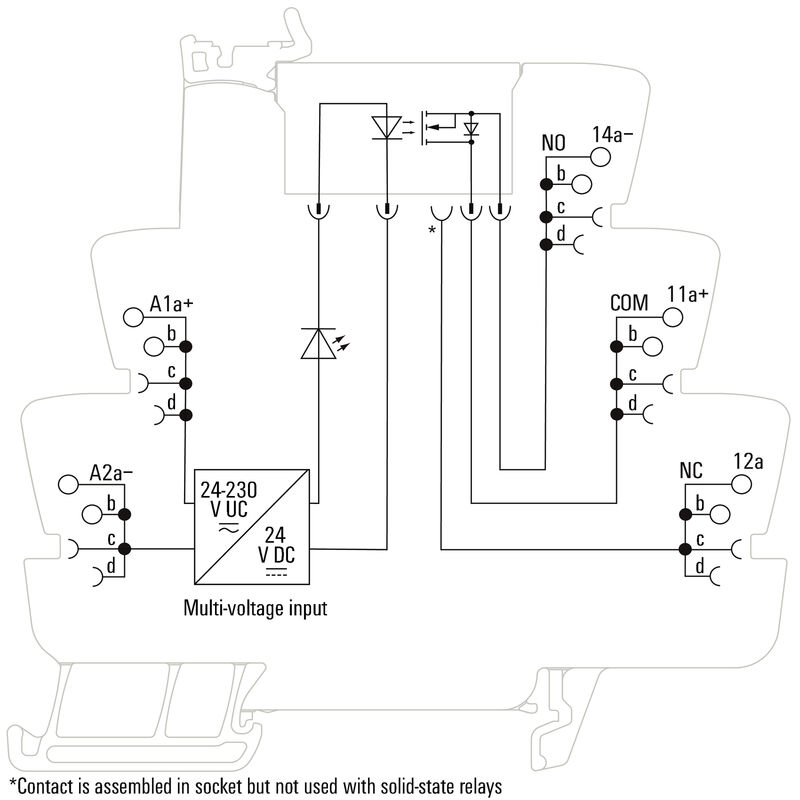

Wiring diagram
TOP 24-230VUC 24VDC5A ED2
Derating curve
TOP 24-230VUC 24VDC5A ED2
Dimensional drawing
TOP 24-230VUC 24VDC5A ED2
Miscellaneous
Type codes

TOP 24-230VUC 24VDC5A ED2

TERMSERIES, Solid-state relay, Rated control voltage: 24…230 V UC ±10 % , Rated switching voltage: 3...33 V DC, Continuous current: 5 A, PUSH IN

Product ID 2663150000
Openen in configurator
Gegevensblad downloaden Engineeringondersteuning Productdownloads
Toebehoren 24 Afzonderlijke onderdelen 2 Verwante producten 2
Approvals General ordering data Dimensions and weights Temperatures Probability of failure Environmental Product Compliance Rated data UL Control side Load side Allmänna uppgifter Insulation coordination Further details of approvals / standards Connection data Classifications

Approvals

인증
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/cbf09862-97e9-475d-b71a-c6db1e3e9933/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certifikat-Nr. (cULus)
E141197

General ordering data

Versione
TERMSERIES, Solid-state relay, Rated control voltage: 24…230 V UC ±10 % , Rated switching voltage: 3...33 V DC, Continuous current: 5 A, PUSH IN
N. d’ordine
2663150000
Tipo
TOP 24-230VUC 24VDC5A ED2
GTIN (EAN)
4050118697926
Qty.
10 items

Dimensions and weights

Profondità
87,8 mm
Depth (inches)
3,457 inch
높이
89,4 mm
Height (inches)
3,52 inch
Larghezza
12,8 mm
Width (inches)
0,504 inch
Nettovikt
60 g

Temperatures

보관 온도
-40 °C...70 °C
주변 온도
-20 °C…60 °C
Humidity
5-95% relative humidity, Tu = 40°C, without condensation

Probability of failure

MTTF
654 a

Environmental Product Compliance

RoHS 준수 상태
Compliant with exemption
RoHS 면제(해당되거나 알려진 경우)
7a, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
9e2cbc49-76d9-4611-b8ec-5b4f549a0aa9

Rated data UL

Temperatura ambiente (operativa), max.
60 °C
Anslutningsdiameter AWG, min.
AWG 26
Connection cross-section AWG, max.
AWG 14
Typ av ledare
rigid copper conductor
flexible copper conductor
Nedsmutsningsgrad
2

Control side

Märkstyrspänning
24…230 V UC ±10 %
Nominal control current
9.5 mA at 24 V DC
1.1 mA at 230 V DC
18 mA at 24 V AC
3.0 mA at 230 V AC
Rated current AC
18 mA @ 24 V AC
3.0 mA @ 230 V AC
Rated current DC
9.5 mA @ 24 V DC
1.1 mA @ 230 V DC
Мощность удержания
230 mW @ 24 V DC
255 mW @ 230 V DC
430 mVA @ 24 V AC
690 mVA @ 230 V AC
Statusindikering
Green LED
Protective circuit
Rectifier
Input frequency
3 Hz
Coil voltage of the replacement relay deviating from the rated control voltage
Yes
Напряжение катушки запасного реле
24 V DC

Load side

Märkkopplingsspänning
3...33 V DC
Normalspänning
5 A
Märkkopplingsström
5 A
Пусковой ток
15 A / 10 ms
Inkopplingsfördröjning
≤ 40 ms
Frånslagsfördröjning
≤ 80 ms
Spänningsfall vid max. last
≤ 0.3 V
Leakage current
<10 µA
мин. коммутационный ток
1 mA
Защита от короткого замыкания
No
Skyddskoppling lastsida
Free-wheeling diode
Contact type
1 NO contact (MOS-FET)
최대 스위치 주파수 (AC 제어 전압)
3 Hz
max. switching frequency (DC control voltage)
3 Hz

Allmänna uppgifter

작동 고도
≤ 2000 m
över havsytan
장착 레일
TS 35
테스트 버튼 사용 가능
No
기계적 스위치 위치 표시
No
Colour
black
UL94 brännbarhetsklass för komponent
  • Component:
    Housing
  • UL94 flammability rating:
    V-0
  • Component:
    Retaining clip
  • UL94 flammability rating:
    V-0
  • Component:
    Pusher
  • UL94 flammability rating:
    V-0

Insulation coordination

정격 전압
300 V
오염 심각도
2
서지 전압 범주
III
Kryp- och luftsträcka styrsida - belastningssida
≥ 6 mm
제어 측면 - 부하 측면에 대한 절연 강도
3.51 kVeff /1 min.
Typ av isolering vid ingång och utgång
reinforced insulation
Тип развязки на соседних контактах
Basic insulation
Электрическая прочность относительно монтажной рейки
3.51 kVeff / 1 min.
Вид защиты
IP20

Further details of approvals / standards

Certificate No. (DNV)
TAA00001E5
인증 번호(cULus)
E141197

Connection data

Tecnica di collegamento cavi
PUSH IN
Lunghezza di spellatura, collegamento di dimensionamento
9 mm
Anslutningsområde, märkarea
1,5 mm²
Clamping range, min.
0,14 mm²
Clamping range, max.
2,5 mm²
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section AWG, max.
AWG 14
Ledardiameter, entrådig min.
0,14 mm²
Wire cross-section, solid, max.
1,5 mm²
Wire cross-section, solid, min. (AWG)
AWG 26
Wire cross-section, solid, max. (AWG)
AWG 16
Wire connection cross section, finely stranded, min.
0,14 mm²
Wire connection cross section, finely stranded, max.
2,5 mm²
Wire cross-section, finely stranded, min. (AWG)
AWG 26
Wire cross-section, finely stranded, max. (AWG)
AWG 14
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,14 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
1,5 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), min.
0,14 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), max.
1,5 mm²
Klingmått
0.4 x 2.0 mm

Classifications

ETIM 8.0
EC001504
ETIM 9.0
EC001504
ETIM 10.0
EC001504
ECLASS 14.0
27-37-16-04
ECLASS 15.0
27-37-16-04
