TRP 24VDC 1CO AGSNO AU PB

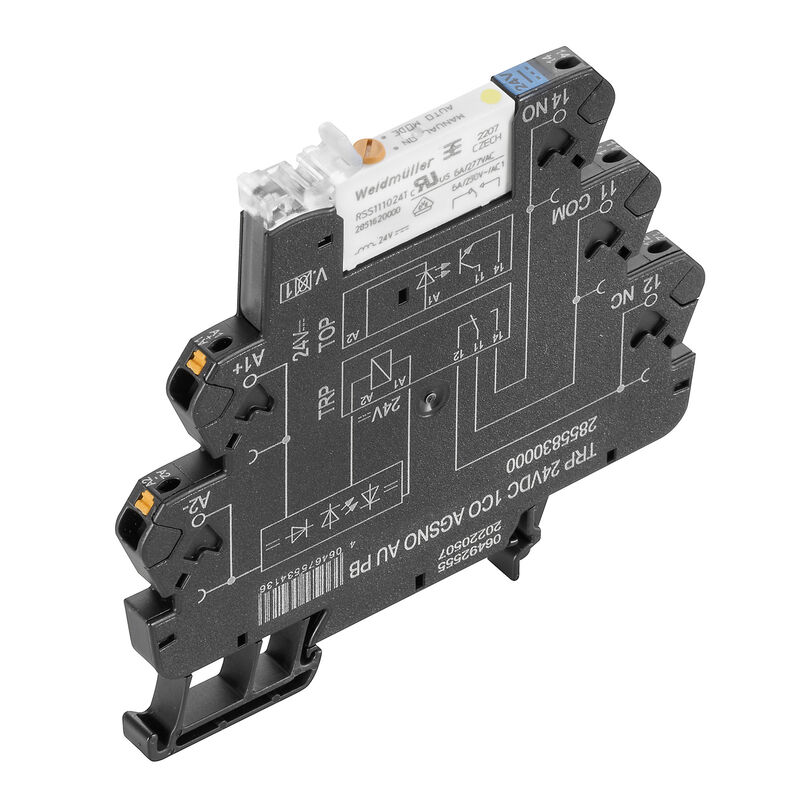

Изображение изделия
Изображение аналогичное
TRP 24VDC 1CO AGSNO AU PB
Схема соединений
TRP 24VDC 1CO AGSNO AU PB
Graph
Кривая предельной нагрузки пост. тока
Резистивная нагрузка
TRP 24VDC 1CO AGSNO AU PB
Кривая ухудшения параметров
TRP 24VDC 1CO AGSNO AU PB
Dimensional drawing
TRP 24VDC 1CO AGSNO AU PB
Miscellaneous
TRP 24VDC 1CO AGSNO AU PB
Miscellaneous
TRP 24VDC 1CO AGSNO AU PB
Miscellaneous
Типы кодов

TRP 24VDC 1CO AGSNO AU PB

TERMSERIES, Relay module, Number of contacts: 1, CO contact AgSnO gold-plated, Rated control voltage: 24 V DC ±20 %, Continuous current: 6 A, PUSH IN, Test button available: Yes

Ürün No. 2855830000
Konfigüratörde aç
Veri sayfasını indir Mühendislik desteği Ürün İndirmleri
Aksesuarlar 28 Münferit parçalar 2 İlgili ürünler 3
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Rated data UL Control side Load side General data Insulation coordination Further details of approvals / standards Connection data Product images Classifications

Approvals

Сертификаты
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certifikat-Nr. (cULus)
E141197

General ordering data

Версия
TERMSERIES, Relay module, Number of contacts: 1, CO contact AgSnO gold-plated, Rated control voltage: 24 V DC ±20 %, Continuous current: 6 A, PUSH IN, Test button available: Yes
Заказ №
2855830000
Тип
TRP 24VDC 1CO AGSNO AU PB
GTIN (EAN)
4064675534136
Qty.
10 adet

Dimensions and weights

Глубина
87,8 mm
Depth (inches)
3,457 inch
Высота
89,4 mm
Height (inches)
3,52 inch
Ширина
6,4 mm
Width (inches)
0,252 inch
순중량
28,44 g

Temperatures

Температура хранения
-40 °C...85 °C
Температура окружающей среды
-40 °C…60 °C
Humidity
5-95% relative humidity, Tu = 40°C, without condensation

Environmental Product Compliance

Состояние соответствия RoHS
Compliant with exemption
Исключение из RoHS (если применимо/известно)
7a, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
9e2cbc49-76d9-4611-b8ec-5b4f549a0aa9

Rated data UL

Температура окружающей среды (рабочая), макс.
60 °C
Output current derating (ohmic)
6 A @ 50 °C
5 A @ 60 °C
Connection cross-section AWG, min.
AWG 26
결선 단면적 AWG, 최대
AWG 14
Type of conductor
rigid copper conductor
flexible copper conductor
Grado di lordura
2

Control side

Névleges vezérlőfeszültség
24 V DC ±20 %
Rated current DC
11.5 mA
Potencia nominal
280 mW
Statusindikering
Green LED
Protective circuit
Free-wheeling diode
Reverse polarity protection
Coil voltage of the replacement relay deviating from the rated control voltage
No
Coil voltage of the replacement relay
24 V DC

Load side

Rated switching voltage
250 V AC
Continuous current
6 A
Max. switching frequency at rated load
0,1 Hz
Max. switching voltage, AC
250 V
Max. switching voltage, DC
250 V
Min. switching power
1 mA @ 1 V
Einschaltstrom
30 A / 20 ms
AC switching capacity (resistive), max.
1500 VA
DC switching capacity (resistive), max.
144 W @ 24 V
Odložení zapnutí
≤ 12 ms
Kikapcsolási késleltetés
≤ 12 ms
Contact type
1 CO contact (AgSnO gold-plated)
Mechanical service life
10 x 106 switching cycles

General data

Рабочая высота
≤ 2000 m
above sea level
Укомплектованная монтажная рейка
TS 35
Кнопка проверки доступна
Yes
Version of test button
Lockable test button
Механический индикатор положения переключателя
No
Colour
black
UL94 flammability rating component
  • Component:
    Housing
  • UL94 flammability rating:
    V-0
  • Component:
    Retaining clip
  • UL94 flammability rating:
    V-0
  • Component:
    Pusher
  • UL94 flammability rating:
    V-0

Insulation coordination

Номинальное напряжение
300 V
Степень загрязнения
2
Категория перенапряжения
III
Uvolnění a povrchové vzdálenosti, kontrolní strana - strana zátěže
≥ 6 mm
Dielectric strength for control side - load side
3.51 kVeff /1 min.
Type of isolation at input and output
reinforced insulation
Dielectric strength of open contact
1 kVeff / 1 min
장착 레일에 대한 절연 강도
4 kVeff / 1 Min.
임펄스 내전압
6 kV (1.2/50 µs)
IP20

Further details of approvals / standards

Certificate no. (cULus)
E141197

Connection data

Метод проводного соединения
PUSH IN
Длина снятия изоляции Измерительное соединение
9 mm
Clamping range, rated connection
1,5 mm²
Clamping range, min.
0,14 mm²
Clamping range, max.
2,5 mm²
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section AWG, max.
AWG 14
Wire cross-section, solid, min.
0,14 mm²
Wire cross-section, solid, max.
1,5 mm²
Wire cross-section, solid, min. (AWG)
AWG 26
Wire cross-section, solid, max. (AWG)
AWG 16
Wire connection cross section, finely stranded, min.
0,14 mm²
Wire connection cross section, finely stranded, max.
2,5 mm²
Wire cross-section, finely stranded, min. (AWG)
AWG 26
Wire cross-section, finely stranded, max. (AWG)
AWG 14
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,14 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
1,5 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), min.
0,14 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), max.
1,5 mm²
Blade size
0.4 x 2.0 mm

Product images

Classifications

ETIM 8.0
EC001437
ETIM 9.0
EC001437
ETIM 10.0
EC001437
ECLASS 14.0
27-37-16-01
ECLASS 15.0
27-37-16-01
