WAP 2.5-10 OR

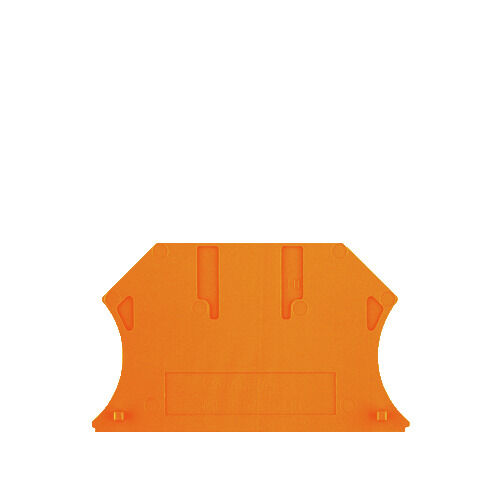

Product image

WAP 2.5-10 OR

End plate for terminals, orange, Height: 56 mm, Width: 1.5 mm, V-0, Wemid, Snap-on: No

Produkt-ID 1050060000
Ladda ner datablad Supporto ingegneristico Download dei prodotti
Является принадлежностью 13 Связанные продукты 417
Tanúsítványok General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data System specifications Additional technical data Dimensions General Obrázky produktů Classifications

Tanúsítványok

ROHS
Megfelel

General ordering data

Version
End plate for terminals, orange, Height: 56 mm, Width: 1.5 mm, V-0, Wemid, Snap-on: No
Order No.
1050060000
Type
WAP 2.5-10 OR
GTIN (EAN)
4008190406769
Qty.
50 items

Dimensions and weights

Depth
33,5 mm
Depth (inches)
1,319 inch
Height
56 mm
Height (inches)
2,205 inch
Width
1,5 mm
Szélesség (coll)
0,059 inch
Net weight
2,57 g

Temperatures

Storage temperature
-25 °C...55 °C
Ambient temperature
-60 °C…85 °C
連続動作温度、最小
-60 °C
Температура при длительном использовании, макс.
130 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
Nincs 0,1 tömeg% feletti SVHC
Product Carbon Footprint
  • Cradle to gate:
    0,023 kg CO2 eq.

Material data

Basic material
Wemid
Colour
arancione
UL 94 flammability rating
V-0

System specifications

Version
End plate

Additional technical data

Installation advice
Direct mounting
Snap-on
No

Dimensions

TS 35 offset
66 mm

General

Installation advice
Direct mounting

Obrázky produktů

Illustration title 02
Produktbild
Dibujo leyenda-02
Similar to illustration

Classifications

ETIM 8.0
EC000886
ETIM 9.0
EC000886
ETIM 10.0
EC000886
ECLASS 14.0
27-25-03-01
ECLASS 15.0
27-25-03-01
