WGK 25 GN/YE BX
Product image
Similar to illustration
WGK 25 GN/YE BX

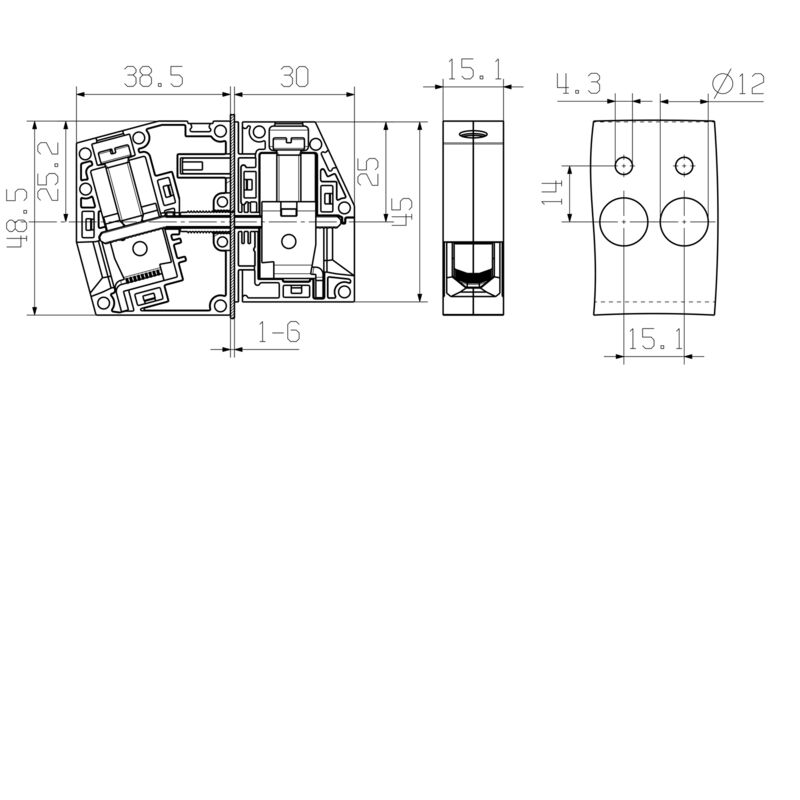

Dimensional drawing
WGK 25 GN/YE BX
Derating curve

WGK 25 GN/YE BX

OMNIMATE Power - series WGK, Feed-through terminal, Rated cross-section: 25 mm², Wemid (PA), Direct mounting, Feed-through (bushing)

Ürün No. 2444650000
Veri sayfasını indir Mühendislik desteği Ürün İndirmleri
Aksesuarlar 6 İlgili ürünler 6
Approvals General ordering data Dimensions and weights Environmental Product Compliance System parameters Material data Conductors suitable for connection Rated data acc. to IEC Rated data acc. to CSA Rated data acc. to UL 1059 Packing Important note Classifications

Approvals

Jóváhagyások
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693

General ordering data

Версия
OMNIMATE Power - series WGK, Feed-through terminal, Rated cross-section: 25 mm², Wemid (PA), Direct mounting, Feed-through (bushing)
Order No.
2444650000
Tipo
WGK 25 GN/YE BX
GTIN (EAN)
4050118482324
Qty.
50 adet
Product data
IEC: 690 V / 101 A / 6 - 35 mm²
UL: 600 V / 100 A / AWG 10 - AWG 3
Packaging
Box

Dimensions and weights

Height
48,5 mm
Height (inches)
1,909 inch
Height of lowest version
48,5 mm
Anchura
15,1 mm
Width (inches)
0,594 inch
Length
14,6 mm
Length (inches)
0,575 inch
Масса нетто
56,866 g

Environmental Product Compliance

RoHS megfelelőségi állapot
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System parameters

Skupina produktů
OMNIMATE Power - series WGK
Wire connection method
Screw connection
Conductor outlet direction
180°
Number of poles
1
Pin series quantity
1
Fitted by customer
No
Screwdriver blade
1.2 x 6.5
Tightening torque, min.
4 Nm
Tightening torque, max.
4,5 Nm
Clamping screw
M 6
Stripping length
18 mm
Touch-safe protection acc. to DIN VDE 0470
IP 20
Protection degree
IP20
Type of connection 1
Clamping yoke
Type of connection 2
Clamping yoke

Material data

Insulating material
Wemid (PA)
Färgkod
Green/yellow
Colour chart (similar)
Not specified
UL 94 flammability rating
V-0
Contact material
Cu-alloy
Contact surface
tinned
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
120 °C
Temperature range, installation, min.
-25 °C
Temperature range, installation, max.
120 °C

Conductors suitable for connection

Clamping range, min.
4 mm²
压接范围，最大
35 mm²
Wire connection cross section AWG, min.
AWG 10
przekrój przyłączeniowy przewodu AWG, maks.
AWG 3
Solid, min. H05(07) V-U
6 mm²
Solid, max. H05(07) V-U
16 mm²
Stranded, min. H07V-R
10 mm²
Stranded, max. H07V-R
35 mm²
Flexible, min. H05(07) V-K
10 mm²
Flexible, max. H05(07) V-K
25 mm²
С наконечником DIN 46 228/4, мин.
4 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.
25 mm²
w. wire end ferrule, DIN 46228 pt 1, min.
4 mm²
w. wire end ferrule, DIN 46228 pt 1, max.
25 mm²
Clampable conductor
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      4 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        18 mm
    • Recommended wire-end ferrule:
      9004110000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      6 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        18 mm
    • Recommended wire-end ferrule:
      9004130000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      10 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        18 mm
    • Recommended wire-end ferrule:
      0379300000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      16 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        18 mm
    • Recommended wire-end ferrule:
      0375200000
Reference text
Length of ferrules is to be chosen depending on the product and the rated voltage.
The outside diameter of the plastic collar should not be larger than the pitch (P)

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
Rated current, min. number of poles (Tu=20°C)
101 A
Rated current, max. number of poles (Tu=20°C)
101 A
Rated voltage for surge voltage class / pollution degree III/3
690 V
Rated impulse voltage for surge voltage class/ contamination degree III/3
6 kV

Rated data acc. to CSA

Rated voltage (Use group B / CSA)
600 V
Rated voltage (Use group C / CSA)
600 V
Rated voltage (Use group D / CSA)
300 V
Rated current (Use group B / CSA)
100 A
Rated current (Use group C / CSA)
100 A
Rated current (Use group D / CSA)
10 A
Wire cross-section, AWG, min.
AWG 10
Wire cross-section, AWG, max.
AWG 3

Rated data acc. to UL 1059

Institute (cURus)
CURUS
Certificate No. (cURus)
E60693
Rated voltage (Use group B / UL 1059)
600 V
Rated voltage (Use group C / UL 1059)
600 V
Rated voltage (Use group D / UL 1059)
300 V
Rated current (Use group B / UL 1059)
100 A
Rated current (Use group C / UL 1059)
100 A
Rated current (Use group D / UL 1059)
10 A
Wire cross-section, AWG, min.
AWG 10
Wire cross-section, AWG, max.
AWG 3
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Packing

Balení
Box
VPE length
423 mm
VPE width
169 mm
VPE height
57 mm

Important note

참고 사항
  • Clearance and creepage distances to other components must be devised in accordance with the relevant application standard. This can be achieved in the device by full encapsulation or by the use of additional spacer plates.
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • Colours: SW = black; GN/YL = green/yellow; GY = grey
  • Additional variants on request
  • WGK: Rated voltage plastic walls: 1 - 6 mm = 800 V; metal walls: 1 - 4 mm = 800 V; metal walls: 4 - 6 mm = 690 V
  • WGKV: Rated voltage plastic walls: 1 - 6 mm = 800 V; metal walls: 1 - 4 mm = 800 V; metal walls: 4 - 6 mm = 690 V
  • WGK…VP: Rated voltage plastic walls: 1 - 6 mm = 800 V; metal walls: 1 - 2.5 mm = 800 V; metal walls: 2.5 - 4 mm = 690 V; metal walls: 4 - 6 mm = 500 V
  • Wire-end ferrules are mandatory for stranded wires with more than 19 strands.
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC001283
ETIM 9.0
EC001283
ETIM 10.0
EC001283
ECLASS 14.0
27-14-11-34
ECLASS 15.0
27-14-11-34
