ZP 2.5/1AN/15 GN/BE

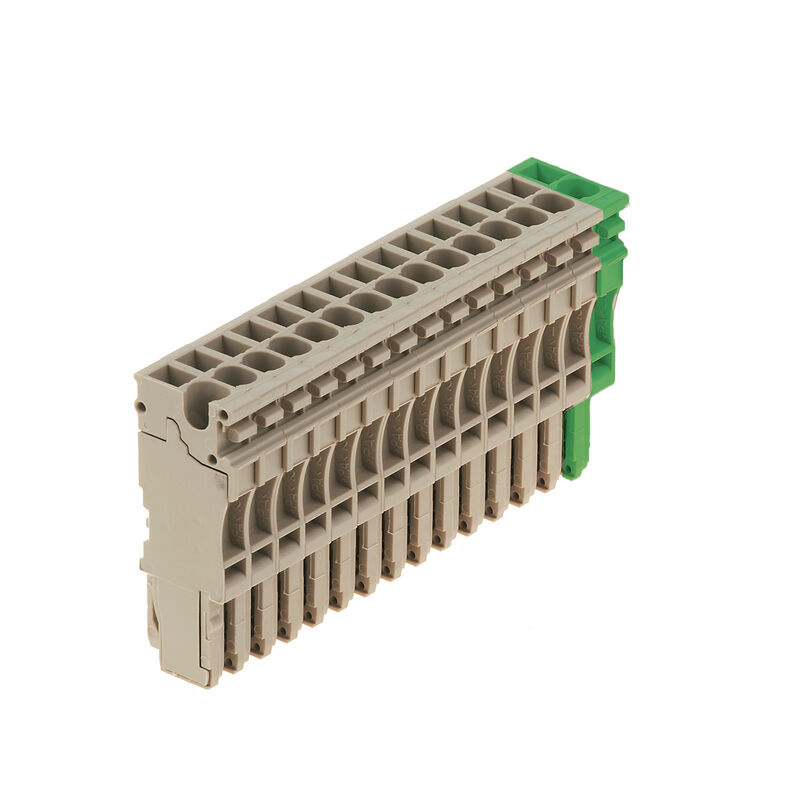

Product image

ZP 2.5/1AN/15 GN/BE

Z-series, Plug-in connector, beige, Direct mounting

Produkt ID 1867220000
Download datablad Engineering Support Product Downloads
Tilbehør 8 Anvendte produkter 325
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data System specifications Additional technical data Conductors for clamping (rated connection) CSA rating data Általános Rating data UL rating data Product images Classifications

Approvals

Agréments
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319221/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319230/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319234/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319244/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certifikat nr (cURus)
E60693

General ordering data

Version
Z-series, Plug-in connector, beige, Direct mounting
Référence
1867220000
Type
ZP 2.5/1AN/15 GN/BE
GTIN (EAN)
4032248475834
Qty.
10 Styk

Dimensions and weights

Profondeur
41 mm
Depth (inches)
1,614 inch
Hauteur
16 mm
Hauteur (pouces)
0,63 inch
Largeur
76,5 mm
Width (inches)
3,012 inch
Net weight
48,5 g

Temperatures

Tárolási hőmérséklet
-25 °C...55 °C
Temperatura ambiente
-5 °C…40 °C
Continuous operating temp., min.
−50 °C
Continuous operating temp., max.
120 °C

Environmental Product Compliance

RoHS megfelelőségi állapot
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Basic material
Wemid
Colour
dark beige
UL 94 flammability rating
V-0

System specifications

Version
Set of connectors
pluggable
Tension-clamp connection
End cover plate required
No
Number of potentials
15
Number of levels
1
Number of clamping points per level
1
Levels cross-connected internally
No
PE connection
Yes

Additional technical data

Installation advice
Přímá montáž
Open sides
닫힘
Type of mounting
instucken

Conductors for clamping (rated connection)

4 mm²
Anslutningsarea, flertrådig, min.
0,13 mm²
Anslutningsområde, min.
0,13 mm²
Anslutningsriktning
top
Anslutningstyp
Plug-in connection
Antal anslutningar
15
Avisoleringslängd
10 mm
Gauge to IEC 60947-1
A2
Klingmått
0,6 x 3,5 mm
Ledararea, entrådig, max.
4 mm²
Ledararea, entrådig, min.
0,13 mm²
Ledararea, fintrådig med ändhylsa DIN 46228/1, max.
2,5 mm²
Ledararea, fintrådig med ändhylsa DIN 46228/1, min.
0,13 mm²
Ledararea, fintrådig med ändhylsor DIN 46228/4, min.
0,13 mm²
Ledararea, fintrådig, min.
0,13 mm²
Ledardiameter, AWG, min.
AWG 12
Ledardiameter, fintrådig, max.
4 mm²
Поперечное сечение подключаемого провода AWG, макс.
AWG 12

CSA rating data

Certificate number (cCSAus)
154685-1460993
Current size C (cCSAus)
20 A
Current size D (cCSAus)
5 A
Spänning Gr C (cCSAus)
300 V
Voltage size D (cCSAus)
600 V
Wire cross section max. (cCSAusX)
12 AWG
Wire cross section min. (cCSAusX)
26 AWG

Általános

Numero di poli
15
Sezione di collegamento cavo AWG, max.
AWG 12
Standards
Zgodnie z wymaganiami IEC 60947-7-1
配線接続断面 AWG、最小
AWG 12
설치 권고
Direct mounting

Rating data

Rated cross-section
2,5 mm²
Rated voltage
500 V
Rated voltage to adjoining terminal
500 V
Max. voltage of clamp support & pluggable system
690 V
Rated DC voltage
500 V
Nominal current
24 A
Current at maximum wires
24 A
Standards
In accordance with IEC 60947-7-1
Volume resistance according to IEC 60947-7-x
1,33 mΩ
Rated impulse withstand voltage
6 kV
Rated impulse withstand voltage to adjacent terminal
6 kV
Power loss in accordance with IEC 60947-7-x
0,77 W

UL rating data

Certificate No. (cURus)
E60693
Conductor size Factory wiring max. (cURus)
12 AWG
Conductor size Factory wiring min. (cURus)
26 AWG
Conductor size Field wiring max. (cURus)
12 AWG
Conductor size Field wiring min. (cURus)
26 AWG
Current size C (cURus)
20 A
Current size D (cURus)
5 A
Voltage size C (cURus)
300 V
Voltage size D (cURus)
600 V

Product images

Classifications

ETIM 8.0
EC002848
ETIM 9.0
EC002848
ETIM 10.0
EC002848
ECLASS 14.0
27-25-03-90
ECLASS 15.0
27-25-03-90
