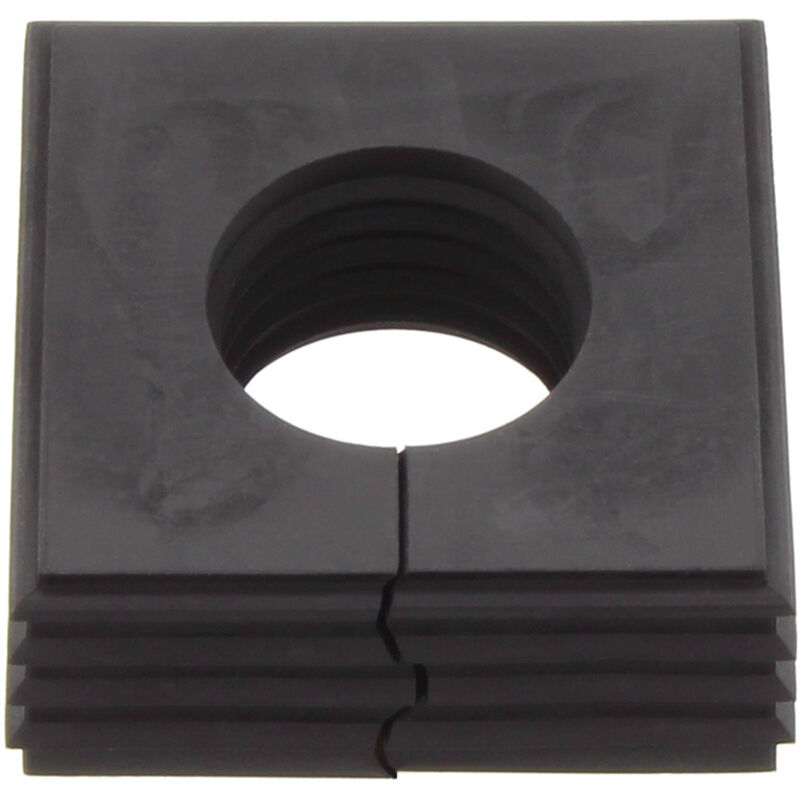

CABTITE SE 21-22 LRG BK
Similar to illustration

CABTITE SE 21-22 LRG BK

Sealing element, Cabtite (cable entry system), TPE, Deep black, Height: 42.8 mm, Width: 42.8 mm, Depth: 17.7 mm, -40 °C…120 °C, IP66

Item No. 2583770000
Download data sheet Engineering Support Product Downloads
Related products 23
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General information Classifications

Approvals

认证
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E223801

General ordering data

Version
Sealing element, Cabtite (cable entry system), TPE, Deep black, Height: 42.8 mm, Width: 42.8 mm, Depth: 17.7 mm, -40 °C…120 °C, IP66
Order No.
2583770000
Type
CABTITE SE 21-22 LRG BK
GTIN (EAN)
4050118616705
Qty.
10 items

Dimensions and weights

Depth
17,7 mm
Depth (inches)
0,697 inch
Height
42,8 mm
Height (inches)
1,685 inch
Width
42,8 mm
Width (inches)
1,685 inch
Net weight
22,44 g

Temperatures

Operating temperature
-40 °C...120 °C

Environmental Product Compliance

RoHS 合规状态
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General information

Brännbarhetsklass enligt UL 94
HB
Grundläggande material
TPE
Halogener
No
Kabeldiameter utsidan max.
22 mm
Kabeldiameter utsidan min.
21 mm
Silikon
No
Skyddsklass
IP66
Tätningselement
1 large sealing element

Classifications

ETIM 8.0
EC000879
ETIM 9.0
EC000879
ETIM 10.0
EC000879
ECLASS 14.0
27-14-08-07
ECLASS 15.0
27-14-08-07
