SAIEW-M12SB-4-HTL
SAIEW-M12SB-4-HTL

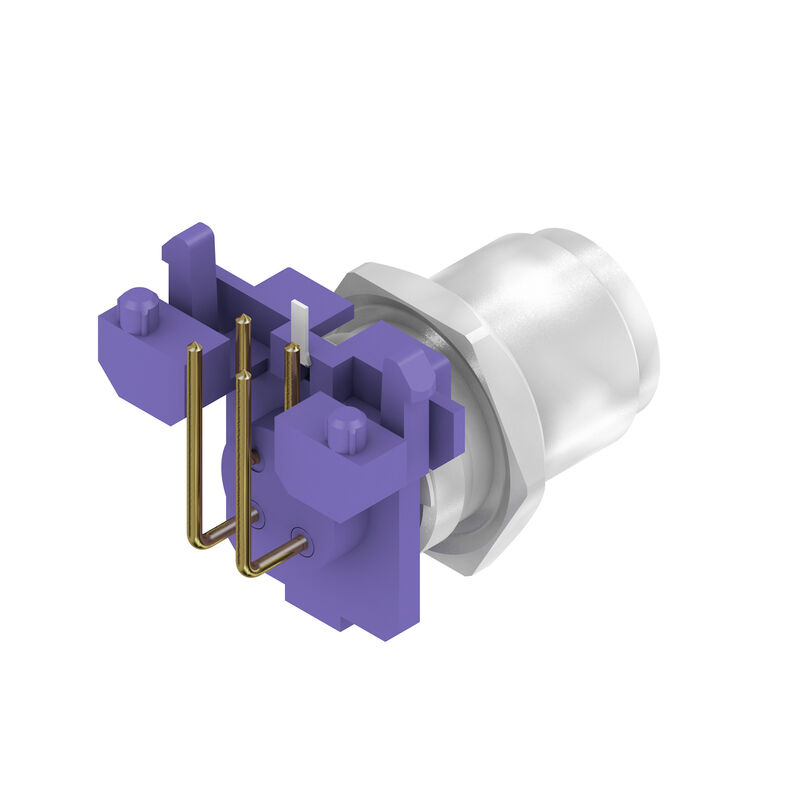

Product image
SAIEW-M12SB-4-HTL

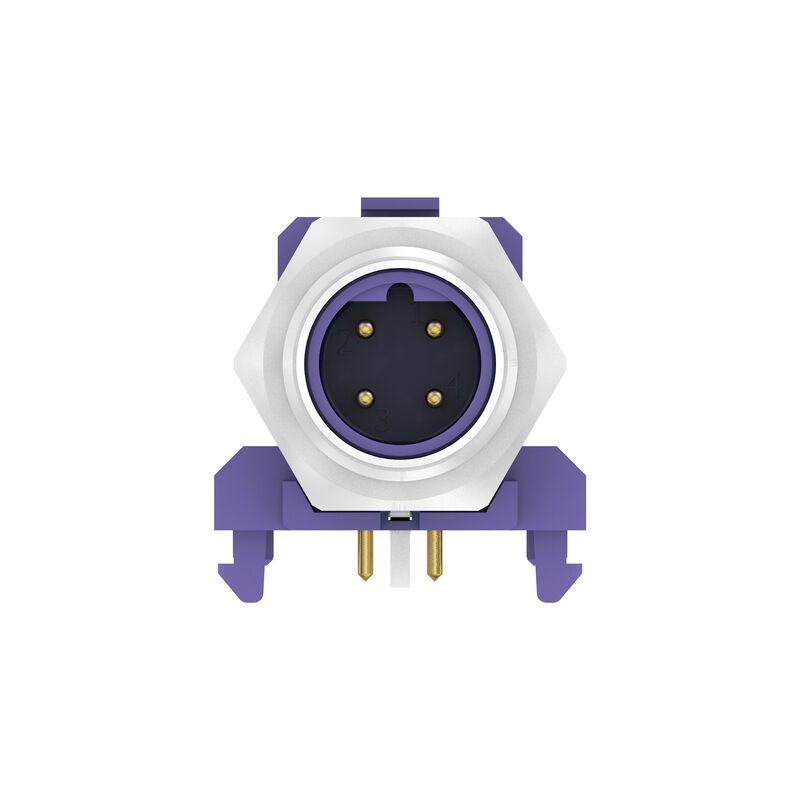

Product image
SAIEW-M12SB-4-HTL
Product image
SAIEW-M12SB-4-HTL
Front panel section
SAIEW-M12SB-4-HTL
Pole scheme
M12 = B-coded

SAIEW-M12SB-4-HTL

Built-in plugs, M12, Mounting thread: M 12, Number of poles: 4, Strand / cable length:

Ürün No. 2424350000
Veri sayfasını indir Engineering Support Product Downloads
İlgili ürünler 11
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical data of PCB plug-in connector General Info Material data System parameters Classifications

Approvals

ROHS
Conform

General ordering data

Version
Built-in plugs, M12, Mounting thread: M 12, Number of poles: 4, Strand / cable length:
Order No.
2424350000
Type
SAIEW-M12SB-4-HTL
GTIN (EAN)
4050118432428
Кол.
10 adet

Dimensions and weights

Nettovikt
8,9 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
0ea6d931-f9e9-40a6-89d9-8d67103189d3

Technical data of PCB plug-in connector

Coding
B-coded
Housing surface
nickel-plated
Housings
M12 pin
Mounting thread
M12
Number of poles
4
Shield connection
Yes
Type of mounting
Rear panel mounting
Nominal voltage
250 V
Nennspannung
250 V
Corrente nominale
4 A
Corrente nominale
4 A
Temperature range
-30…80 °C
Protection degree
IP67
Contact surface
Au (Gold)
Housing main material
CuZn
nickel-plated
Соединительная резьба
M12
Tightening torque
M12: 0.8 Nm
Monteringsgänga
M 12
Mounting torque
  • max.:
    1,2 Nm
Rozpětí utahovacího momentu instalace
1.2 Nm
Mounting onto the PCB
Dip solder
Insulation resistance
100 MΩ
Pollution severity
3 (2 within the sealed area)
Plugging cycles
≥ 100
Contact material
Cu-alloy
Lock nut material
Nickel-plated CuZn
Material of the flange-mounted housing
Nickel-plated CuZn

General Info

Number of poles
4
Housing main material
CuZn
nickel-plated
Connection thread
M12
Contact material
Cu-alloy
Contact surface
Au (Gold)
Type of mounting
Rear panel mounting
Protection degree
IP67
Plugging cycles
≥ 100

Material data

Contact material
Cu-alloy
Contact surface
Au (Gold)

System parameters

Mounting onto the PCB
Dip solder
Insulation resistance
100 MΩ
Number of poles
4
Pin series quantity
1
Plugging cycles
≥ 100
Protection degree
IP67

Classifications

ETIM 8.0
EC003568
ETIM 9.0
EC003568
ETIM 10.0
EC003568
ECLASS 14.0
27-44-01-10
ECLASS 15.0
27-44-01-10
