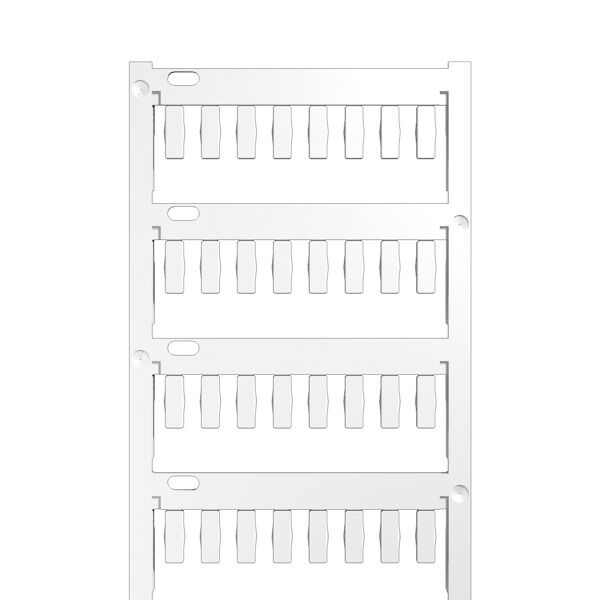

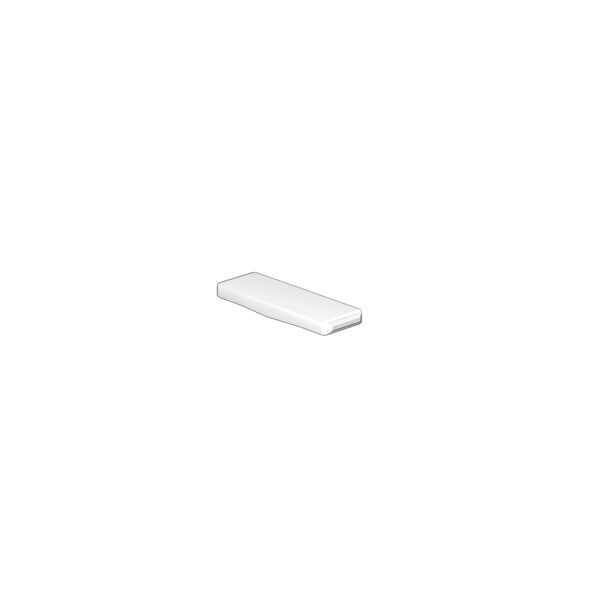

TM-I, Insert markers, 1.3 - 16 mm, 12 x 4 mm, white

Produkt ID 1434760000
Download datablad Engineering-support Produktdownloads
Er tilbehør til 4 Anvendte produkter 8
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Conductor and cable markers Classifications

Approvals

ROHS
Conform

General ordering data

Ausfuehrung
TM-I, Insert markers, 1.3 - 16 mm, 12 x 4 mm, white
Best.-Nr.
1434760000
Type
TM-I 12 MC NE WS V0
GTIN (EAN)
4050118239508
Qty.
320 Styk

Dimensions and weights

Depth
1,7 mm
Depth (inches)
0,067 inch
Height
12 mm
Height (inches)
0,472 inch
Width
4 mm
Width (inches)
0,157 inch
Net weight
0,21 g

Temperatures

Gama de temperaturas de servicio
-50...120 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Product Carbon Footprint
  • Cradle to gate:
    0.003 kg CO2 eq.

General data

Basic material
Polyamide 66
Bredd
4 mm
Colour
white
compatible printer
[PRINTJET CONNECT](~/p/2715590000)
Halogen
No
Ilość na arkusz
64
Material colour according to resistance code
9
Number of markers per combination
1 MultiCard = Insert markers
Number of markers per packaging unit
  • Form of supply:
    MultiCard
Operating temperature range
-50...120 °C
Operating temperature range, max.
120 °C
Operating temperature range, min.
-50 °C
Printed characters
neutral
Recommended industries
Transportation
Machinery
UL 94 flammability rating
V-0
Вид печати
neutral

Conductor and cable markers

Conductor O.D., max.
16 mm
Diametro esterno del conduttore, min.
1,3 mm
Halogén
No
컨덕터 O.D.
1.3 - 16 mm

Classifications

ETIM 8.0
EC001530
ETIM 9.0
EC001530
ETIM 10.0
EC001530
ECLASS 14.0
27-28-11-02
ECLASS 15.0
27-28-11-02
