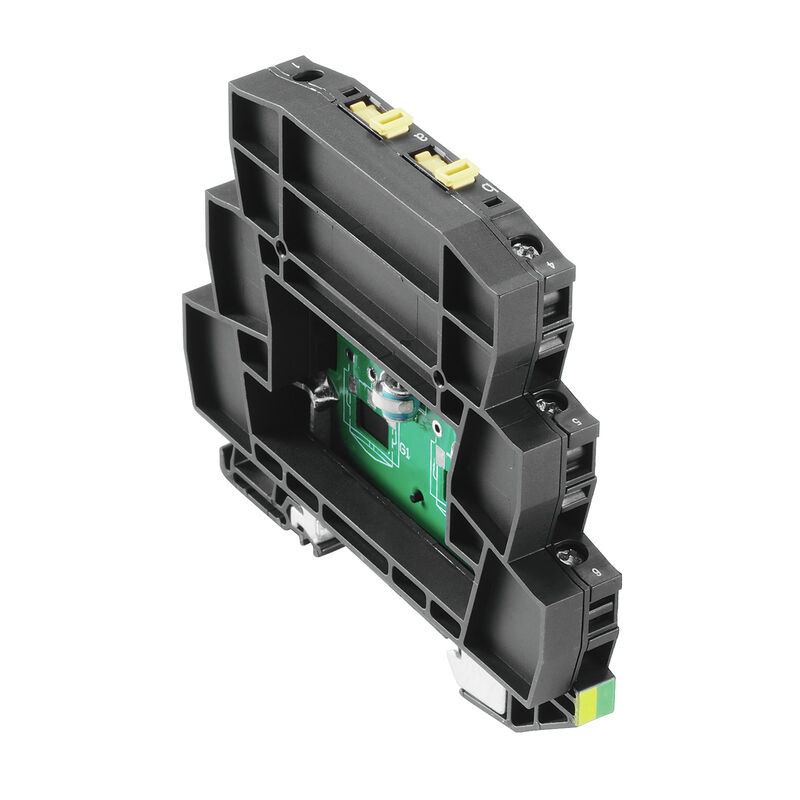

Surge protection for instrumentation and control, Surge protection for measurement and control

Item No. 1064890000
Open in Configurator
Download data sheet Engineering Support Product Downloads
Accessories 3 Related products 8
Approvals General ordering data Dimensions and weights Temperatures Probability of failure Environmental Product Compliance Rated data UL CSA protection data General data Insulation coordination acc. to EN 50178 Rated data IEC / EN Further details of approvals Connection data Electrical data General data Ratings IECEx/ATEX/cUL Important note Classifications Tender specification sheets

Approvals

Dopuszczenia
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319227/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319238/-S800/-T1z1mm-S80)
ROHS
Conform

General ordering data

Version
Surge protection for instrumentation and control, Surge protection for measurement and control
Nr zam.
1064890000
Typ
VSSC6TRGDT110VAC/DC10KA
GTIN (EAN)
4032248830145
Qty.
10 items

Dimensions and weights

깊이
81 mm
Depth (inches)
3.189 inch
Wysokość
88.5 mm
Height (inches)
3.484 inch
Width
6.2 mm
Width (inches)
0.244 inch
Net weight
43.6 g

Temperatures

Температура хранения
-40 °C...80 °C
Drifttemperatur
-40 °C...80
Humidity
5...96 %

Probability of failure

SIL in compliance with IEC 61508
3
MTTF
11,416 a
SFF
100 %
λges
10
PFH in 1*10-9 per hour
0

Environmental Product Compliance

RoHS-kompatibilitetsstatus
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Rated data UL

UL certificate
[UL Zertifikat](PDF/E311081VOL1SEC3.pdf)

CSA protection data

Gas group C
IIB
Gas group D
IIA
Gas groups A, B
IIC
Input voltage, max. Ui
195 V
Input-current, max. II
12 A
Internal capacity, max. CI
0 nF
Internal inductance, max. LI
0 µH

General data

Colour
black
Design
Terminal
Isolating function
Yes
Mounting rail
TS 35
Optical function display
No
Protection degree
IP20
Segment
Measurement - Monitoring - Setting
Testing option
Functional screw with test plug receptacle, connections 1, 2, 4, 5
UL 94 flammability rating
V-0
Version
Surge protection for measurement and control

Insulation coordination acc. to EN 50178

Pollution severity
2
Surge voltage category
III

Rated data IEC / EN

Bleskový testovací proud, Iimp (10/350 µs) vodič-PE
1 kA
Capacitance
4.2 nF
Courant de fuite In (8/20 µs) fil-PE
2.5 kA
Discharge current, max. (8/20 µs)
20 kA
Levezetőáram Imax. (8/20µs) vezeték-PE
10 kA
Lightning test current Iimp (10/350 µs)
1 kA
Max. continuous voltage, Uc (AC)
138 V
Max. continuous voltage, Uc (DC)
195 V
Number of poles
1
Overload - failure mode
Modus 2
Rated current IN
12 A
Rated load current IL
12 A
Rated voltage (AC)
110 V
Rated voltage (DC)
156 V
Requirements category acc. to IEC 61643-21
C2
C3
D1
Resistenza alla corrente impulsiva C2
2.5 kA 8/20 µs 5 kV 1.2/50 µs
Standards
IEC 61643-21
Surge current-carrying capacity C3
50 A 10/1000 μs
Surge current-carrying capacity D1
1 kA 10/350 μs
Voltage type
AC/DC
Volume resistance
<0.1 Ω

Further details of approvals

GOST certificate
[GOST-Zertifikat](PDF/7950_n1-n4.pdf)

Connection data

Stripping length
10 mm
Type of connection
Screw connection
Tightening torque, min.
0.5 Nm
Tightening torque, max.
0.8 Nm
Clamping range, min.
0.5 mm²
4 mm²
Wire cross-section, solid, min.
0.5 mm²
Wire cross-section, solid, max.
6 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), min.
0.5 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), max.
4 mm²
Connection cross-section, stranded, min.
0.5 mm²
Connection cross-section, stranded, max.
4 mm²

Electrical data

Voltage type
AC/DC

General data

Number of poles
1
Protection degree
IP20
Colour
black

Ratings IECEx/ATEX/cUL

cUL certificate
[cUL Certificate](pdf/VSSC.PDF)

Important note

Produktinformation
Mode 2: State where the voltage-limiting part of the SPD was short-circuited due to a very low impedance within the SPD. The line is inoperable, but the measuring equipment is still protected by means of a short-circuit.

Classifications

ETIM 8.0
EC000943
ETIM 9.0
EC000943
ETIM 10.0
EC000943
ECLASS 14.0
27-17-15-01
ECLASS 15.0
27-17-15-01

Tender specification sheets

Long specification

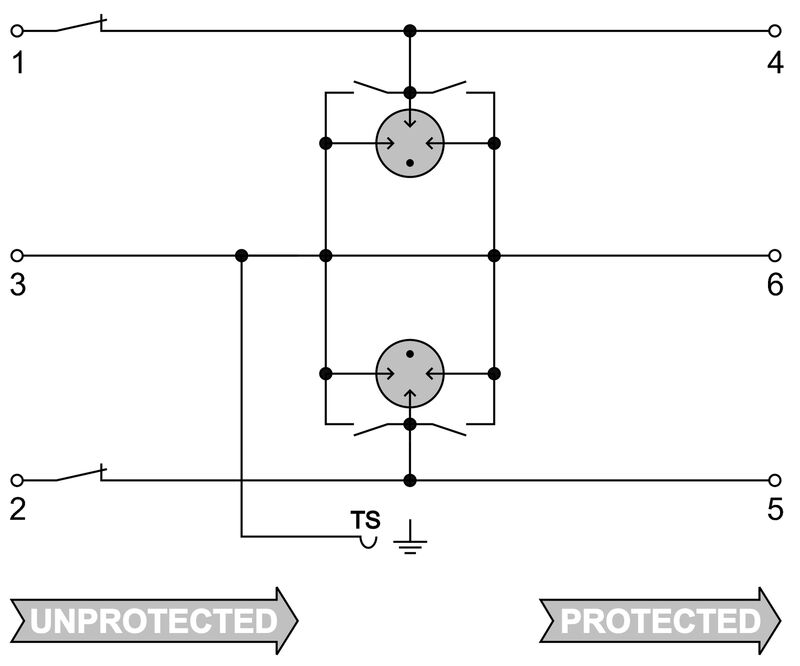

Feed-through terminal, 12.4mm wide with sparkover gap between the two signal lines and the mounting rail potential, TS 35 contact base.Each signal path can be opened using an isolator.A signal with max. 12A can be protected here. When the terminal is fitted, a simultaneous electrically conducting contact is made between the mounting rail (earth) and the reference potential (ground) of the protection circuit in the terminal. Optical identification of the terminal based on the type of protected switching and the voltage level. The terminal can be labelled or marked.
Short specification
Feed-through terminal with sparkover gaps (GDT) between two signal lines and mounting rail potential.Each signal path can be opened using an isolator. TS 35 contact base. Version: 110 V UC 10kA
