Primary current: 250 A, Secondary current max.: 1 A, Load: 5 VA, Tolerance class: 0,5

Tuotteen tunnus 3008270000
Lataa tietosivu Product Downloads
Samankaltaiset tuotteet 10
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Electrical attributes General data Technical properties Insulation coordination Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
ROHS
Conform

General ordering data

Version
Primary current: 250 A, Secondary current max.: 1 A, Load: 5 VA, Tolerance class: 0,5
Order No.
3008270000
Type
CMA-A30-250-1A-0,5-5VA
GTIN (EAN)
4099986909526
Qty.
1  items

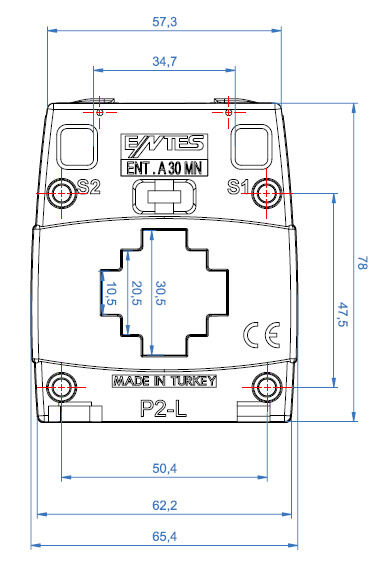

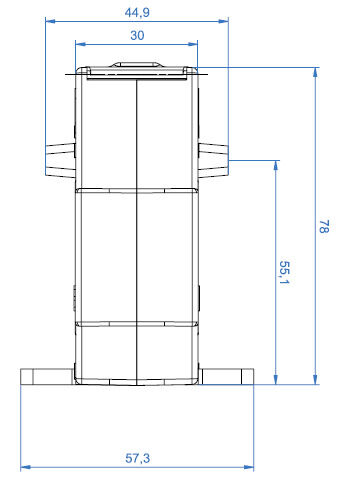

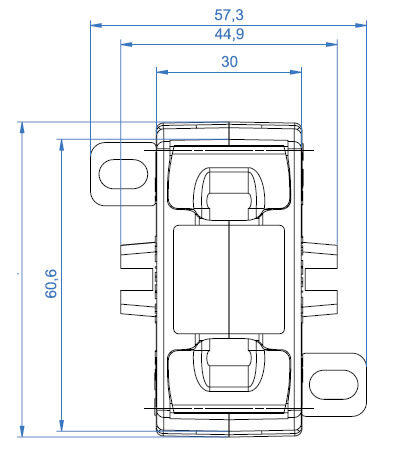

Dimensions and weights

Depth
45  mm
Depth (inches)
1,772  inch
Height
78  mm
Height (inches)
3,071  inch
Width
67  mm
Width (inches)
2,638  inch
Net weight
250  g

Temperatures

Operating temperature
-5 °C...40 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant
REACH SVHC
No SVHC above 0.1 wt%

Electrical attributes

Load
5  VA
Primary current
250  A
Secondary current
0...1 A
Tolerance class
0,5

General data

Manufacturer
ENTES Elektronik

Technical properties

Nominal frequency
50 / 60 Hz
Protection degree
IP20
Thermal rated continuous current Ithermal
1.2 x Irated

Insulation coordination

Insulation voltage
3 kV / 1 min
Tolerance class
0,5

Classifications

ETIM 6.0
EC002048
ETIM 7.0
EC002048
ETIM 8.0
EC002048
ETIM 9.0
EC002048
ETIM 10.0
EC002048
ECLASS 9.0
27-21-09-02
ECLASS 9.1
27-21-09-02
ECLASS 10.0
27-21-09-02
ECLASS 11.0
27-21-09-02
ECLASS 12.0
27-21-09-02
ECLASS 13.0
27-21-09-02
ECLASS 14.0
27-21-09-02
ECLASS 15.0
27-21-09-02
