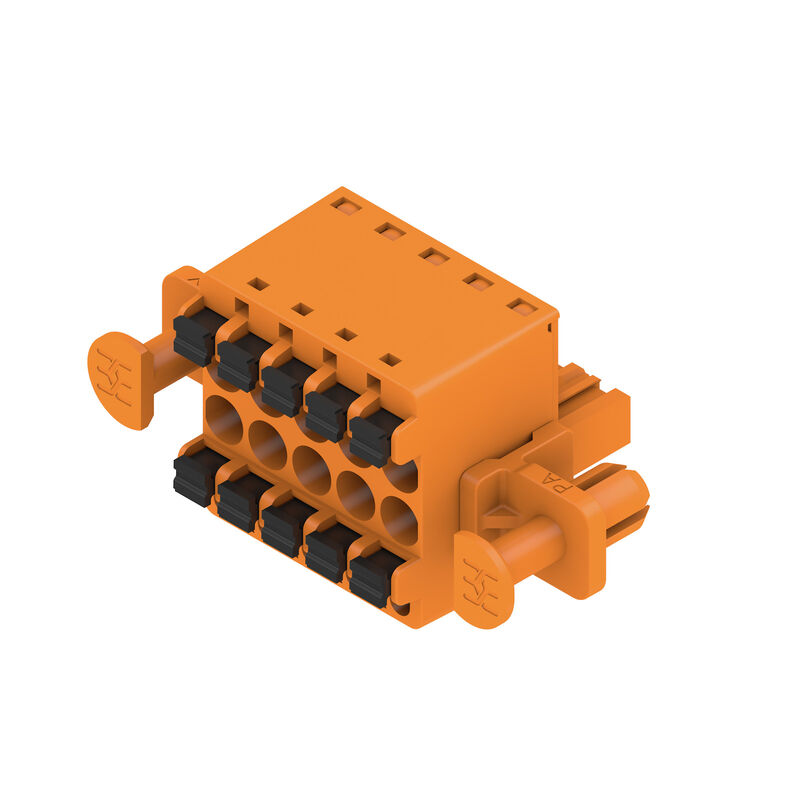

BLDF 5.08/05/180DF SN OR BX
Product image
BLDF 5.08/05/180DF SN OR BX
Product image
BLDF 5.08/05/180DF SN OR BX

BLDF 5.08/05/180DF SN OR BX

Bu ürün henüz mevcut değil.

NYÁK dugaszoló csatlakozó, hüvelyes csatlakozó, 5.08 mm, Pólusszám: 5, 180°, PUSH IN, működtető gombbal, Rögzítési tartomány, névleges csatlakozás, max.: 3.31 mm², Doboz

Ürün No. 3109700000
Veri sayfasını indir Engineering Support
İlgili ürünler 7
Approvals Általános rendelési adatok Dimensiones y pesos Termékek környezetvédelmi megfelelősége Paramètres système Material data Conductores aptos para conexión Datos nominales conformes a IEC Rated data acc. to CSA Rated data acc. to UL 1059 Packing Cross-connector rated data according to DIN IEC 중요 참고 사항 Classifications

Approvals

ROHS
Conform

Általános rendelési adatok

Version
NYÁK dugaszoló csatlakozó, hüvelyes csatlakozó, 5.08 mm, Pólusszám: 5, 180°, PUSH IN, működtető gombbal, Rögzítési tartomány, névleges csatlakozás, max.: 3.31 mm², Doboz
Order No.
3109700000
Type
BLDF 5.08/05/180DF SN OR BX
GTIN (EAN)
4099987187725
Qty.
24 adet
Product data
IEC: 400 V / 20.8 A / 0.2 - 2.5 mm²
UL: 300 V / 18.5 A / AWG 12 - AWG 26
Packaging
Box

Dimensiones y pesos

Depth
28,3 mm
Depth (inches)
1,114 inch
Height
24,7 mm
Height (inches)
0,972 inch
Width
54,6 mm
Width (inches)
2,15 inch
Net weight
16,385 g

Termékek környezetvédelmi megfelelősége

RoHS Compliance Status
Megfelel, kivétel nélkül
REACH SVHC
No SVHC above 0.1 wt%

Paramètres système

Product family
OMNIMATE Signal - série BL/SL 5.08
Type of connection
Полевое соединение
Wire connection method
PUSH IN with push button
Pitch in mm (P)
5,08 mm
Pitch in inches (P)
0,2 "
Conductor outlet direction
180°
Number of poles
5
L1 in mm
20,32 mm
L1 in inches
0,8 "
Number of rows
1
Pin series quantity
1
Rated cross-section
2,5 mm²
Touch-safe protection acc. to DIN VDE 57 106
Safe from finger touch
Touch-safe protection acc. to DIN VDE 0470
IP20 plugged/ IP10 unplugged
Protection degree
IP20
Volume resistance
≤5 mΩ
Can be coded
Yes
Stripping length
10 mm
Screwdriver blade
0.6 x 3.5
Screwdriver blade standard
DIN 5264
Plugging cycles
25
Plugging force/pole, max.
9,5 N
Pulling force/pole, max.
7,5 N

Material data

Insulating material
PBT
Colour
주황색
Colour chart (similar)
RAL 2000
Insulating material group
IIIa
Comparative Tracking Index (CTI)
≥ 200
UL 94 flammability rating
V-0
Contact material
Cu-alloy
Contact surface
tinned
Layer structure of plug contact
4...8 µm Sn hot-dip tinned
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
100 °C
Temperature range, installation, min.
-30 °C
Temperature range, installation, max.
100 °C

Conductores aptos para conexión

Clamping range, min.
0,13 mm²
3,31 mm²
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section AWG, max.
AWG 12
Solid, min. H05(07) V-U
0,2 mm²
Solid, max. H05(07) V-U
2,5 mm²
Flexible, min. H05(07) V-K
0,2 mm²
Flexible, max. H05(07) V-K
2,5 mm²
w. plastic collar ferrule, DIN 46228 pt 4, min.
0,25 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.
2,5 mm²
w. wire end ferrule, DIN 46228 pt 1, min.
0,25 mm²
w. wire end ferrule, DIN 46228 pt 1, max.
2,5 mm²
Plug gauge in accordance with EN 60999 a x b; ø
2.8 mm x 2.0 mm
Reference text
The outside diameter of the plastic collar should not be larger than the pitch (P)
Length of ferrules is to be chosen depending on the product and the rated voltage.

Datos nominales conformes a IEC

testado según la norma
IEC 60664-1
IEC 61984
Rated current, min. number of poles (Tu=20°C)
20,8 A
Rated current, max. number of poles (Tu=20°C)
17,4 A
Rated current, min. number of poles (Tu=40°C)
17,9 A
Rated current, max. number of poles (Tu=40°C)
14,9 A
Rated current cross-connector, min. number of poles (Ta=20°C)
28,1 A
Rated current cross-connector, max. number of poles (Ta=20°C)
23,3 A
Rated current cross-connector, min. number of poles (Ta=40°C)
24,2 A
Rated current cross-connector, max. number of poles (Ta=40°C)
19,9 A
Rated voltage for surge voltage class / pollution degree II/2
400 V
Rated voltage for surge voltage class / pollution degree III/2
320 V
Rated voltage for surge voltage class / pollution degree III/3
250 V
Rated impulse voltage for surge voltage class/ pollution degree II/2
4 kV
Rated impulse voltage for surge voltage class/ pollution degree III/2
4 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3
4 kV
Short-time withstand current resistance
3 x 1s with 120 A

Rated data acc. to CSA

Rated voltage (Use group B / CSA)
300 V
Rated voltage (Use group D / CSA)
300 V
Rated current (Use group B / CSA)
18,5 A
Rated current (Use group D / CSA)
10 A
Wire cross-section, AWG, min.
AWG 12
Wire cross-section, AWG, max.
AWG 26

Rated data acc. to UL 1059

Rated voltage (Use group B / UL 1059)
300 V
Rated voltage (Use group D / UL 1059)
300 V
Rated current (Use group B / UL 1059)
18,5 A
Rated current (Use group D / UL 1059)
10 A
Wire cross-section, AWG, min.
AWG 12
Wire cross-section, AWG, max.
AWG 26

Packing

Packaging
Boîte
VPE length
351 mm
VPE width
135 mm
VPE height
38 mm

Cross-connector rated data according to DIN IEC

Rated current cross-connector, max. number of poles (Ta=20°C)
23,3 A
Rated current cross-connector, max. number of poles (Ta=40°C)
19,9 A
Rated current cross-connector, min. number of poles (Ta=20°C)
28,1 A
Rated current cross-connector, min. number of poles (Ta=40°C)
24,2 A

중요 참고 사항

IPC conformity
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notes
  • Additional variants on request
  • Gold-plated contact surfaces on request
  • Rated current related to rated cross-section & min. No. of poles.
  • Wire end ferrule without plastic collar to DIN 46228/1
  • Wire end ferrule with plastic collar to DIN 46228/4
  • P on drawing = pitch
  • Crimping shape "A" for wire end ferrules with PZ 6/5 crimping tool recommended.
  • The test point can only be used as potential-pickup point.
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002638
ETIM 9.0
EC002638
ETIM 10.0
EC002638
ECLASS 14.0
27-46-02-02
ECLASS 15.0
27-46-02-02
